B Pillar Upper Finish Panel - Loose

89ford01

Article No. 89-1-4

TRIM - INTERIOR - "B" PILLAR UPPER FINISH PANEL LOOSE - VEHICLES BUILT BEFORE 9/01/88

FORD: 1988-89 TEMPO

LINCOLN-MERCURY: 1988-89 TOPAZ


ISSUE: A "B" pillar finish panel that comes loose from the door scuff plate may be caused by the "B" pillar panel expanding during temperature changes.

ACTION: Install two (2) trim screws through the "B" pillar panel to hold it to the door scuff plate. Refer to the following procedure for service details.

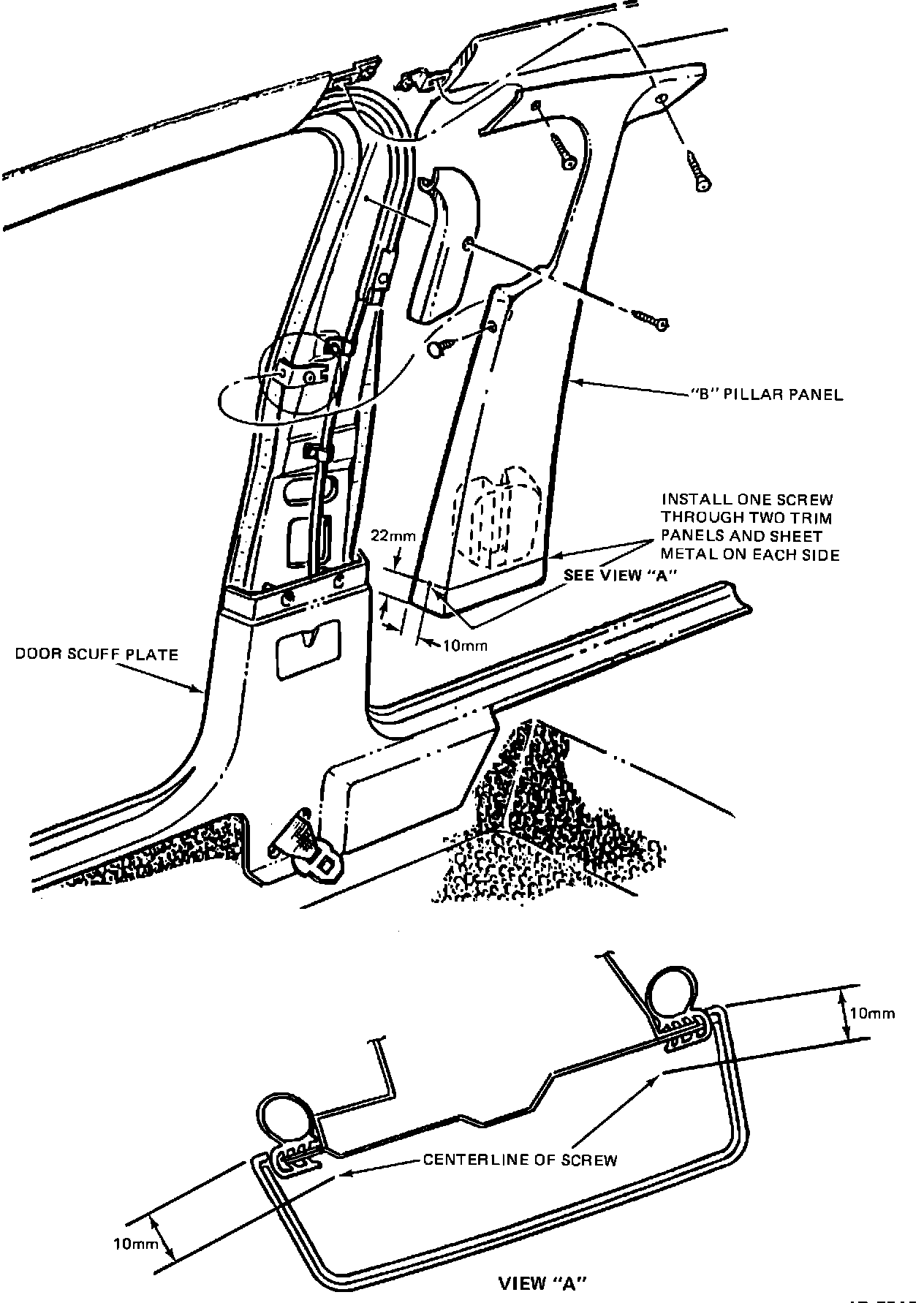

FIGURE 2:

1. Realign the "B" pillar panel to the door scuff plate, Figure 2.

2. Install two (2) trim screws, one on each side of the "B" pillar panel as shown in Figure 2.

3. Repeat Steps 1 and 2 on the other side of the vehicle.

PART NUMBER PART NAME CLASS

N800486-S9 Trim Screw - Package of 20 BM

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: Eligible Under Basic Warranty Coverage
OPERATION: 890104A - Both Sides
TIME: 0.3 Hr.
DLR. CODING: Basic Part No. 7024300
Condition Code: 33
OASIS CODES: 1050, 1051
