FD - Brake On/Off (BOO) Switch
>>
FD - Wiring Diagram
FD - Wiring Diagram

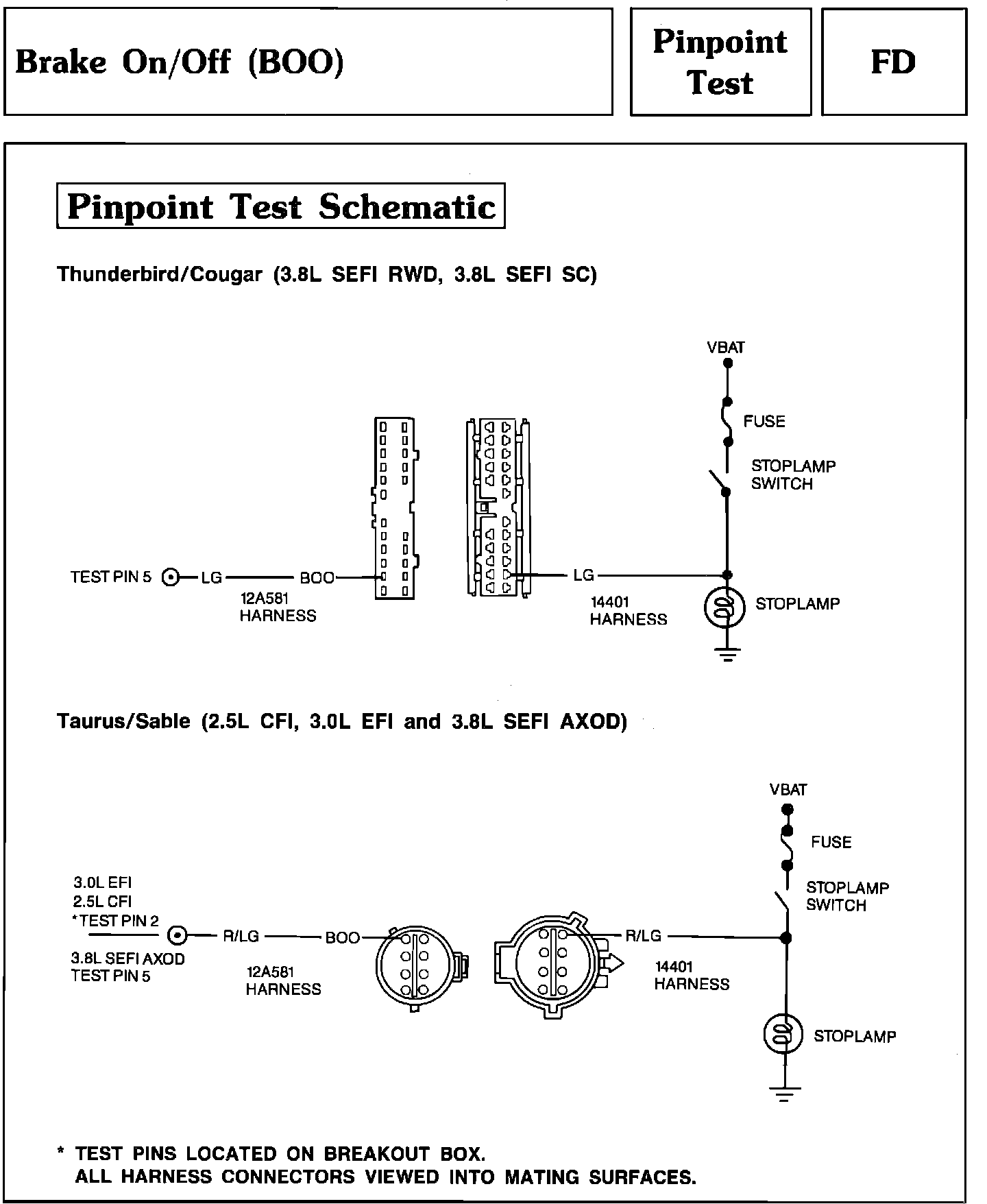

Pinpoint Test FD - Test Schematic:
