Home >> Mercury >> 1989 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> DH - Throttle Position (TP) Sensor >> DH91 - DH92

DH91 - DH92

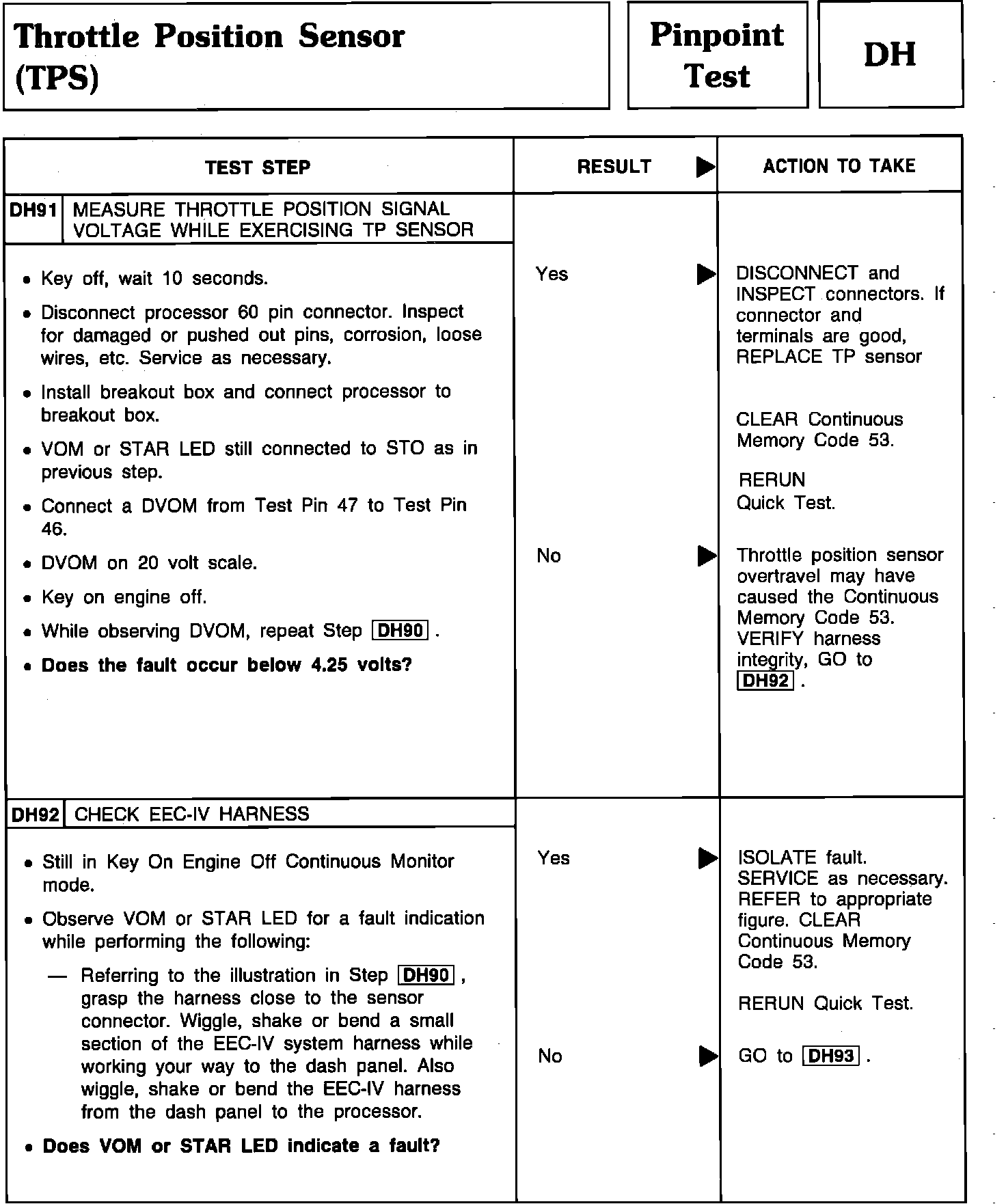

Pinpoint Test DH91 & DH92 - Throttle Position Sensor (TPS):
