DA - Vane Air Temperature Sensor (VAT)
>>
DA94 - DA95
DA94 - DA95

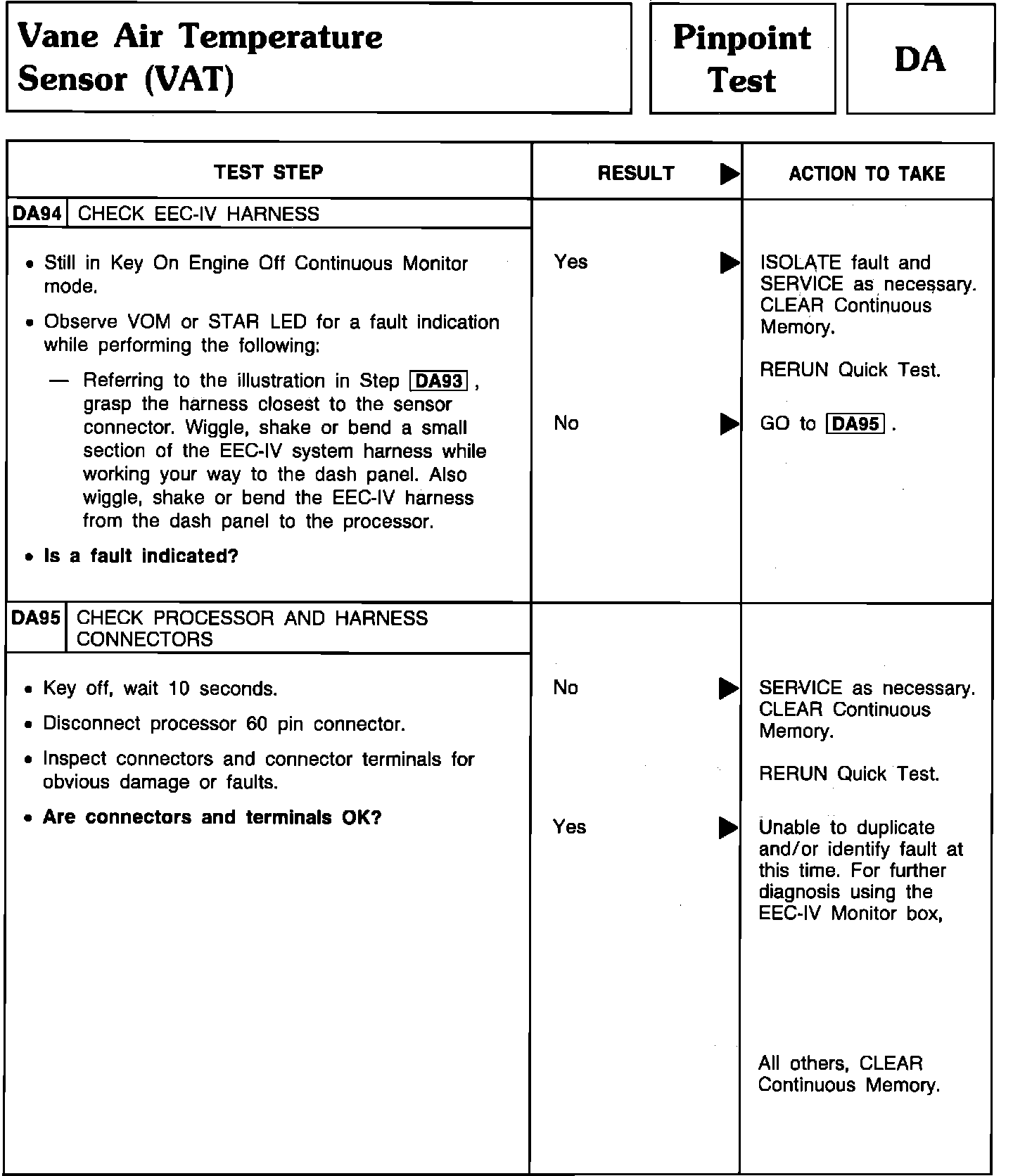

Pinpoint Test DA4 & DA95 - Vane Air Temp. Sensor (VAT):
