Home >> Mercury >> 1989 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> DA - Vane Air Temperature Sensor (VAT) >> DA92 - DA93

DA92 - DA93

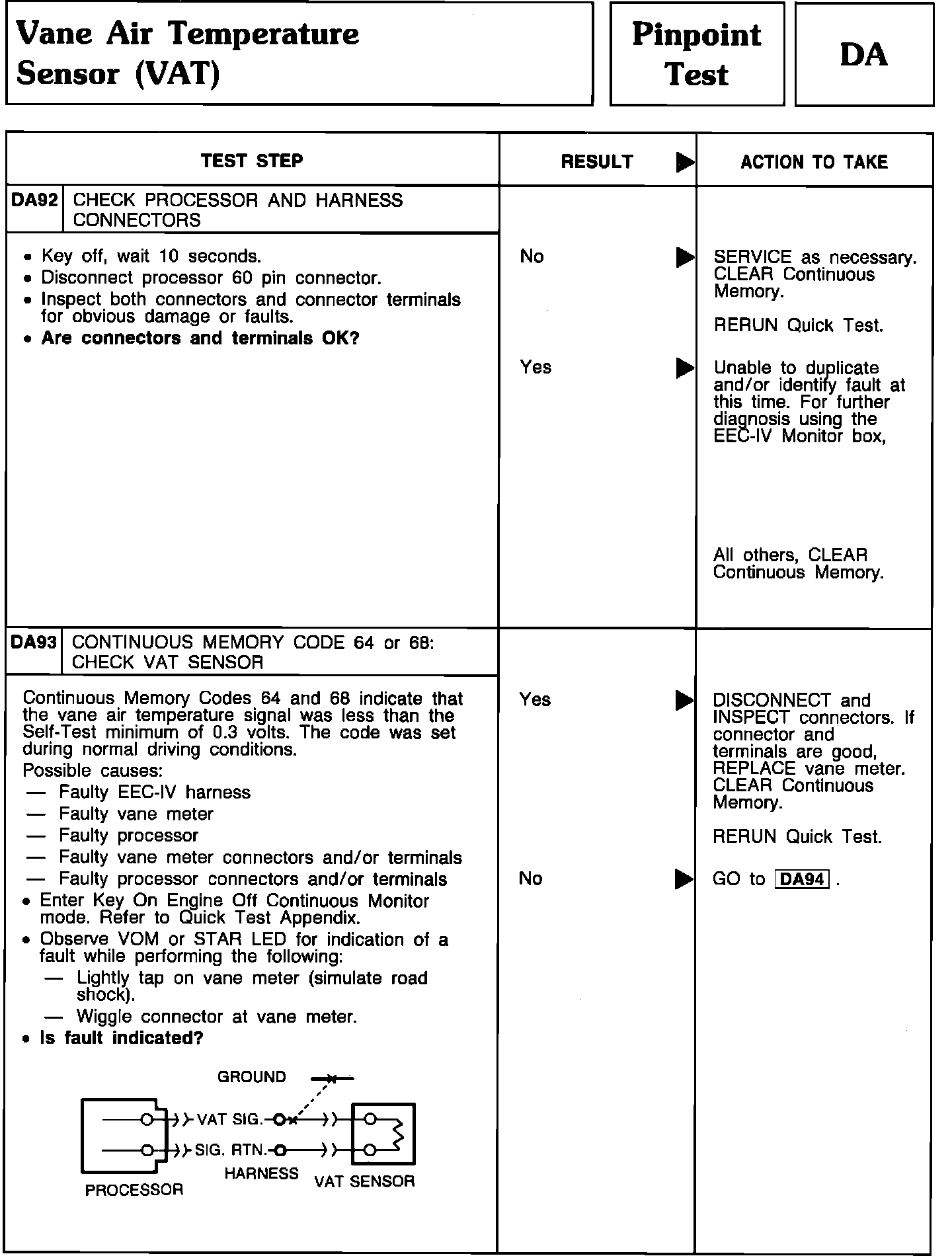

Pinpoint Test DA92 & DA93 - Vane Air Temp. Sensor (VAT):
