Cooling System Circuit Diagram

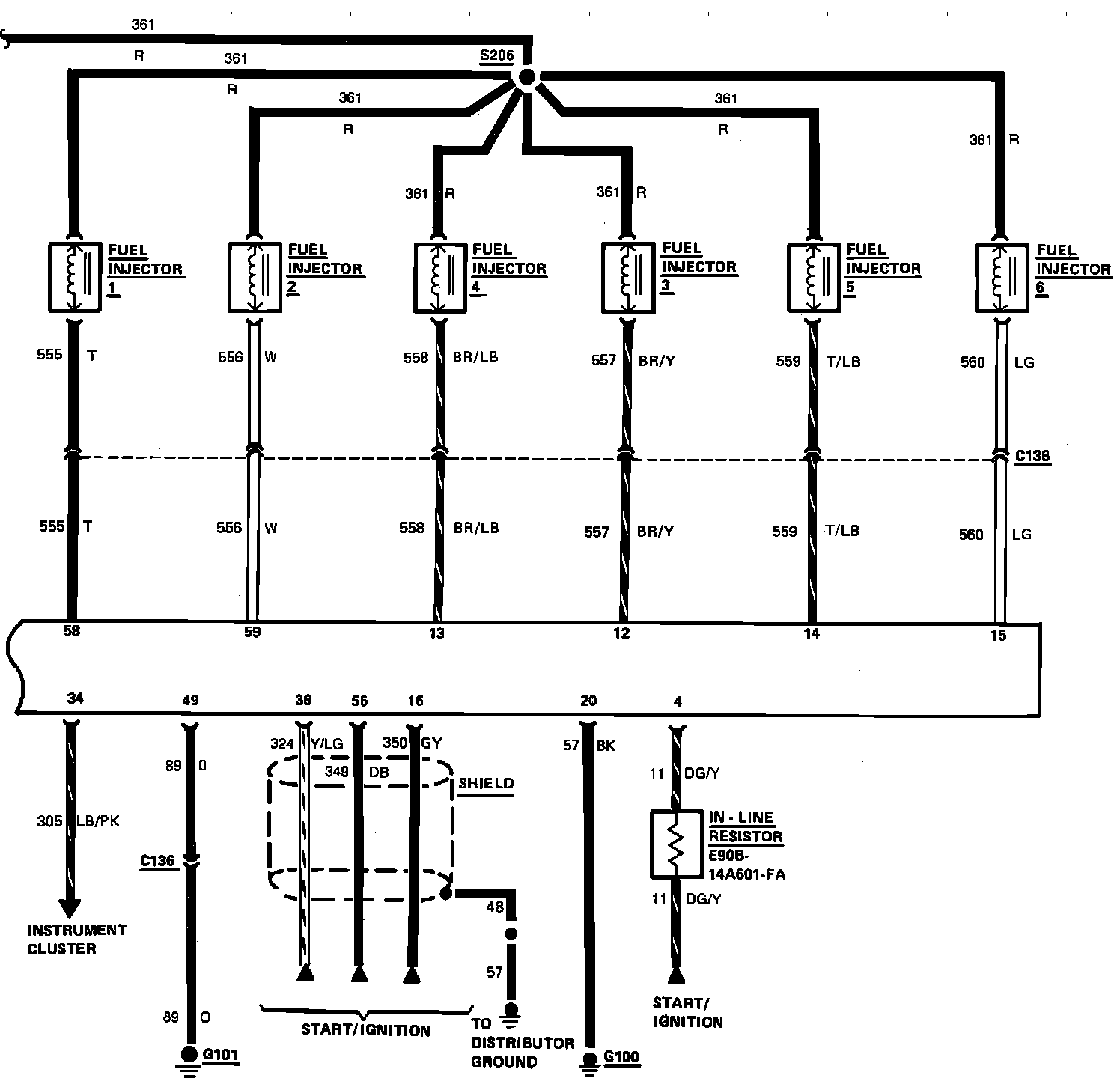

Electronic Engine Control Wiring Circuit:

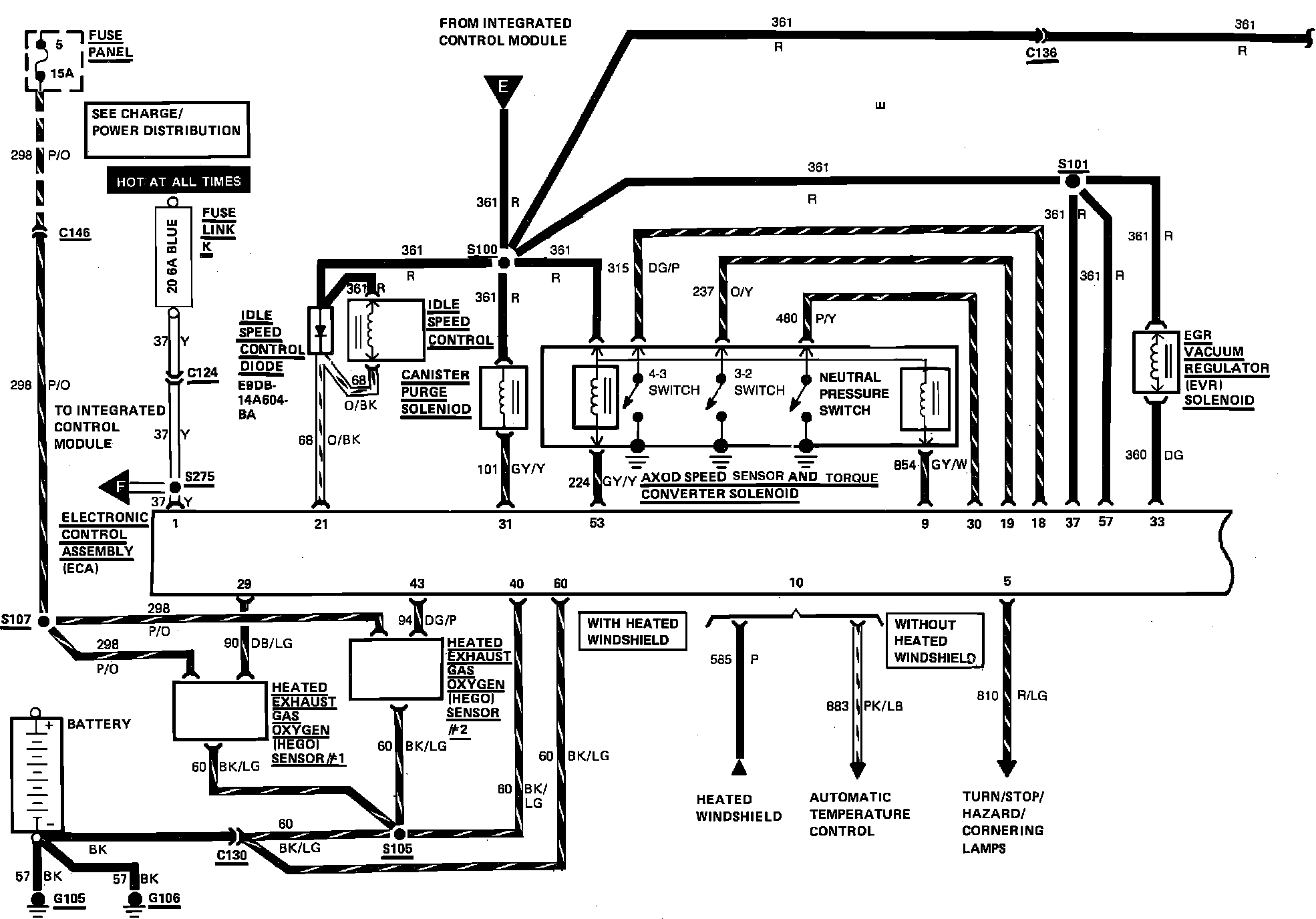

Electronic Engine Control Wiring Circuit:

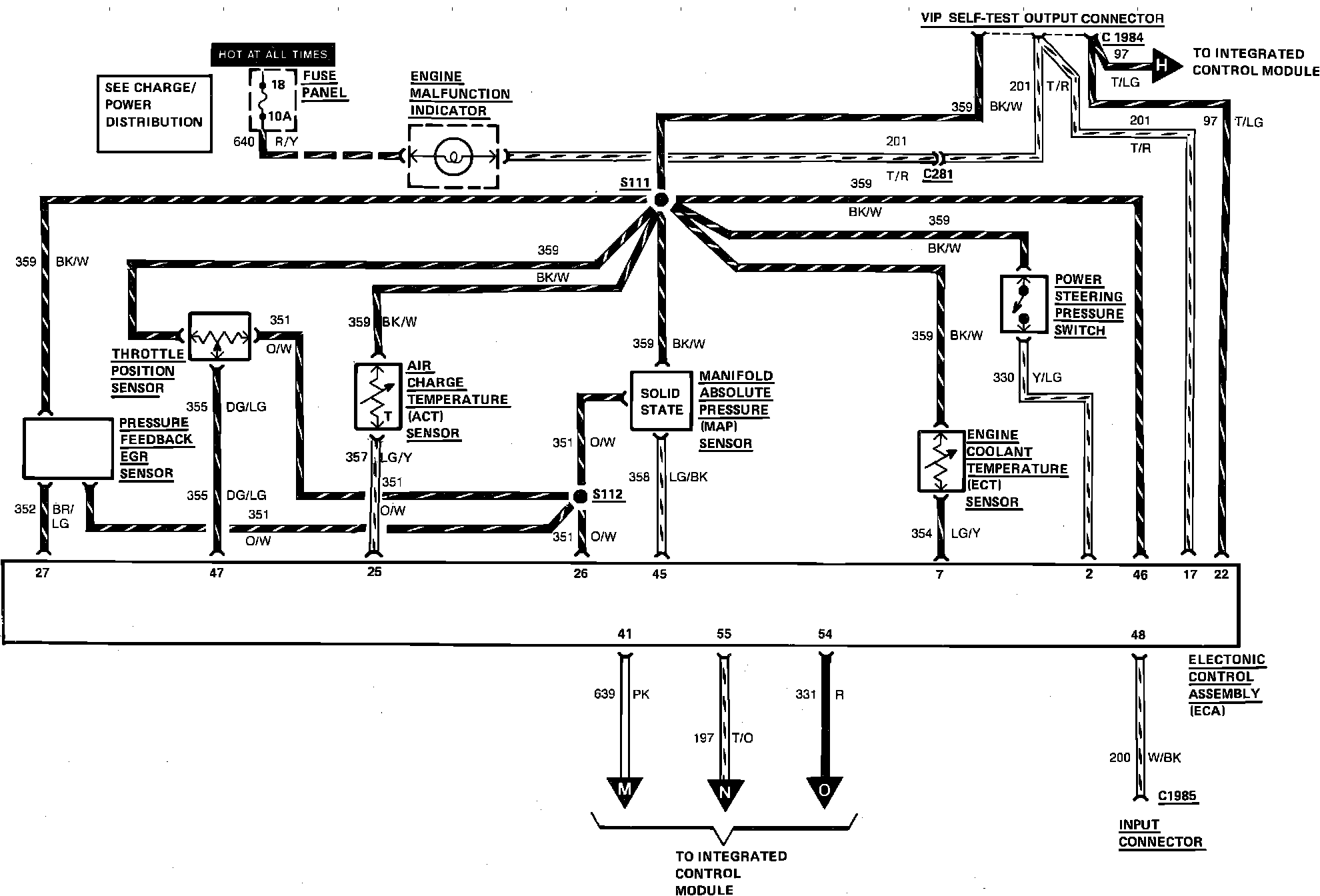

Electronic Engine Control Wiring Circuit:

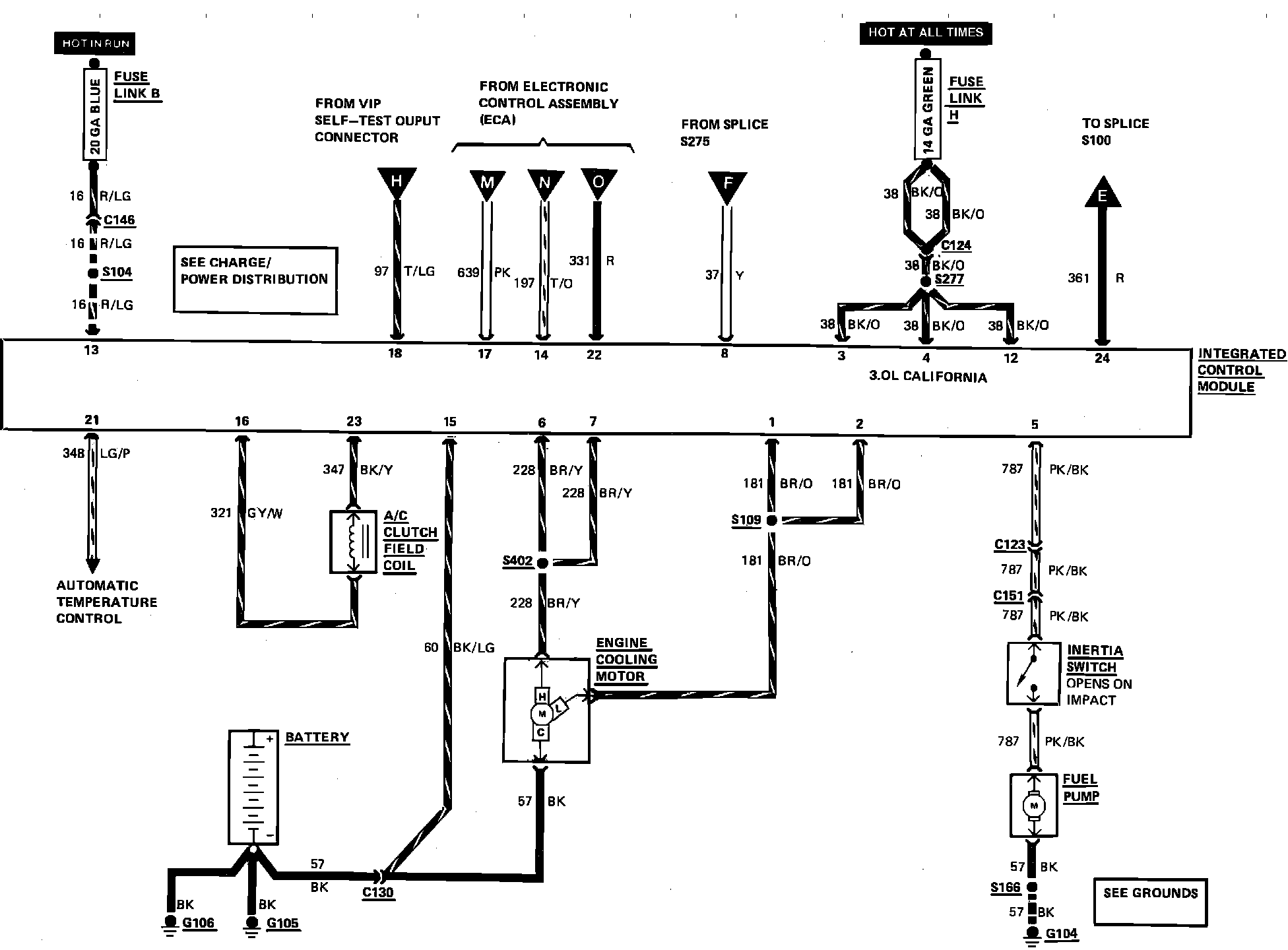

Electronic Engine Control Wiring Circuit:
