Electronic Cluster (With Autolamps)

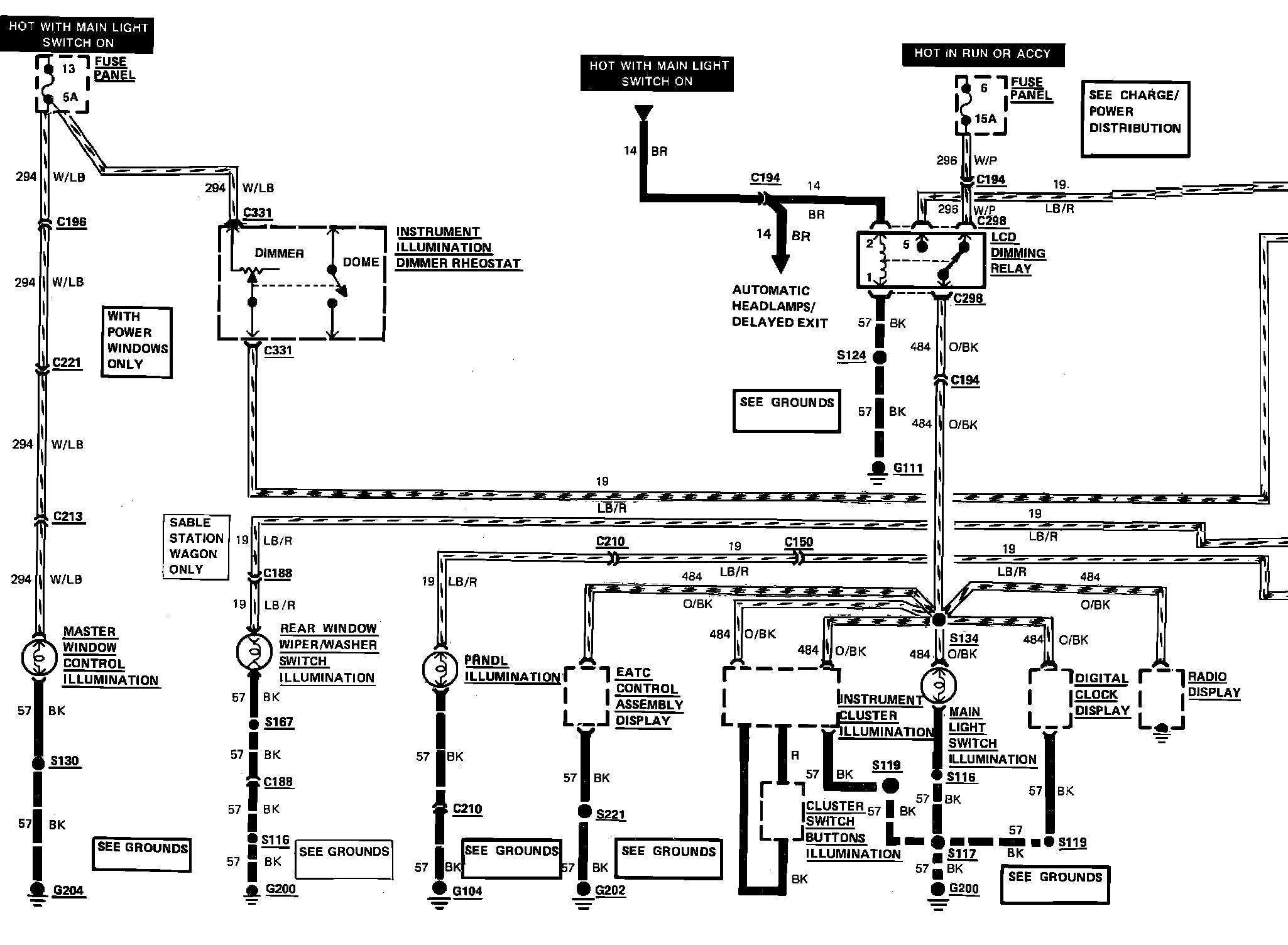

$8�nInstrument Illumination (Electronic Cluster) Wiring Circuit. With Autolamps:
