Less Diagnostic Warning

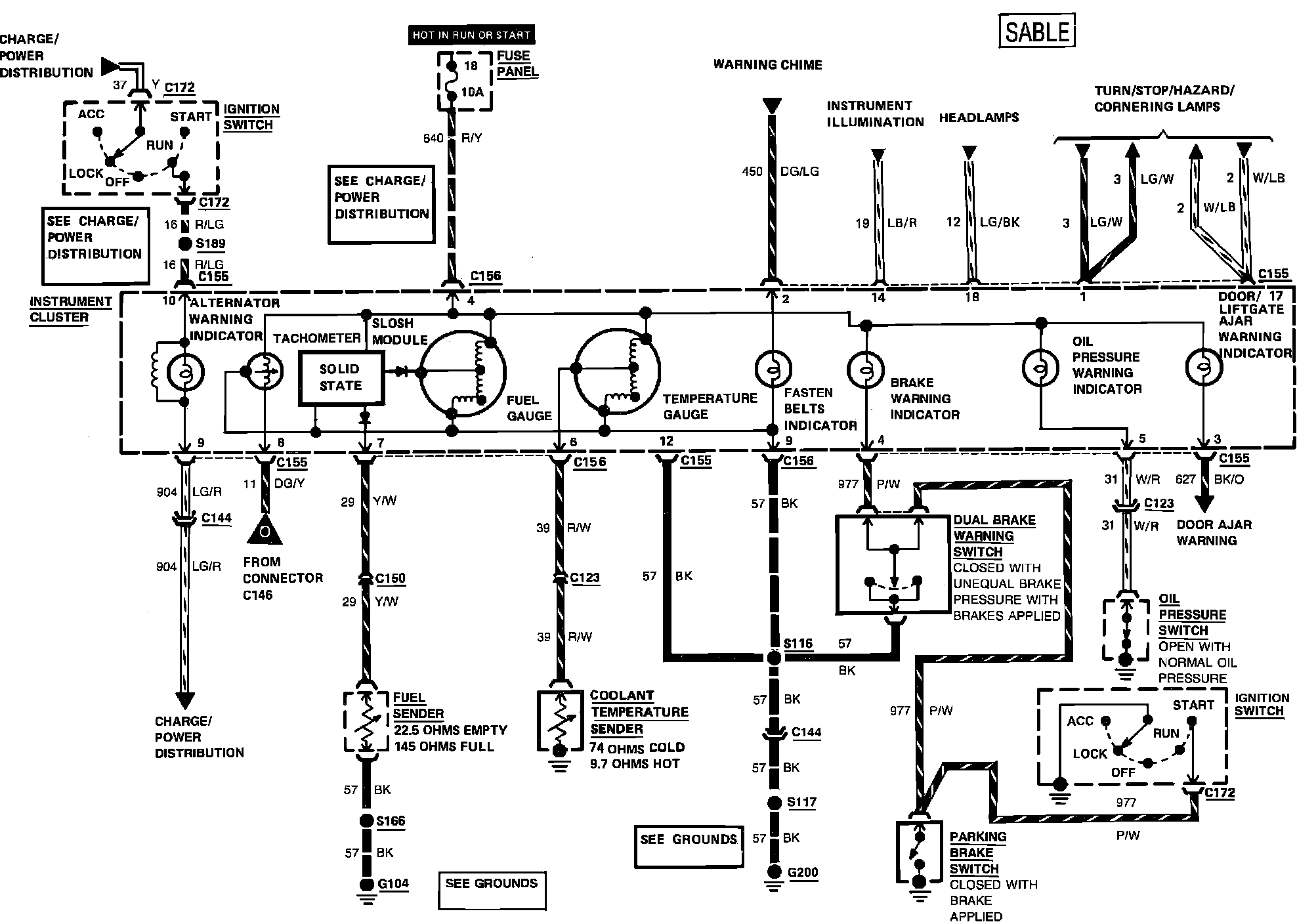

Instrument Cluster (Analog) Wiring Circuit. Less Diagnostic Warning/Warning Indicators:
