Home >> Mercury >> 1989 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Compressor HVAC >> System Diagram

System Diagram

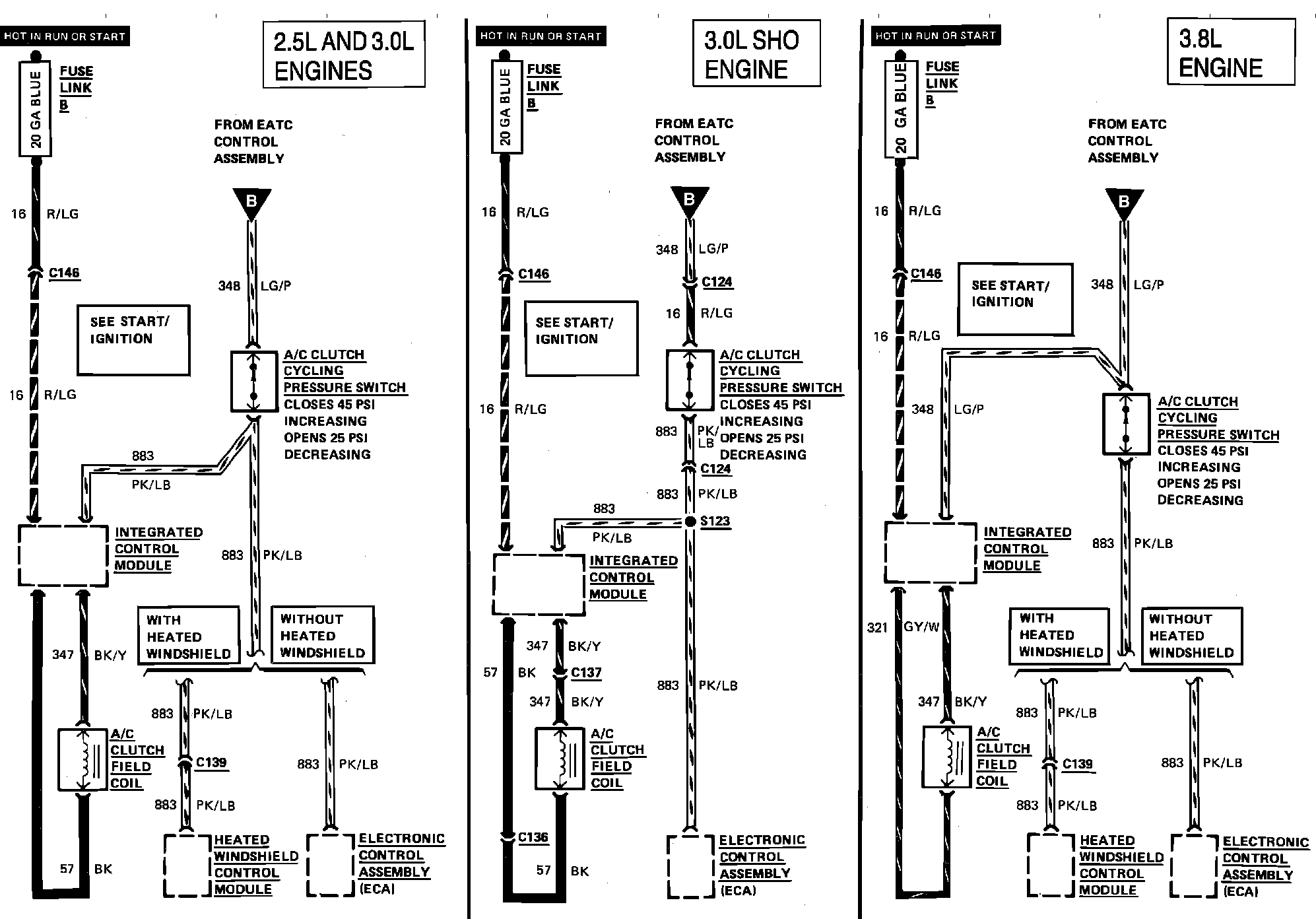

Air Conditioning & Heater Wiring Circuit (With Automatic Temperature Control:
