A: All Electronic Radio Control Functional Test

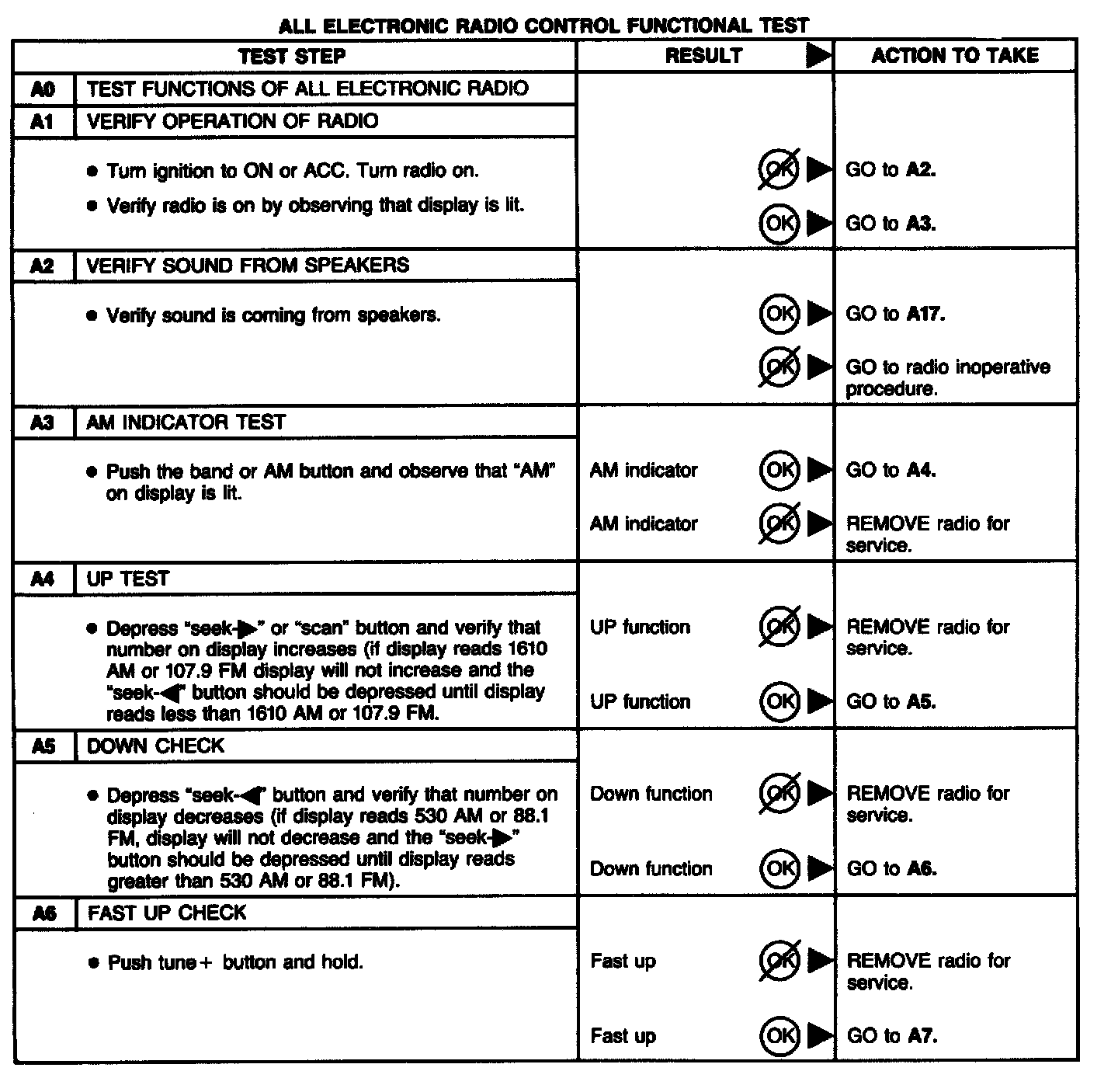

All Elect. Radio Control Functional Test:

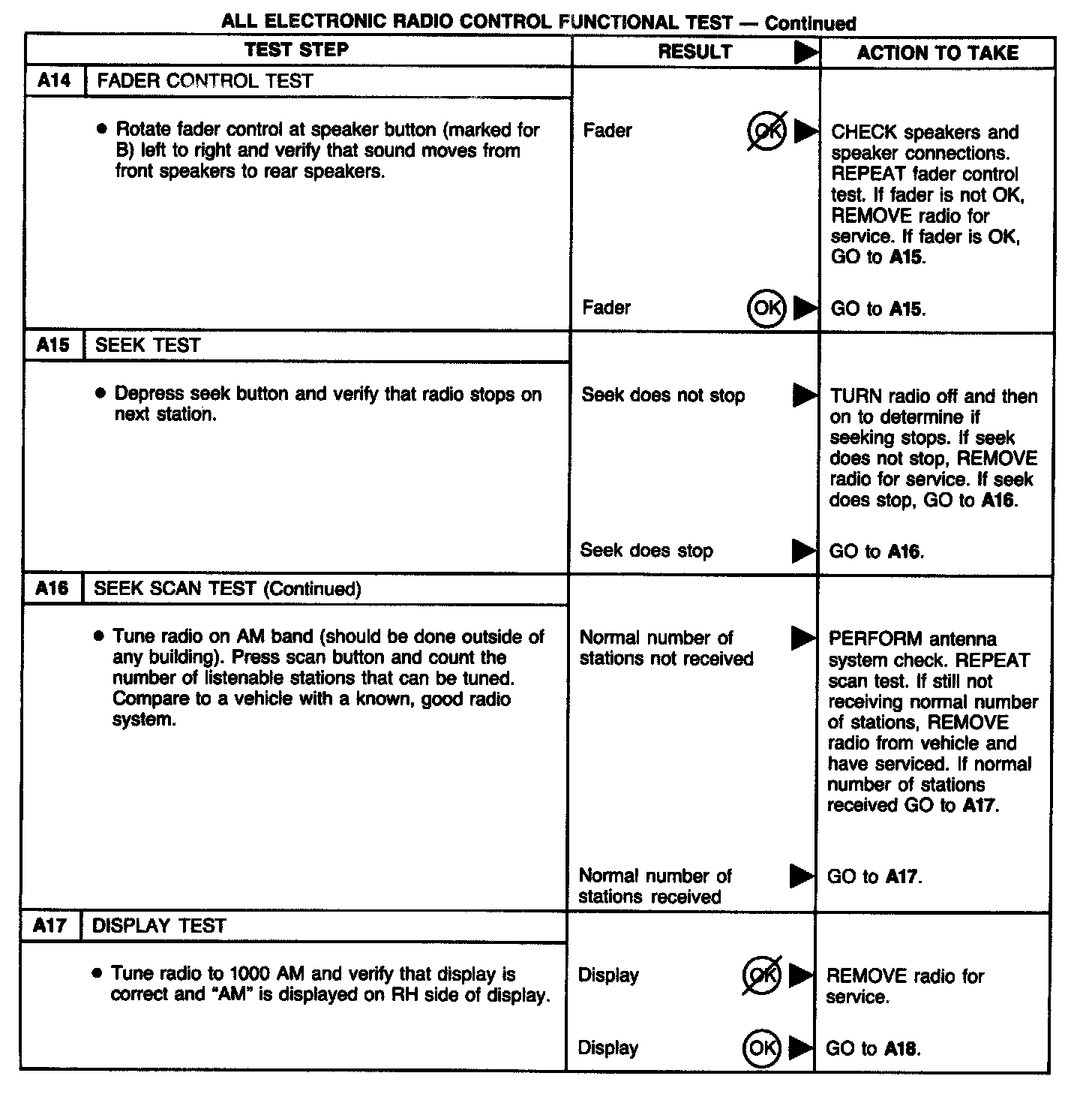

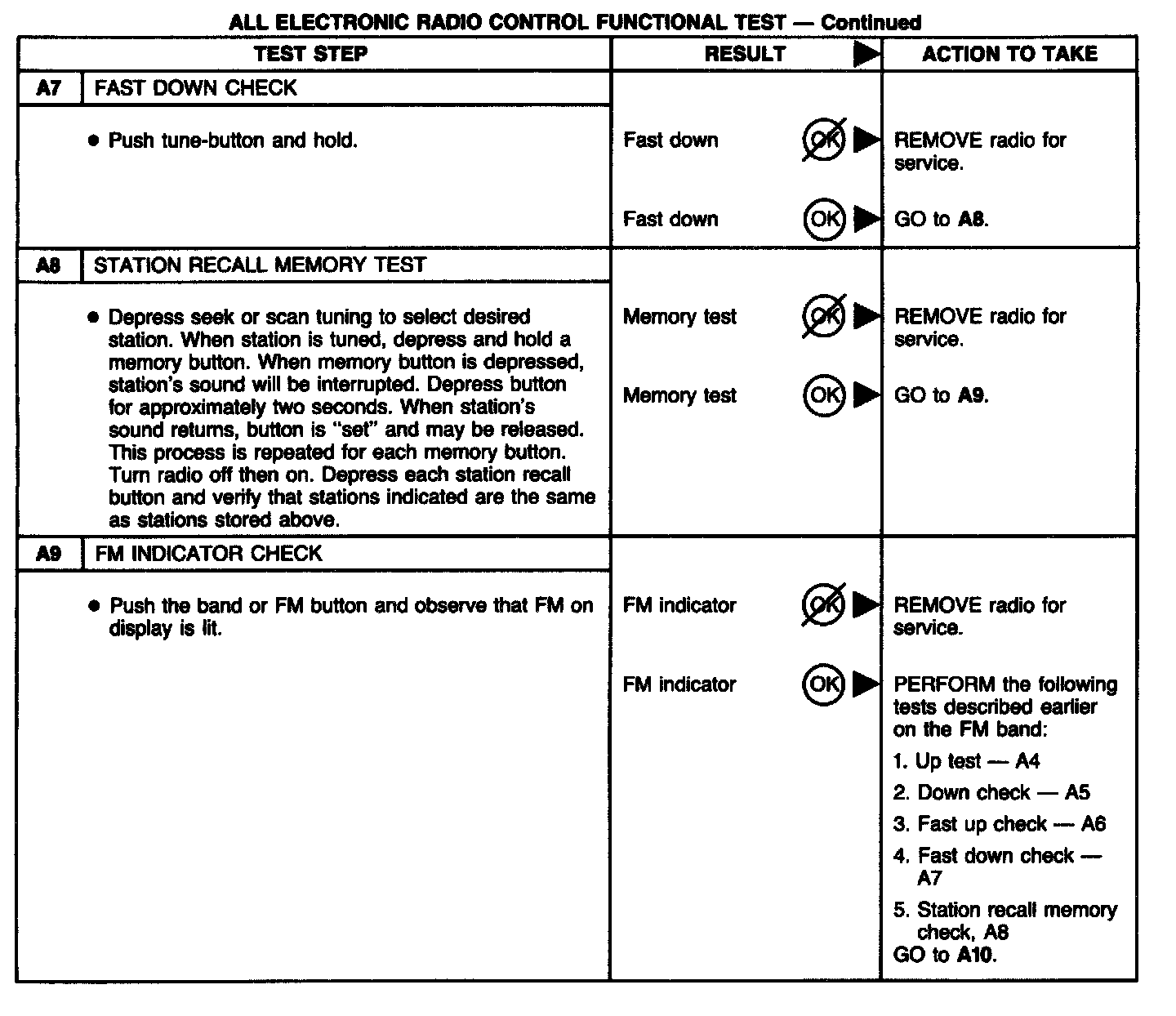

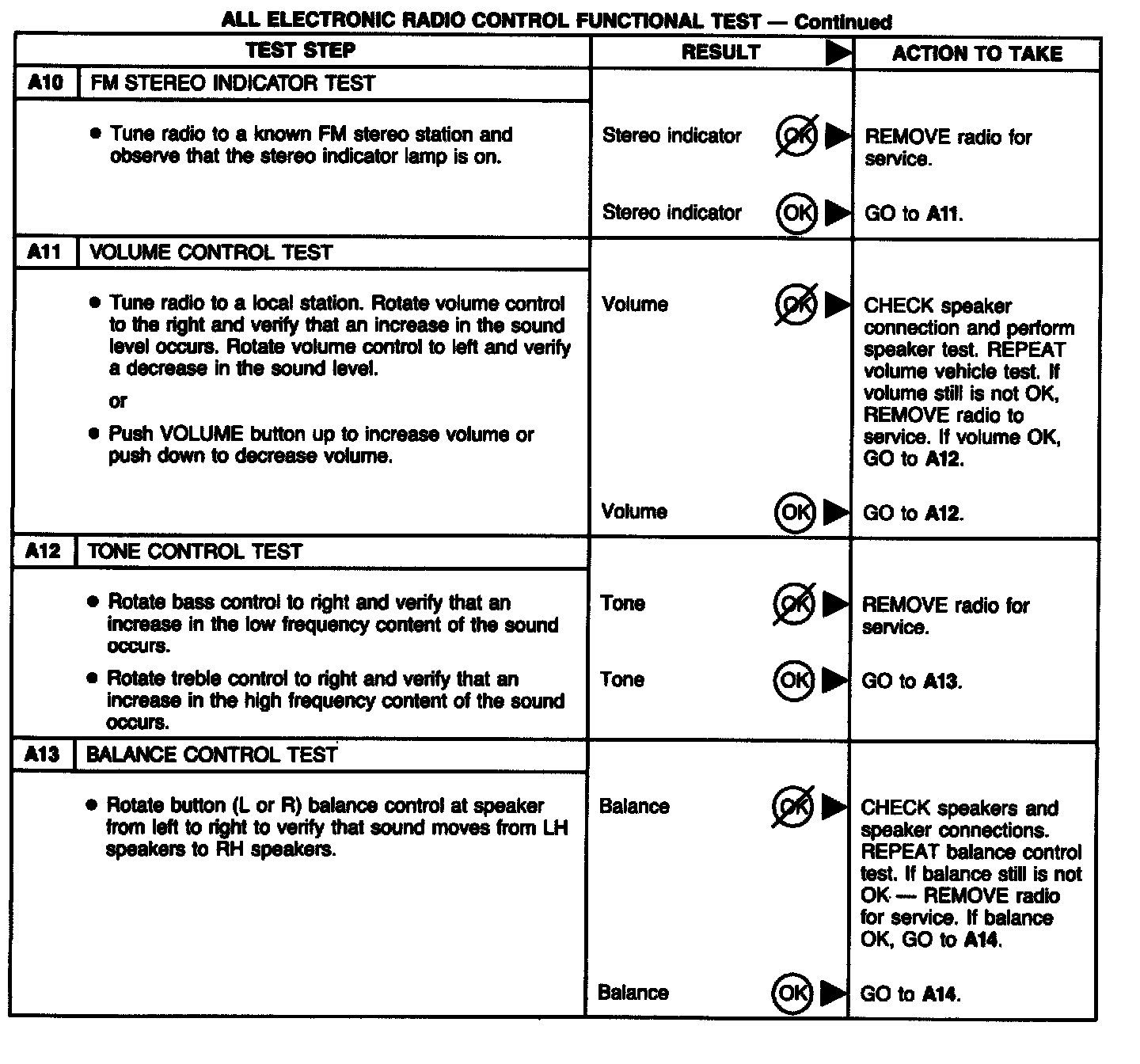

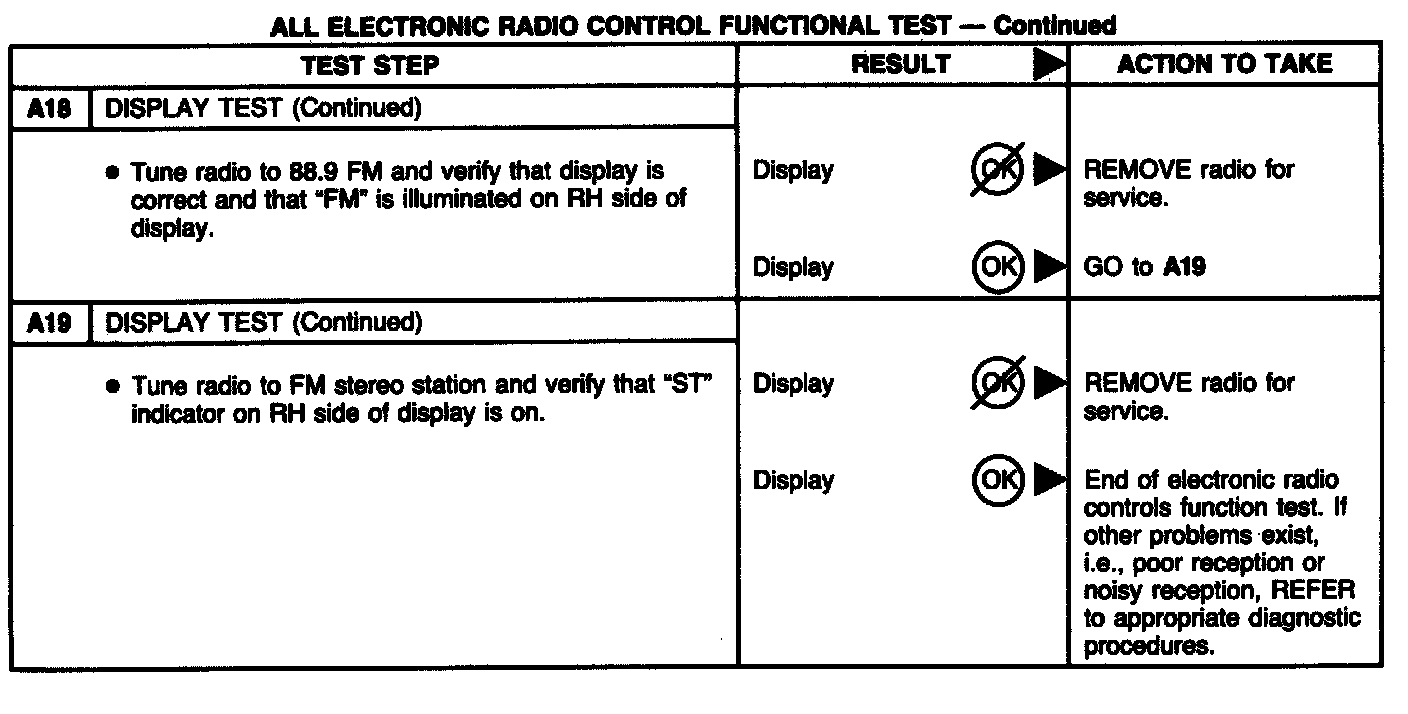

All Electronic Radio Control Functional Test, Continued:



All Electronic Radio Control Functional Test, Continued:



All Electronic Radio Control Functional Test, Continued:



All Electronic Radio Control Functional Test, Continued:
