Wiper Motor: Locations

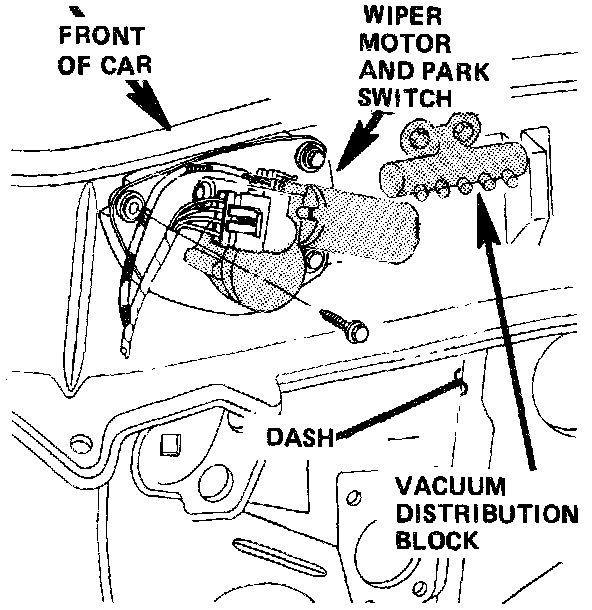

View 144-1 LH Front Of Dash:

The Front Wiper Motor and Park Switch are located in Front of the Left Hand side of the dash.

The Rear Liftgate Wiper Motor and Switch are located in the center of the liftgate.
