Circuit Breaker: Locations

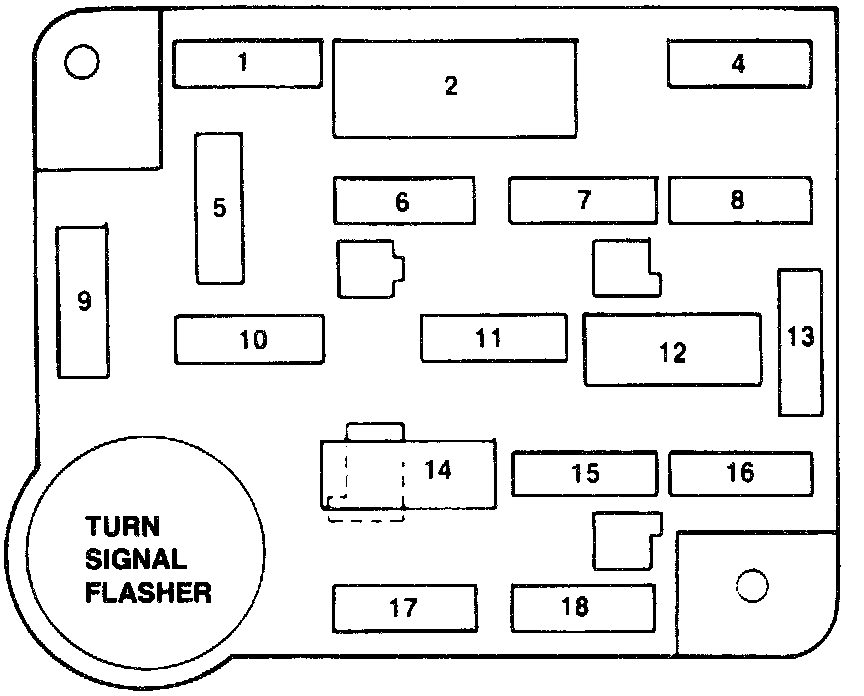

Diagram 24:

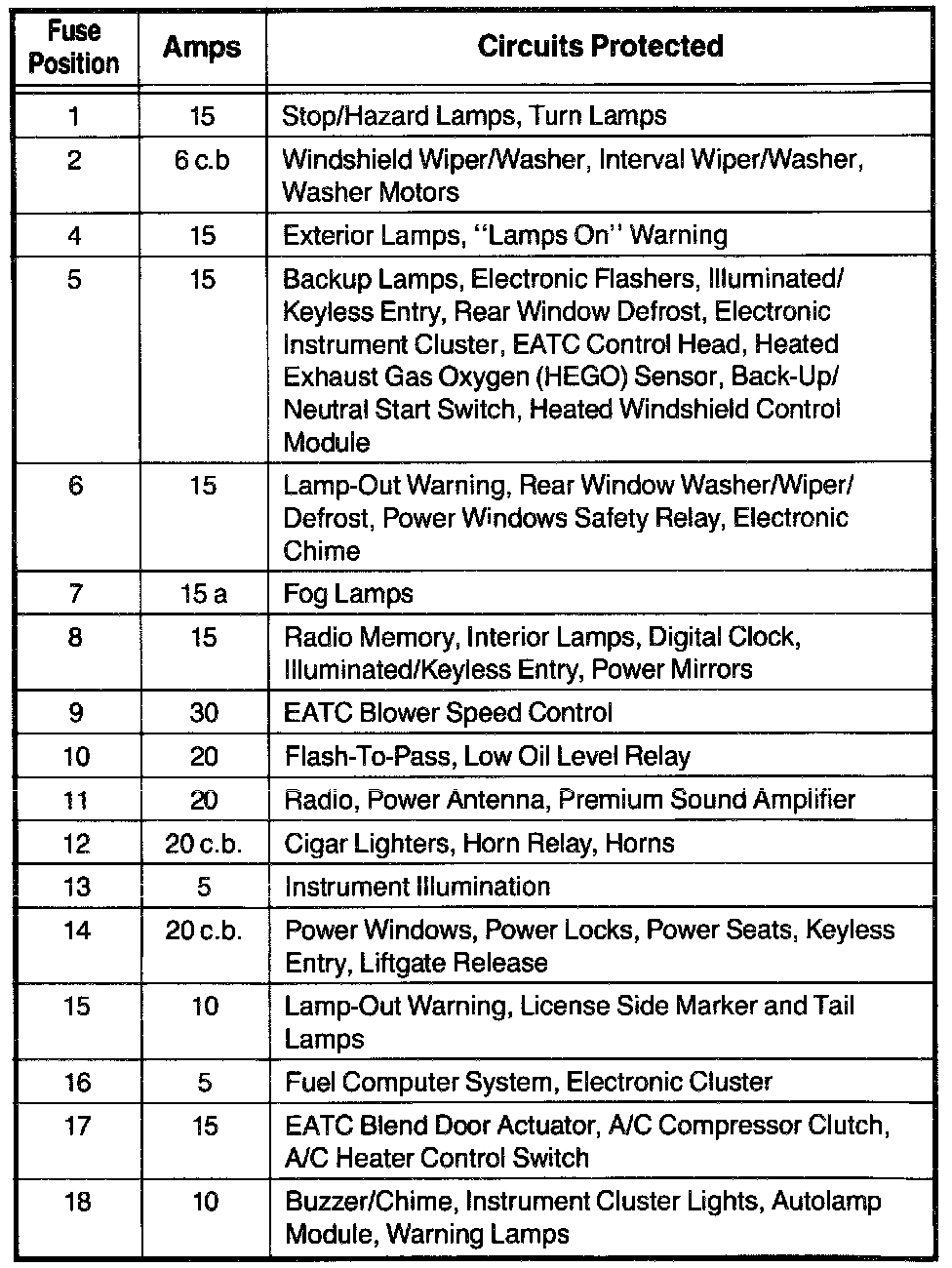

The 6 amp circuit breaker for the Front Wiper/Washer is located in the Fuse Panel.

The 4.5 amp In-Line circuit breaker for the Rear Wiper/Washer is located Behind the Left Hand side of the Instrument Panel, near the rear wiper switch.
