Section 42-03 Window Mechanisms, Front Door
1989
42-03-1 Window Mechanisms, Front Door 42-03-1
SECTION 42-03 Window Mechanisms, Front Door
SUBJECT PAGE SUBJECT PAGE
ADJUSTMENTS REMOVAL AND INSTALLATION (Cont'd.)
Door Glass ................................................. 42-03-1 Glass Run Assembly Replacement ............. 42-03-2
REMOVAL AND INSTALLATION Window Regulator...................................... 42-03-4
Door Glass ................................................. 42-03-2 VEHICLE APPLICATION .............................. 42-03-1
Door Glass Stabilizer Assembly .................... 42-03-2
VEHICLE APPLICATION Taurus/Sable.
ADJUSTMENTS

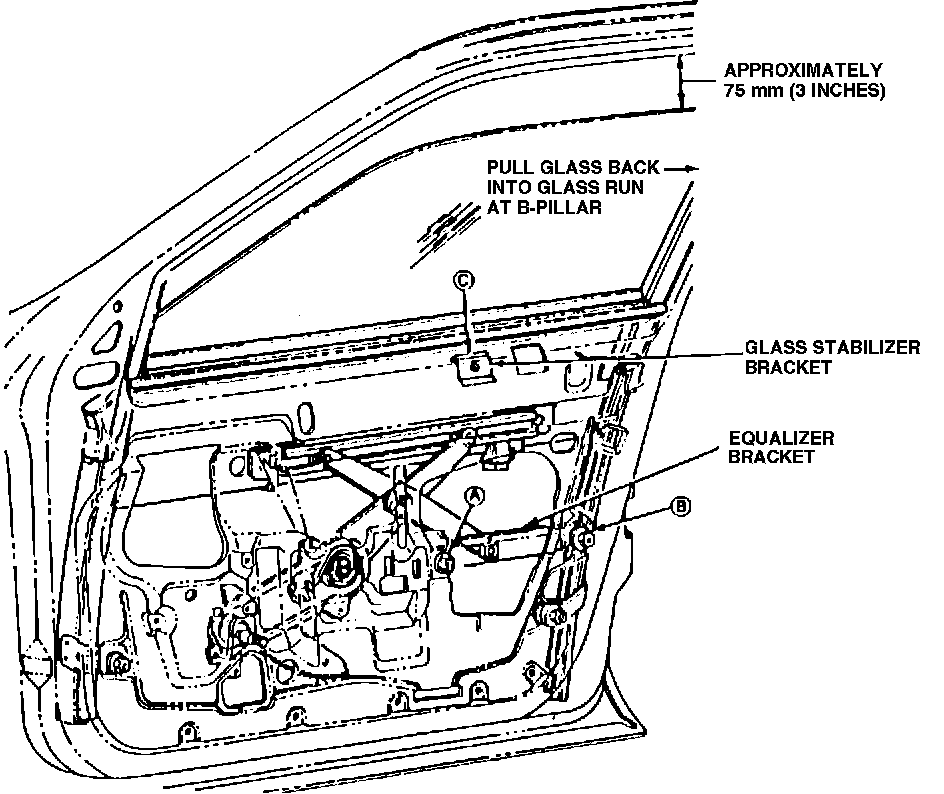

Door Glass
1. Remove door trim panel and watershield. Refer to Section 45-03.
2. Lower door glass approximately 75 mm (3 inches) from full-up position.
3. Loosen nut and washer assemblies (A) and (B) retaining the equalizer bracket to door inner panel.
4. Loosen nut and washer assembly (C) retaining door glass stabilizer.
5. With door open, place hands on each side of glass and pull glass fully into door glass run assembly at B-pillar.
6. Tighten nut and washer (A). Apply a downward pressure on the equalizer bracket and lighten nut and washer (B) to 7-11 N-m (5-8 ft.lbs.). If the "B" hole is a vertical slotted hole, make sure the nut and washer (B) is positioned at the bottom of the slot as you apply a downward pressure on the equalizer bracket, Then tighten nut and washer (B) to 7-11 N-m (5-8 ft.lbs.)
7. Set door glass stabilizer so that it is slightly touching glass and tighten nut and washer assembly to 7-11 N-m (5-8 ft.lbs.).
8. Cycle door glass to ensure proper functioning and door fit.
1989
42-03-2 Window Mechanisms, Front Door 42-03-2
REMOVAL AND INSTALLATION
Door Glass
Removal
1. Remove door trim panel and watershield. Refer to Section 45-03.
2. Remove inside door belt weatherstrip assembly.

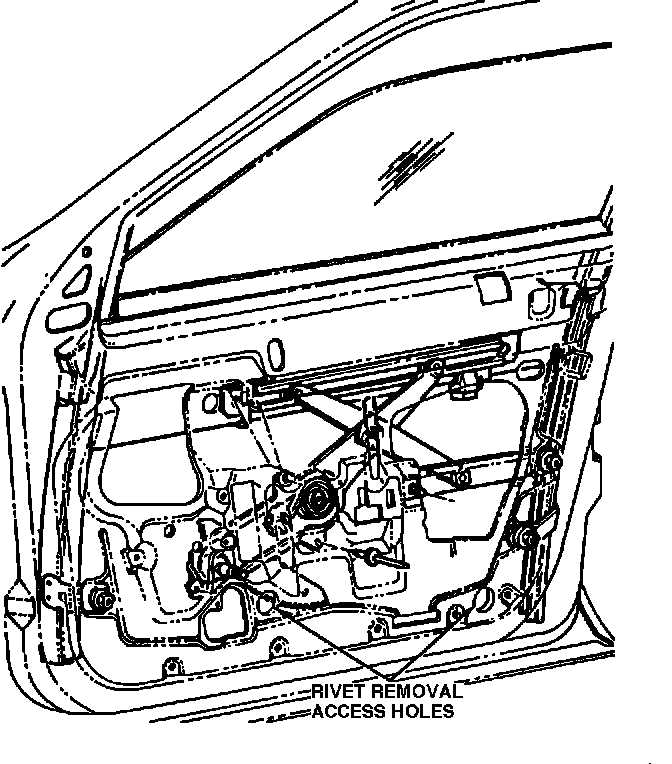

3. Lower glass to access holes in door inner panel. Remove two nuts retaining glass to glass bracket.
4. Loosen nut and washer retaining door glass stabilizer.
5. Remove glass by tipping it forward then removing from between door belt opening to outboard side of door.
Installation
1. Install glass into door at belt. Ensure that glass is set within front and rear glass run retainers.
2. Position glass to glass bracket. Install two nuts to secure glass to glass bracket.
3. Install inside door belt weatherstrip assembly.
4. Raise glass to within 75 mm (3 inches) of full-up position and adjust glass as outlined.
5. Install door trim panel and watershield. Refer to Section 45-03.
Door Glass Stabilizer Assembly
Refer to the illustration under Glass Adjustment and Glass Run, Removal and Installation.
Removal
1. Remove door trim panel and watershield. Refer to Section 45-03.
2. Remove nut and washer assembly attaching stabilizer to door inner panel at belt.
3. Remove stabilizer.
Installation
1. With glass in full-up position, install stabilizer assembly into locator hole in door inner panel.
2. Set stabilizer pad to slightly touch door glass. Tighten retaining nut and washer to 9-14 N-m (7-11 ft.lbs.).
3. Install door trim panel and watershield. Refer to Section 45-03.
Glass Run Assembly Replacement Removal
CAUTION: Removal of the front door glass run is recommended only if damage occurs to the run assembly. Due to the fragile make-up of the component, unnecessary removal may cause damage to the light gauge steel carrier insert within the rubber seal of the run assembly.
1. Remove the following window glass components as outlined:
^ Inside and outside door belt weatherstrips.
^ Front glass run retainer attaching screw.
^ Front door glass.
2. To remove glass run assembly, carefully pull run assembly off window opening pinch weld and remove through window opening. Installation and Handling
CAUTION: The front door glass run requires very "CRITICAL/SPECIAL TYPE HANDLING." The glass run must be handled by the center section only - "NEVER FROM FRONT OR REAR LEGS." The glass runs must be handled in a manner that prevents damage to the Aand B-pillar corners. The glass run must be handled with special care even when installing into the door window glass opening. From outside the vehicle the glass run front leg (A-pillar section) is installed into the front door run retainer so that the run assembly and the front run retainer are aligned at the lower end. The front leg of the glass run with the front run retainer attached is then eased into the door at the door belt opening.
NOTE: This procedure requires two people, one inserting the front leg and another person holding the remainder of glass run at center section to prevent bending. After the front (A-pillar section) and the rear (B-pillar section) of the glass run assembly is inserted into the door, the glass run is installed per the following procedures:
1988
42-03-1 Window Mechanisms, Front Door 42-03-1
SECTION 42-03 Window Mechanisms, Front Door
SUBJECT PAGE SUBJECT PAGE
ADJUSTMENTS REMOVAL AND INSTALLATION (Cont'd.)
Door Glass .............................................. 42-03-1 Door Vent Window Assembly ................. 42-03-5
REMOVAL AND INSTALLATION Glass Run Assembly Replacement ........... 42-03-2
Door Glass .............................................. 42-03-2 Window Regulator ................................ 42-03-4
Door Glass Stabillzer Assembly................... 42-03-2 VEHICLE APPLICATION.............................. 42-03-1
VEHICLE APPLICATION Taurus/Sable.
ADJUSTMENTS

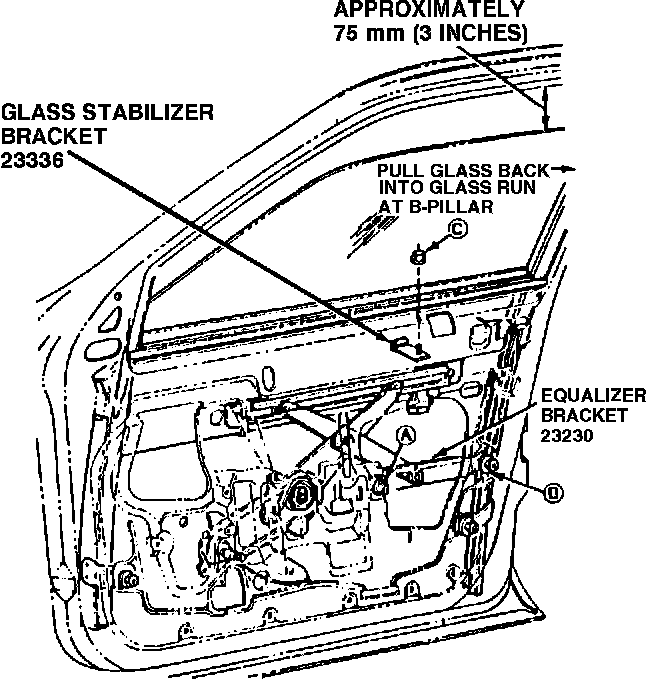

Door Glass
1. Remove door trim panel and watershield. Refer to Section 45-03.
2. Lower door glass approximately 75 mm (3 inches) from full-up position.
3. Loosen nut and washer assemblies (A) and (B) retaining the equalizer bracket to door inner panel.
4. Loosen nut and waslier assembly (C) retaining door glass stabilizer.
5. With door open, place hands on each side of glass and pull glass fully into door glass run assembly at B-pillar.
6. Tighten nut and washer (A). Apply a downward pressure on the equalizer bracket and tighten nut and washer (B) to 7-11 N-m (5-8 ft.lbs.). If the "B" hole is a vertical slotted hole, make sure the nut and washer (B) is positioned at the bottom of the slot as you apply a downward pressure on the equalizer bracket. Then tighten nut and washer (B) to 7-11 N-m (5-8 ft.lbs.).
7. Set door glass stabilizer so that it is slightly touching glass and tighten nut and washer assembly to 7-11 N-m (5-8 ft.lbs.).
8. Cycle door glass to ensure proper functioning and door fit.
1988
42-03-2 Window Mechanisms, Front Door 42-03-2
REMOVAL AND INSTALLATION
Door Glass
Removal
1. Remove door trim panel and watershield. Refer to Section 45-03.
2. Remove inside door belt weatherstrip assembly.

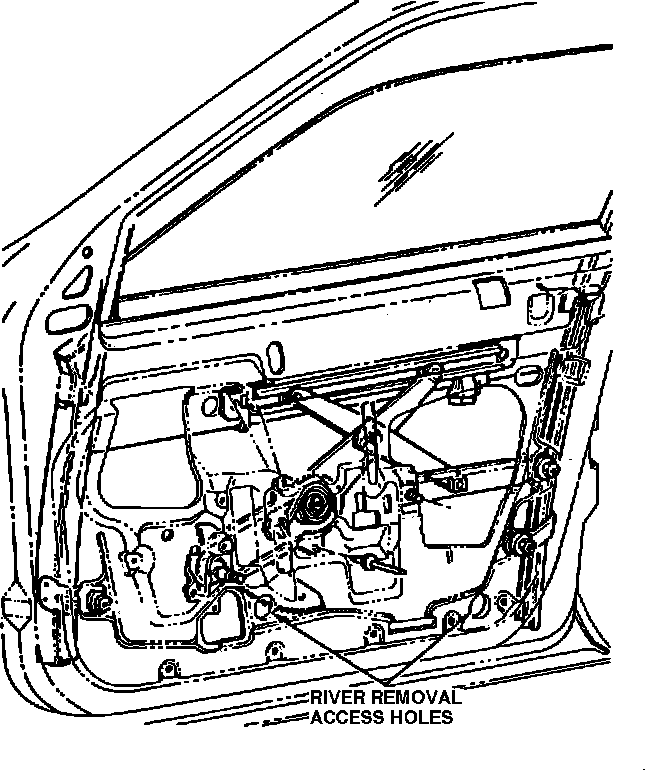

3. Lower glass to access holes in door inner panel. Remove two nuts retaining glass to glass bracket.
4. Loosen nut and washer retaining door glass stabilizer.
5. Remove glass by tipping it forward then removing from between door belt opening to outboard side of door.
Installation
1. Install glass into door at belt. Ensure that glass is set within front and rear glass run retainers.
2. Position glass to glass bracket. Install two nuts to secure glass to glass bracket.
3. Install inside door belt weatherstrip assembly.
4. Raise glass to within 75 mm (3 inches) of full-up position and adjust glass as outlined.
5. Install door trim panel and watershield. Refer to Section 45-03.
Door Glass Stabilizer Assembly
Refer to the illustration under Glass Adjustment and Glass Run, Removal and Installation.
Removal
1. Remove door trim panel and watershield. Refer to Section 45-03.
2. Remove nut and washer assembly attaching stabilizer to door inner panel at belt.
3. Remove stabilizer.
Installation
1. With glass in full-up position, install stabilizer assembly into locator hole in door inner panel.
2. Set stabilizer pad to slightly touch door glass. Tighten retaining nut and washer to 9-14 N-m (7-11 ft.lbs.).
3. Install door trim panel and watershield. Refor to Section 45-03.
Glass Run Assembly Replacement Removal
CAUTION: Removal of the front door glass run is recommended only if damage occurs to the run assembly. Due to the fragile make-up of the component, unnecessary removal may cause damage to the light gauge steel carrier insert within the rubber seal of the run assembly.
1. Remove the following window glass components as outlined:
^ Inside and outside door belt weatherstrips.
^ Front glass run retainer attaching screw.
^ Front door glass.
2. To remove glass run assembly, carefully pull run assembly off window opening pinch weld and remove through window opening. Installation and Handling
CAUTION: The front door glass run requires very "CRITICAL/SPECIAL TYPE HANDLING." The glass run must be handled by the center section only - "NEVER FROM FRONT OR REAR LEGS." The glass runs must be handled in a manner that prevents damage to the Aand B-pillar corners. The glass run must be handled with special care even when installing into the door window glass opening. From outside the vehicle the glass run front leg (A-pillar section) is installed into the front door run retainer so that the run assembly and the front run retainer are aligned at the lower end. The front leg of the glass run with the front run retainer attached is then eased into the door at the door belt opening.
NOTE: This procedure requires two people, one inserting the front leg and another person holding the remainder of glass run at center section to prevent bending. After the front (A-pillar section) and the rear (B-pillar section) of the glass run assembly is inserted into the door, the glass run is installed per the following procedures:
