Sedan

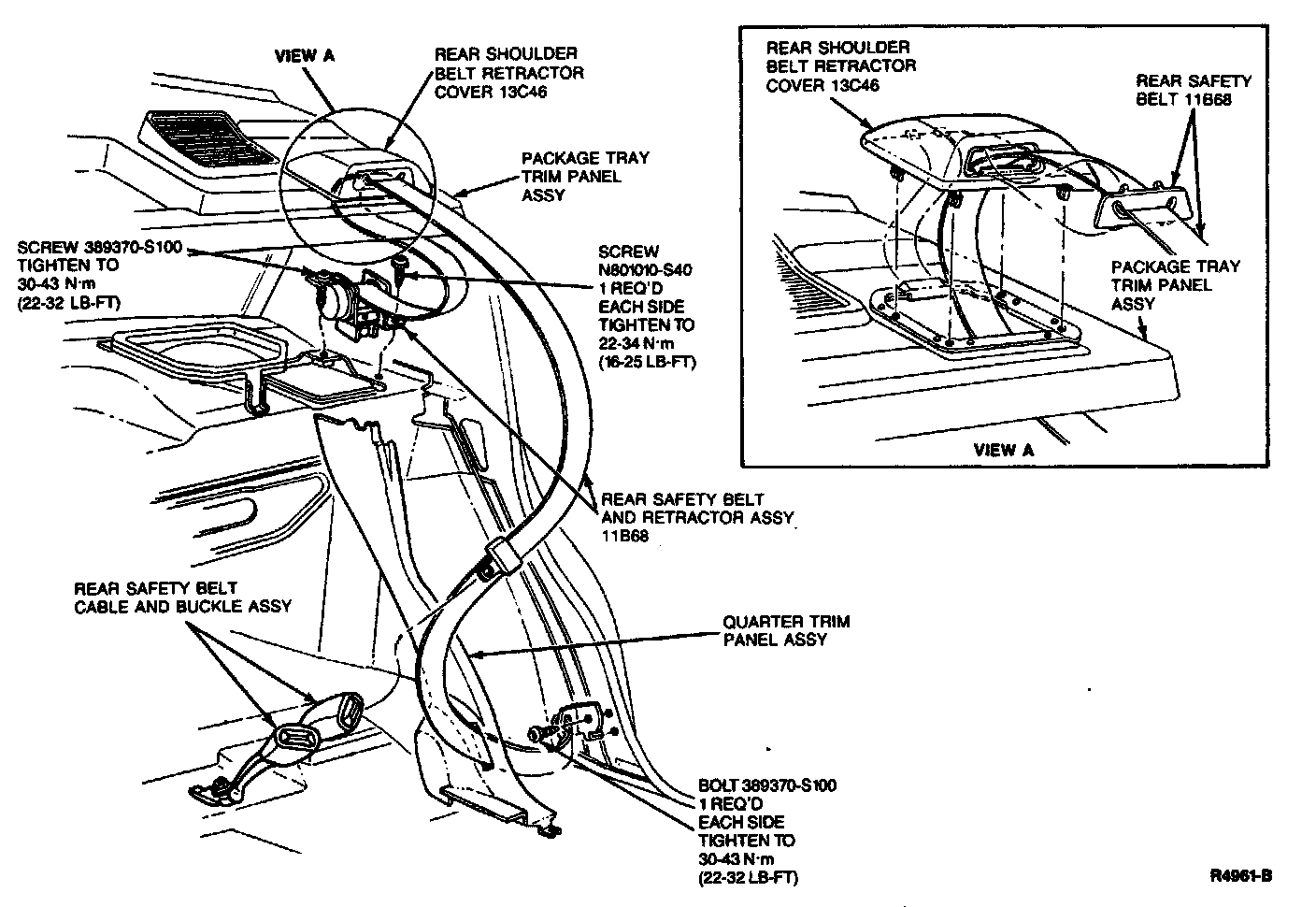

Removal and Installation
1. Remove rear seat cushion.
2. Remove rear seat back. Ensure on vehicles equipped with head rests the web guide is opened.
3. Remove buckle end anchor nuts and remove buckle end belts.
4. Remove upper and lower quarter trim panels.
5. Remove safety belt anchor-to-sill bolt.
6. Snap out bezel in package tray trim panel.
7. Remove rear stoplamp assembly.
8. Remove package tray trim panel.
9. Remove retractor anchor bolt and retractor screw.
10. Remove anchor end of webbing through the opening in the quarter trim panel and the package tray trim panel.
11. Remove outboard safety belt assembly from the vehicle.
12. Repeat procedure on opposite side.
13. To install, reverse Steps 1 through 12.

NOTE: Be sure to tighten all retaining bolts to the proper specifications during installation.
