X - Integrated Relay Control Module
>>
X33 - X36
X33 - X36

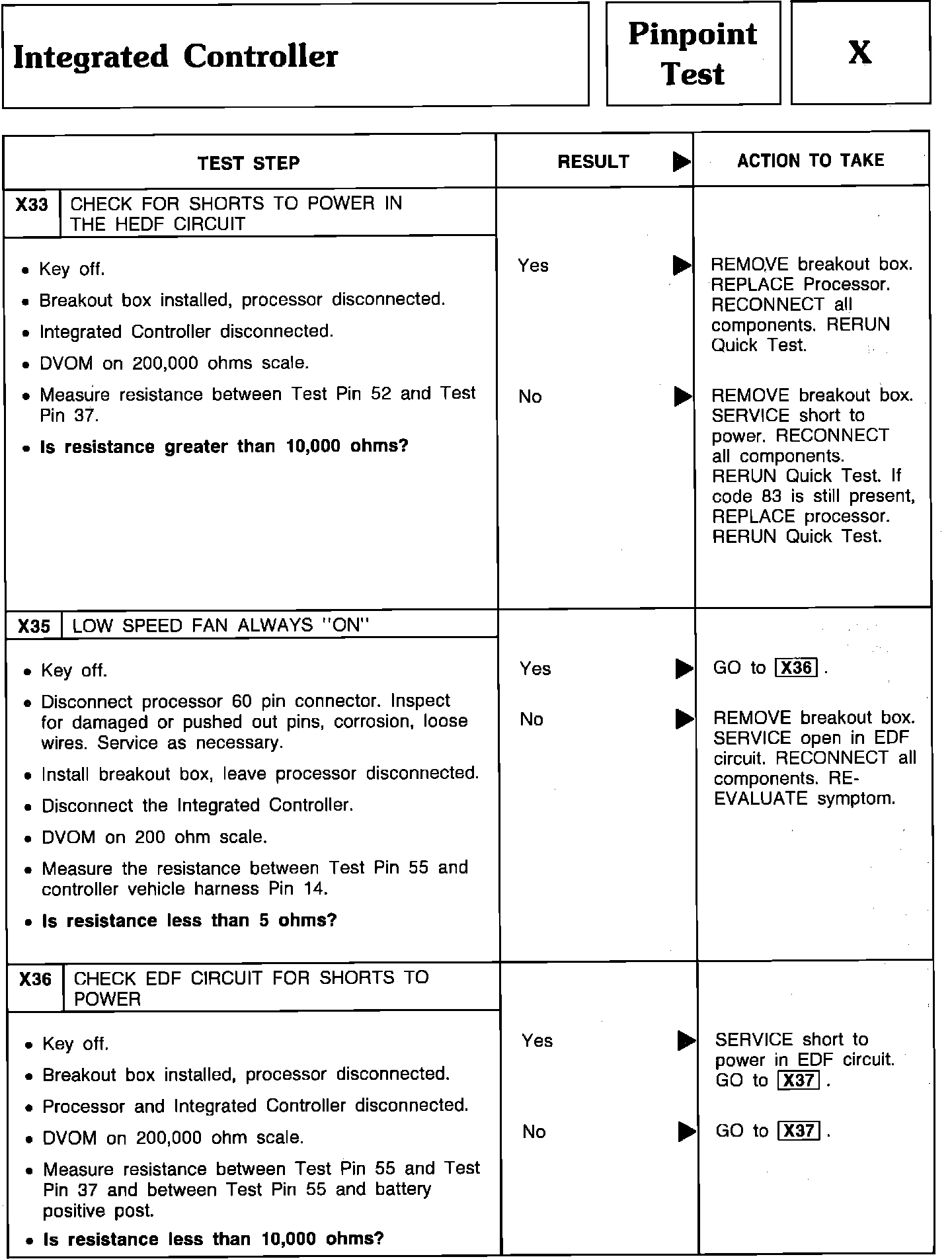

Pinpoint Test X33 Thru X36 - Integrated Controller:
