DQ - Fuel Injection Pump Lever (FIPL) Sensor
>>
DQ92 - DQ93
DQ92 - DQ93

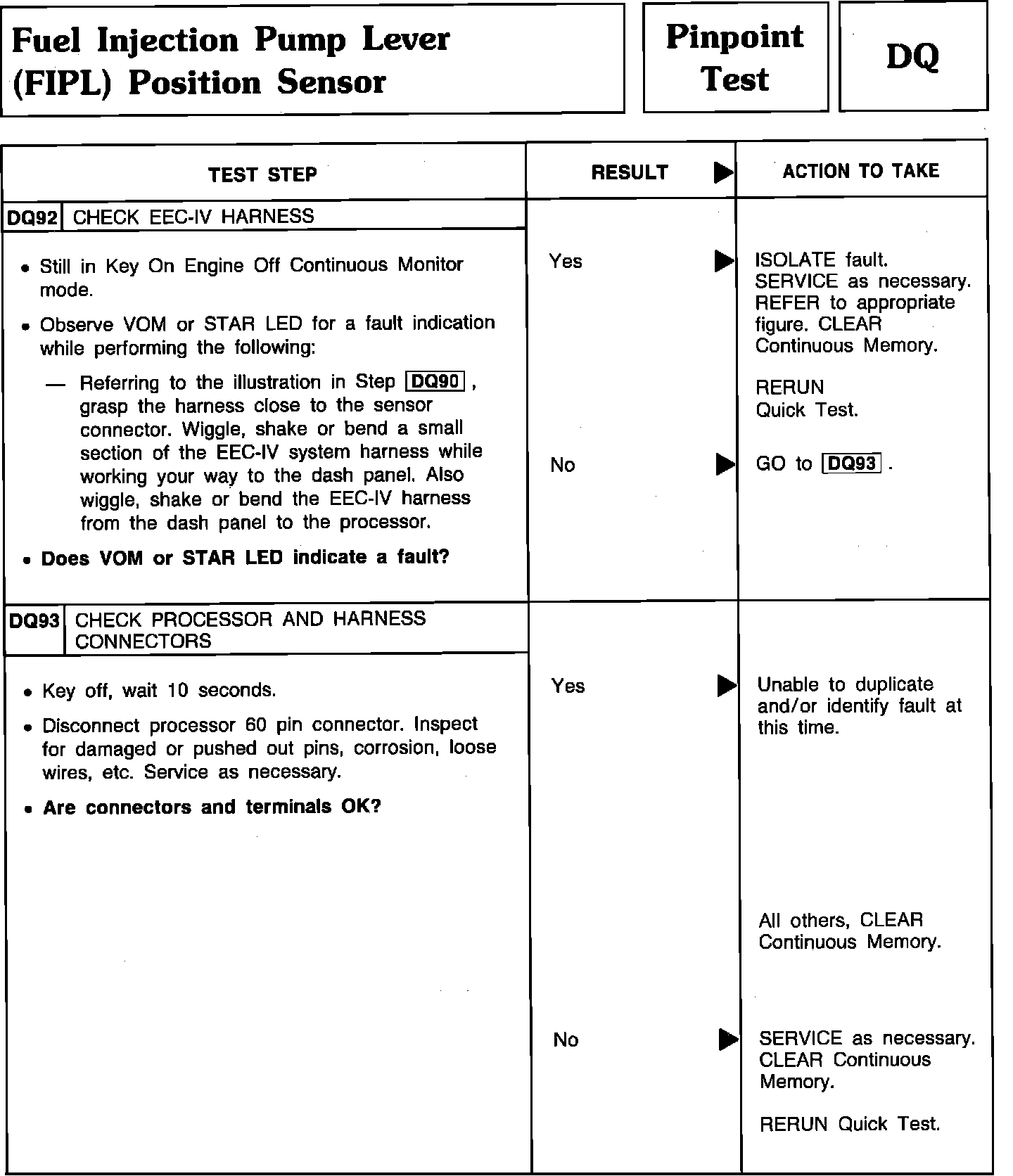

Pinpoint Test DQ92 & DQ93 - Fuel Injection Pump Lever Position Sensor:
