DQ - Fuel Injection Pump Lever (FIPL) Sensor
>>
DQ4 - DQ11
DQ4 - DQ11

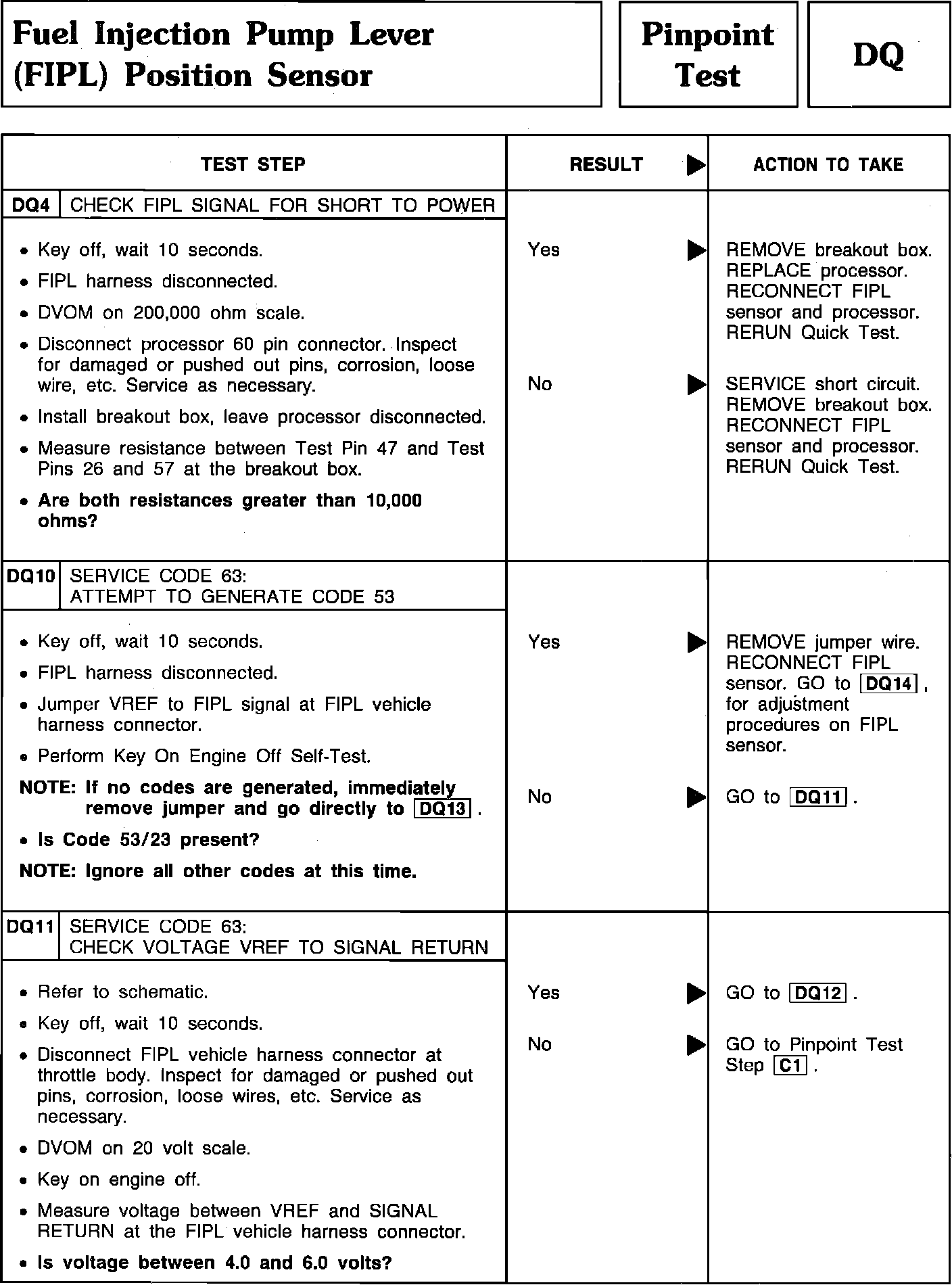

Pinpoint Test DQ4 thru DQ11 - Fuel Injection Pump Lever Position Sensor:
