DQ - Fuel Injection Pump Lever (FIPL) Sensor
>>
DQ1 - DQ3
DQ1 - DQ3

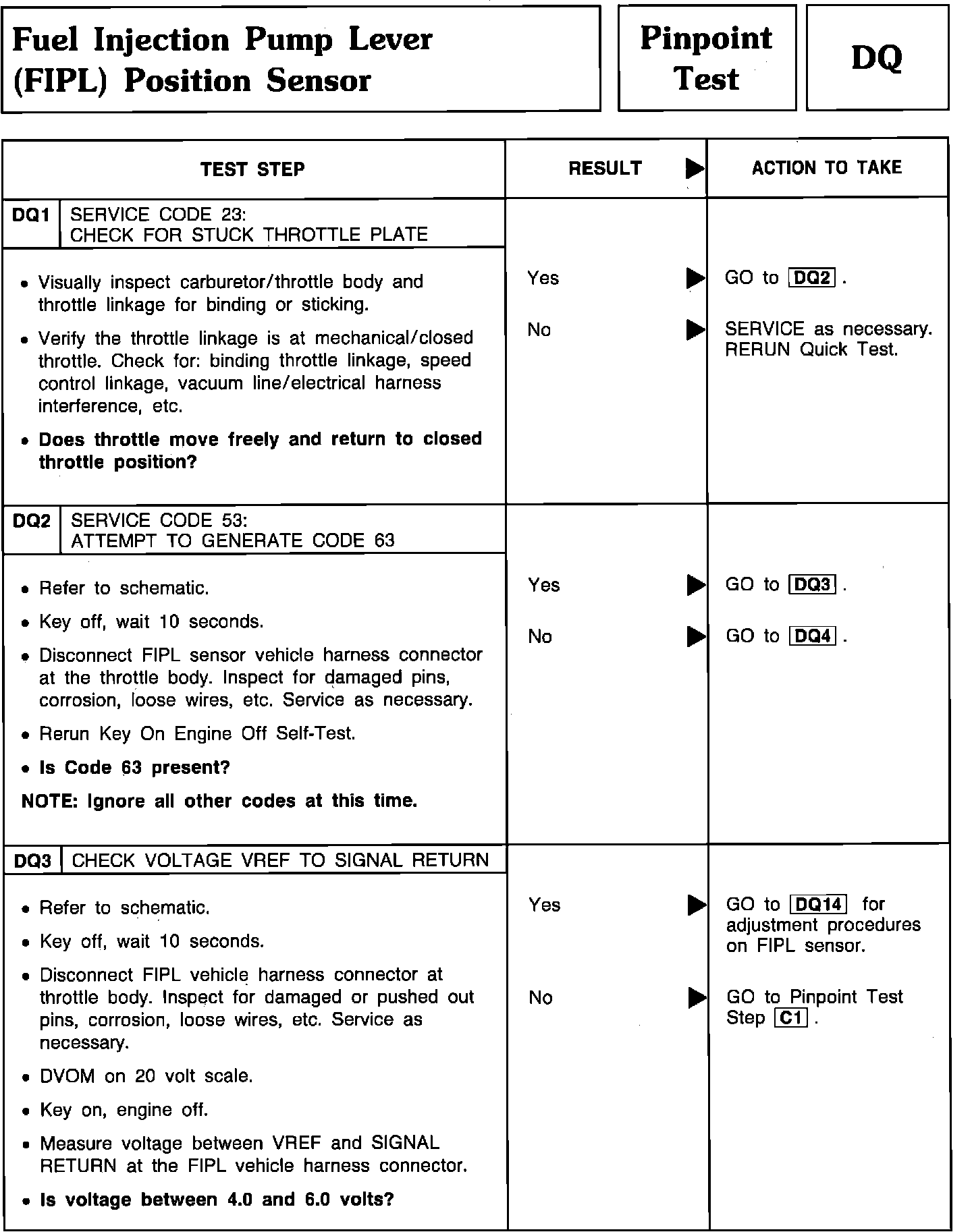

Pinpoint Test DQ1 thru DQ3 - Fuel Injection Pump Lever Position Sensor:
