Home >> Mercury >> 1989 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> DH - Throttle Position (TP) Sensor >> DH95 - DH96

DH95 - DH96

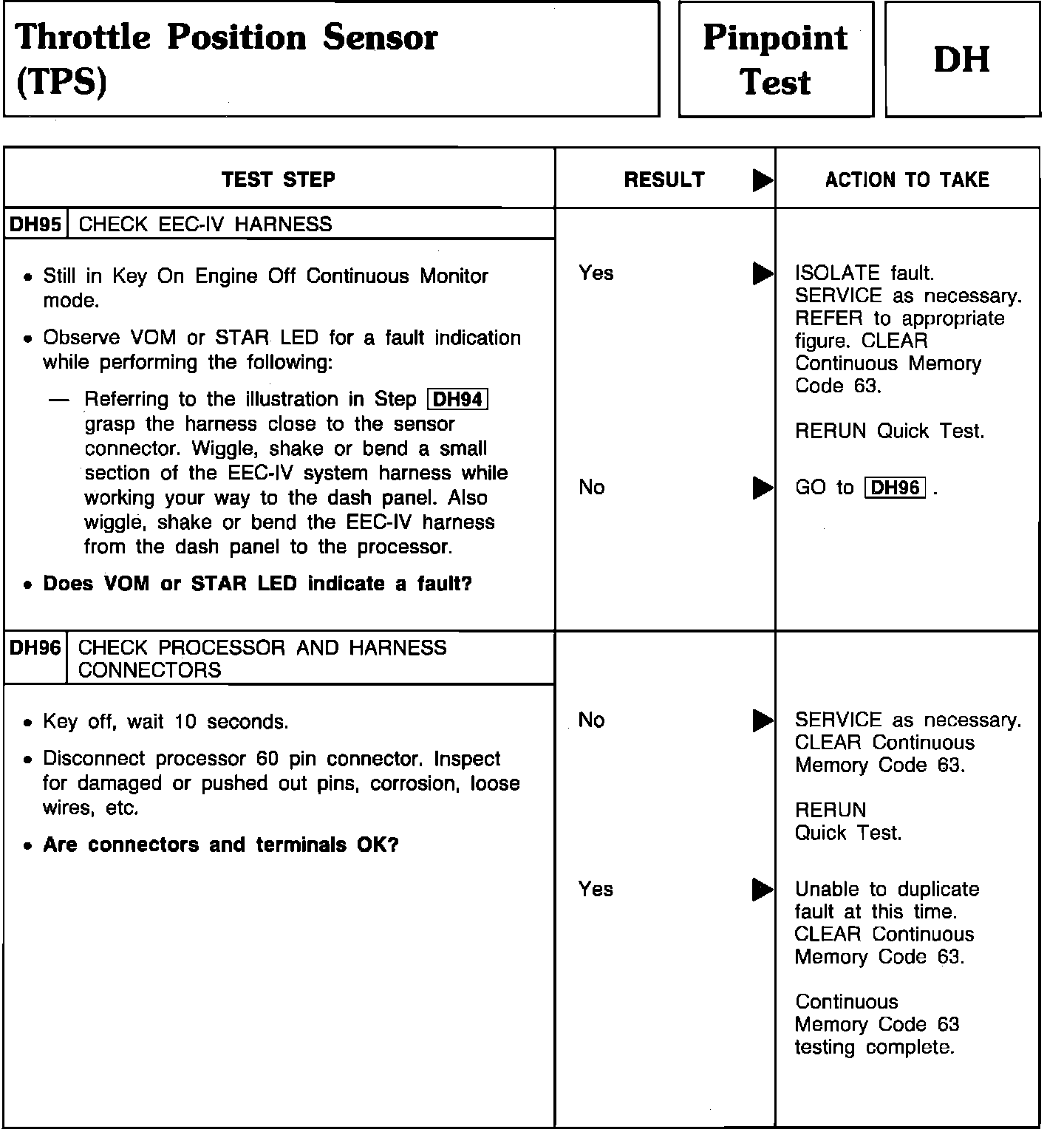

Pinpoint Test DH95 & DH96 - Throttle Position Sensor (TPS):
