DH - Test Schematic

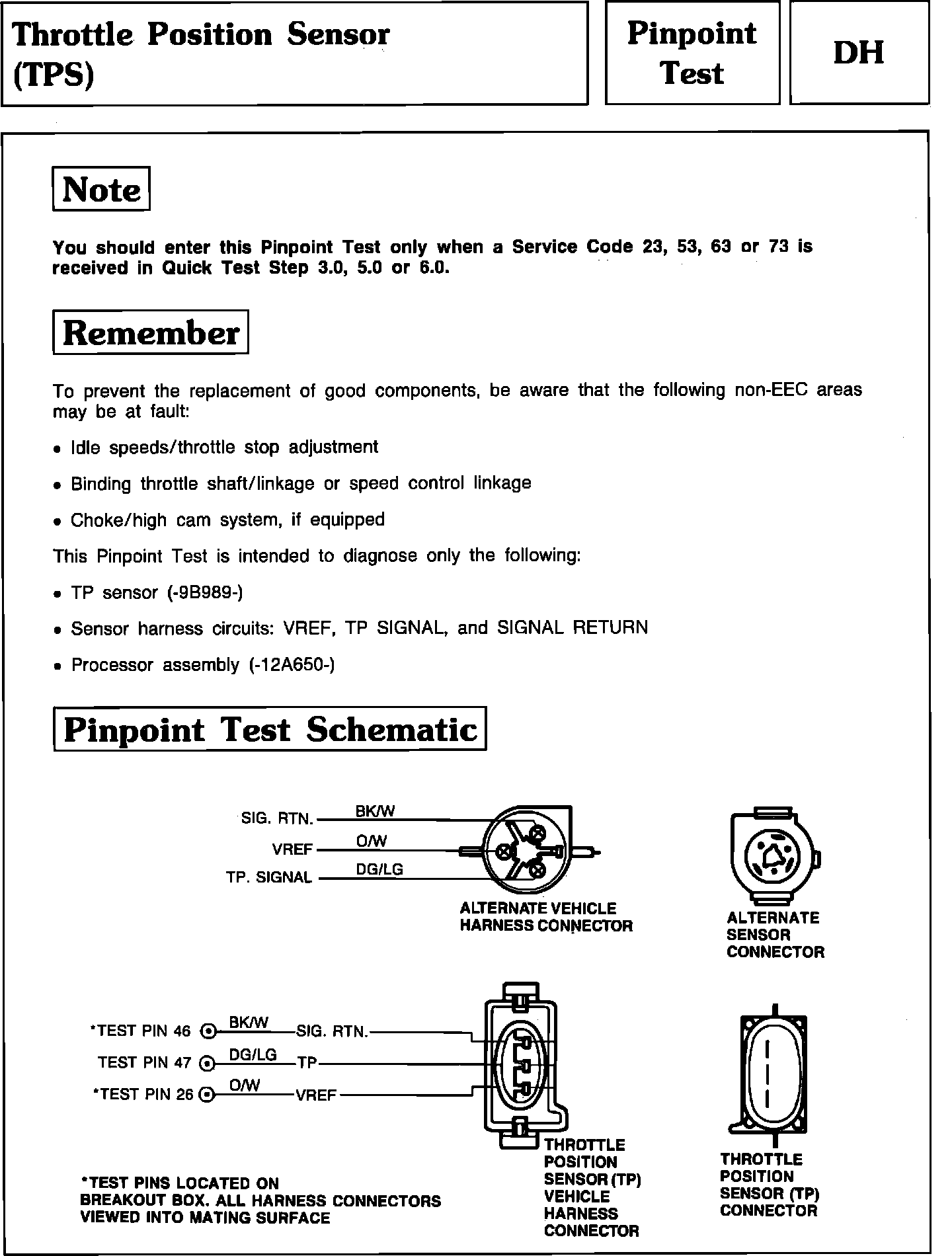

Pinpoint Test DH - Test Schematic:

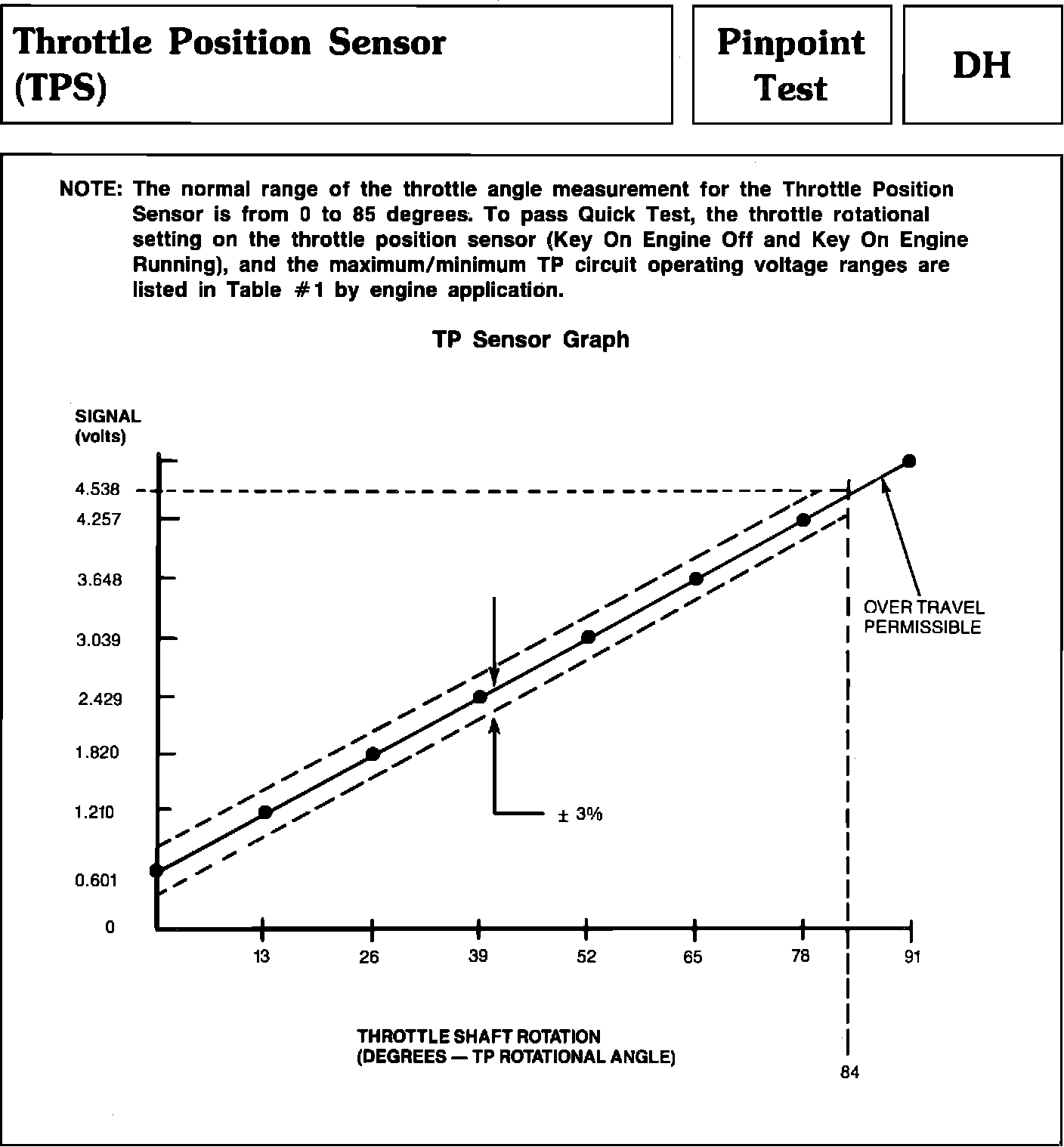

Pinpoint Test DH - Throttle Position Sensor (TPS):

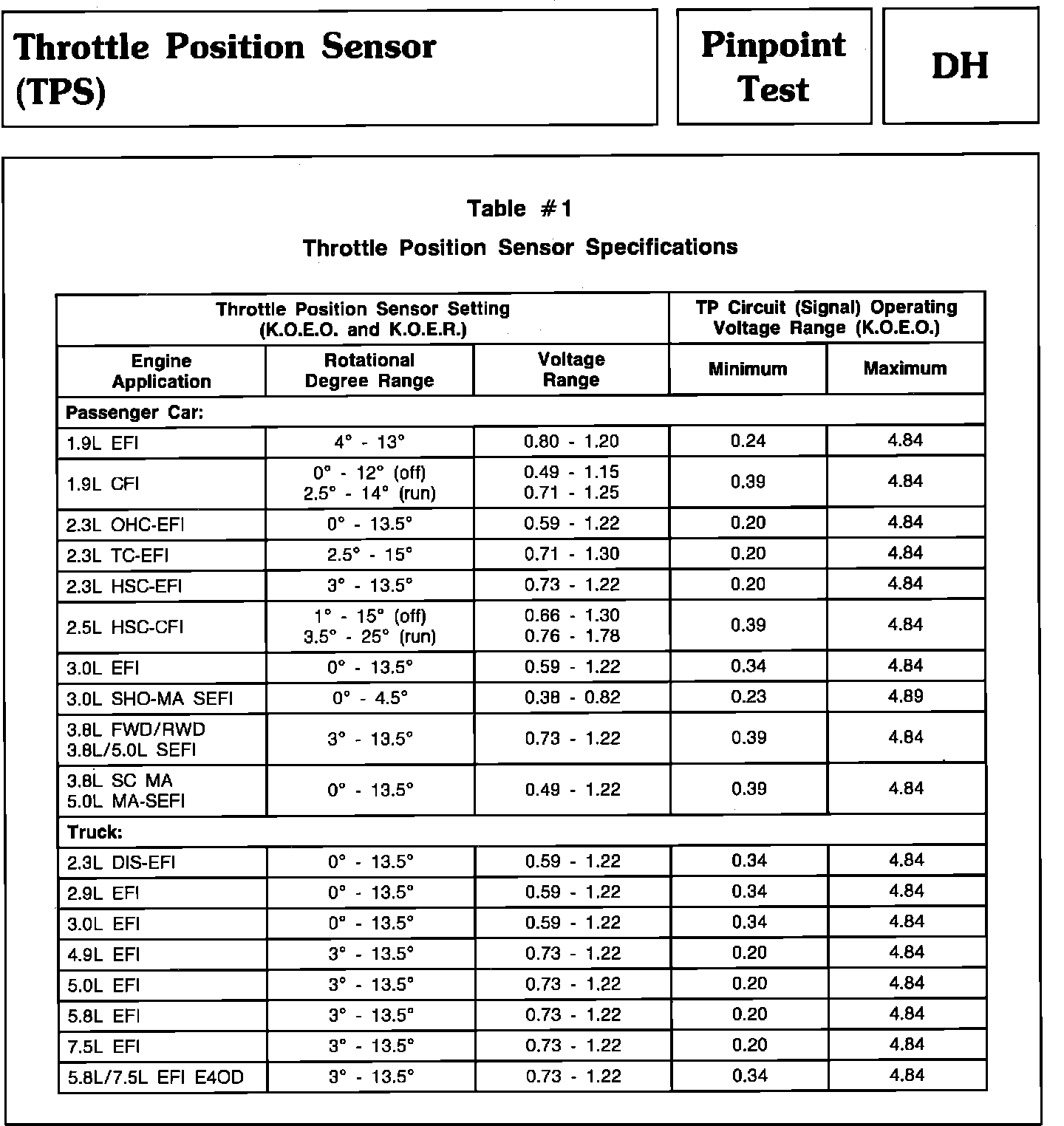

Pinpoint Test DH - Specifications:
