Home >> Mercury >> 1989 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> DE - Engine Coolant Temperature Sensor (ECT) >> DE3 - DE4

DE3 - DE4

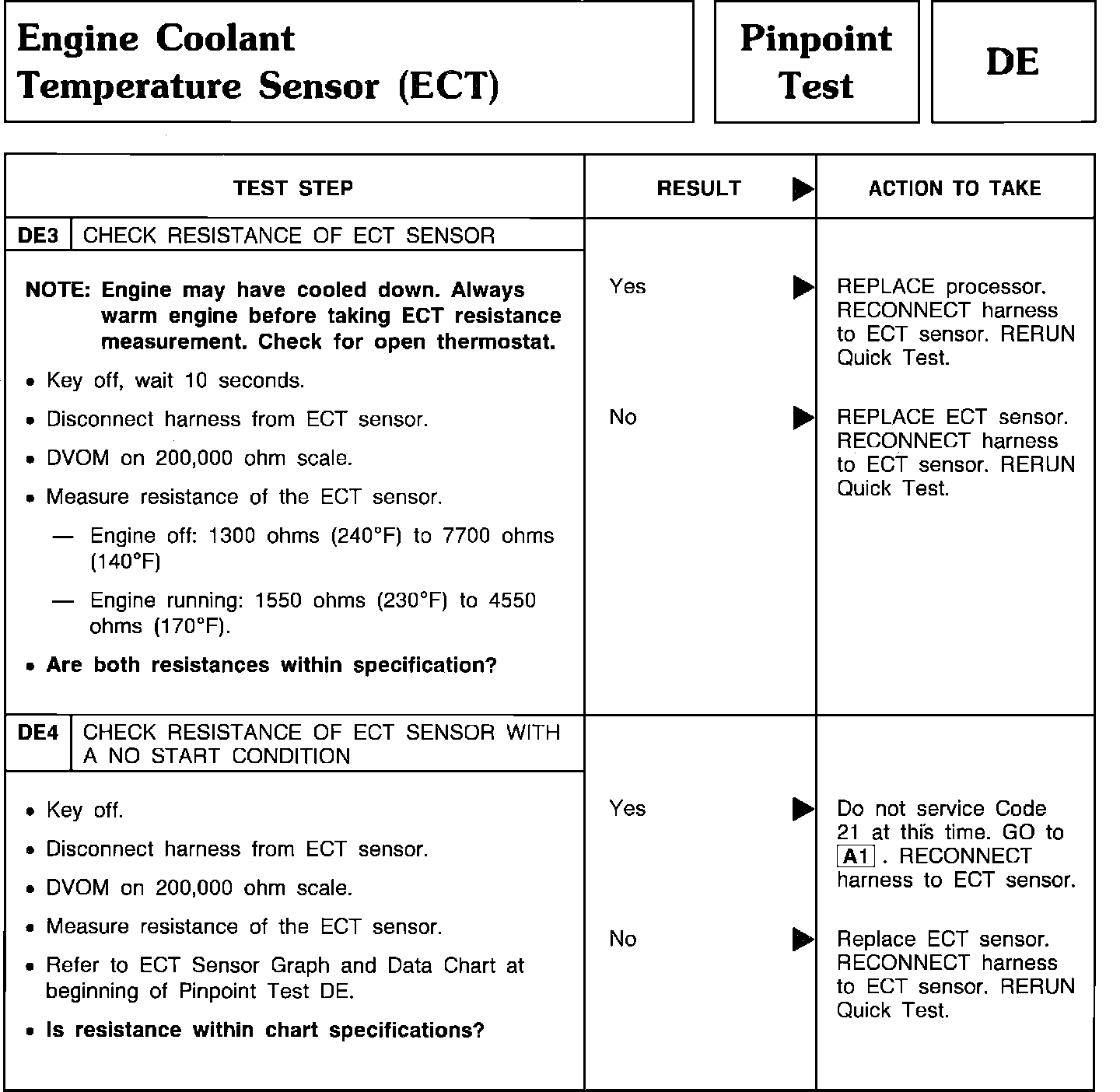

Pinpoint Test DE3 & DE4 - Engine Coolant Temperature Sensor (ECT):
