Mercury
>>
1989
>>
Sable V6-182 3.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
DE - Engine Coolant Temperature Sensor (ECT)
>>
DE - Wiring Diagram
DE - Wiring Diagram

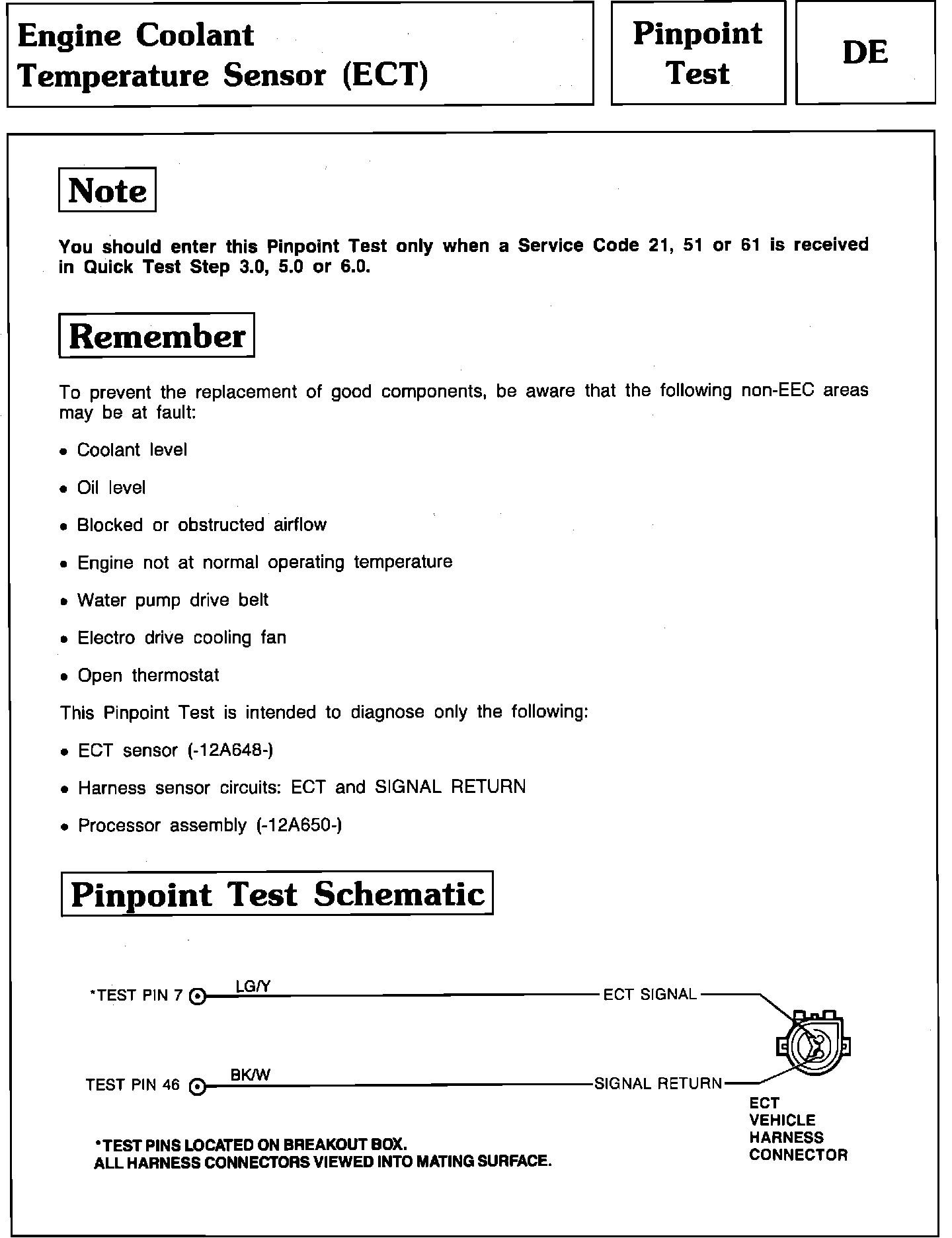

Pinpoint Test DE - Test Schematic:

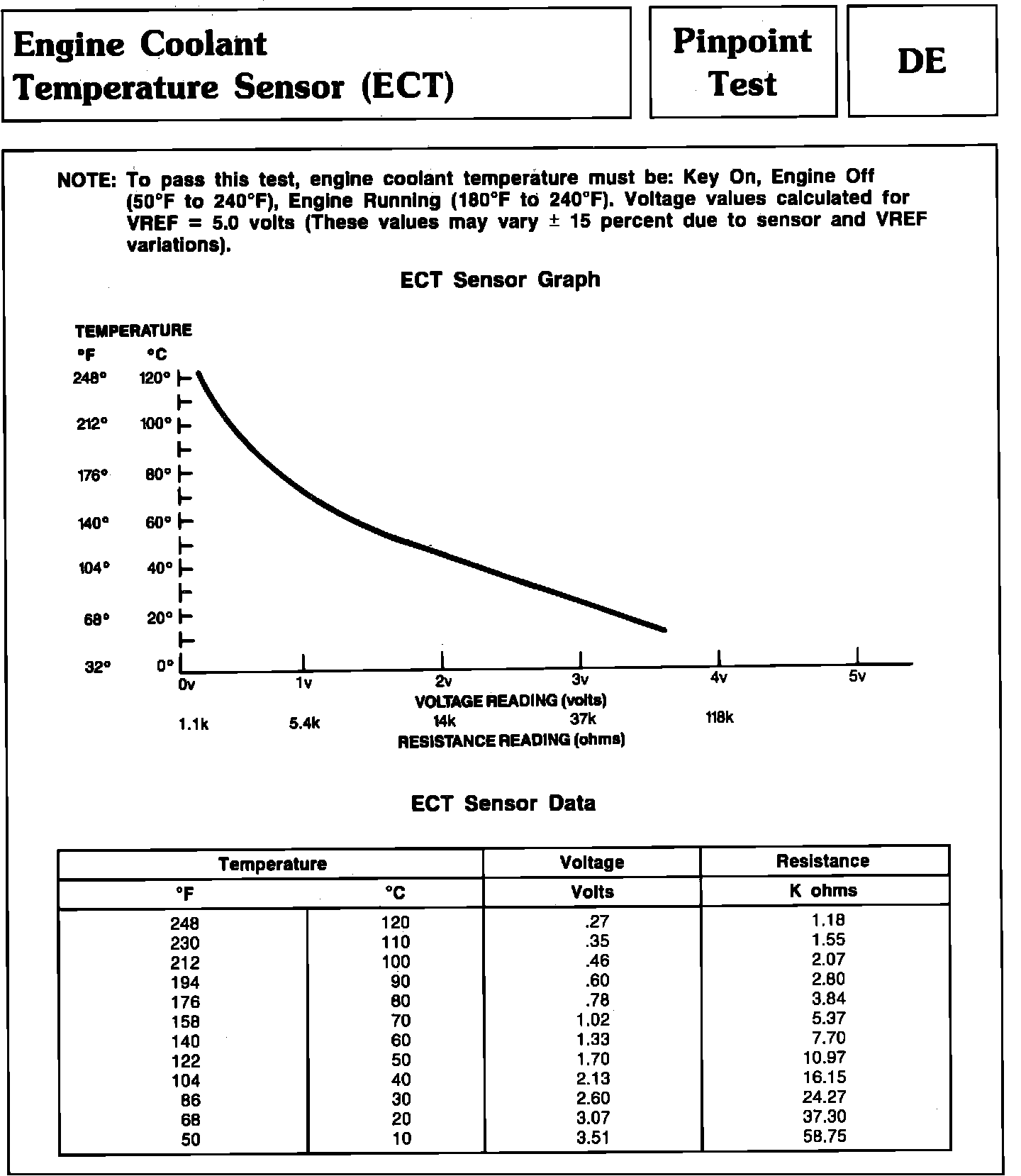

Pinpoint Test DE - Engine Coolant Temperature Sensor (ECT):
