MAP Sensor Changed to BP Sensor - Manual Revision

90ford13
ELECTRICAL/VACUUM TROUBLESHOOTING MANUAL - 1989 - PAGE 59 - IDENTIFICATION OF MANIFOLD ABSOLUTE PRESSURE SENSOR CHANGED TO BP SENSOR

Article No. 90-6B-19

FORD: 1989 TAURUS

LINCOLN-MERCURY: 1989 SABLE







ISSUE: Reference to the Manifold Absolute Pressure (MAP) sensor on page 59 of the 1989 Taurus/Sable EVTM, titled Electronic Engine Control (3.0L SHO Engine) is incorrect. The correct identification for this sensor is BP Sensor.

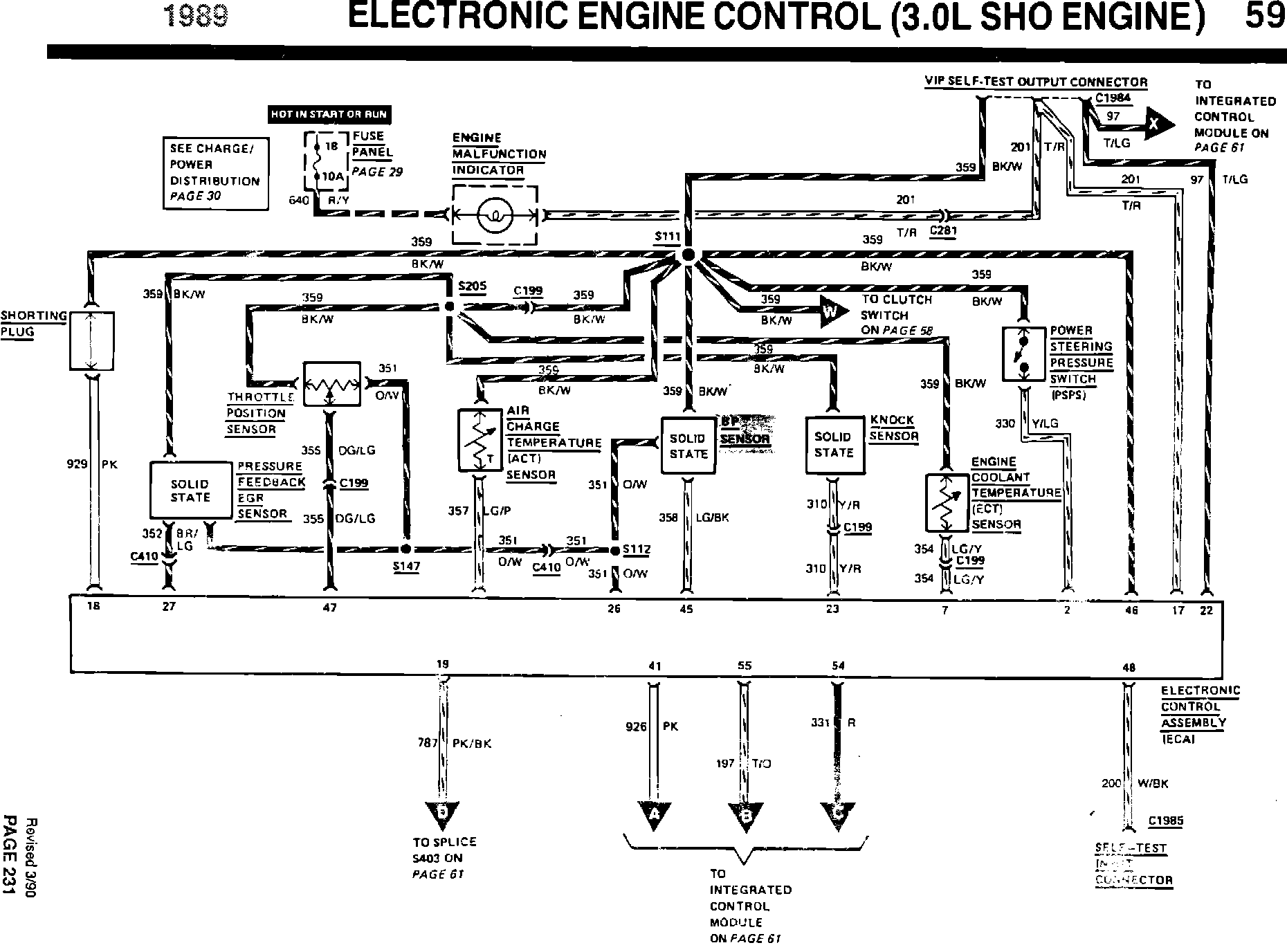

ACTION: Refer to the pages following this TSB article for the corrected schematic.

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 2800
