Engine Torque Specifications - Manual Revision

90ford15
SHOP MANUAL - 1989 - PAGES 21-12-19 AND 21-12-49 - TORQUE SPECIFICATIONS REVISED

Article No. 90-6B-34

FORD: 1989 TAURUS

LINCOLN-MERCURY: 1989 SABLE

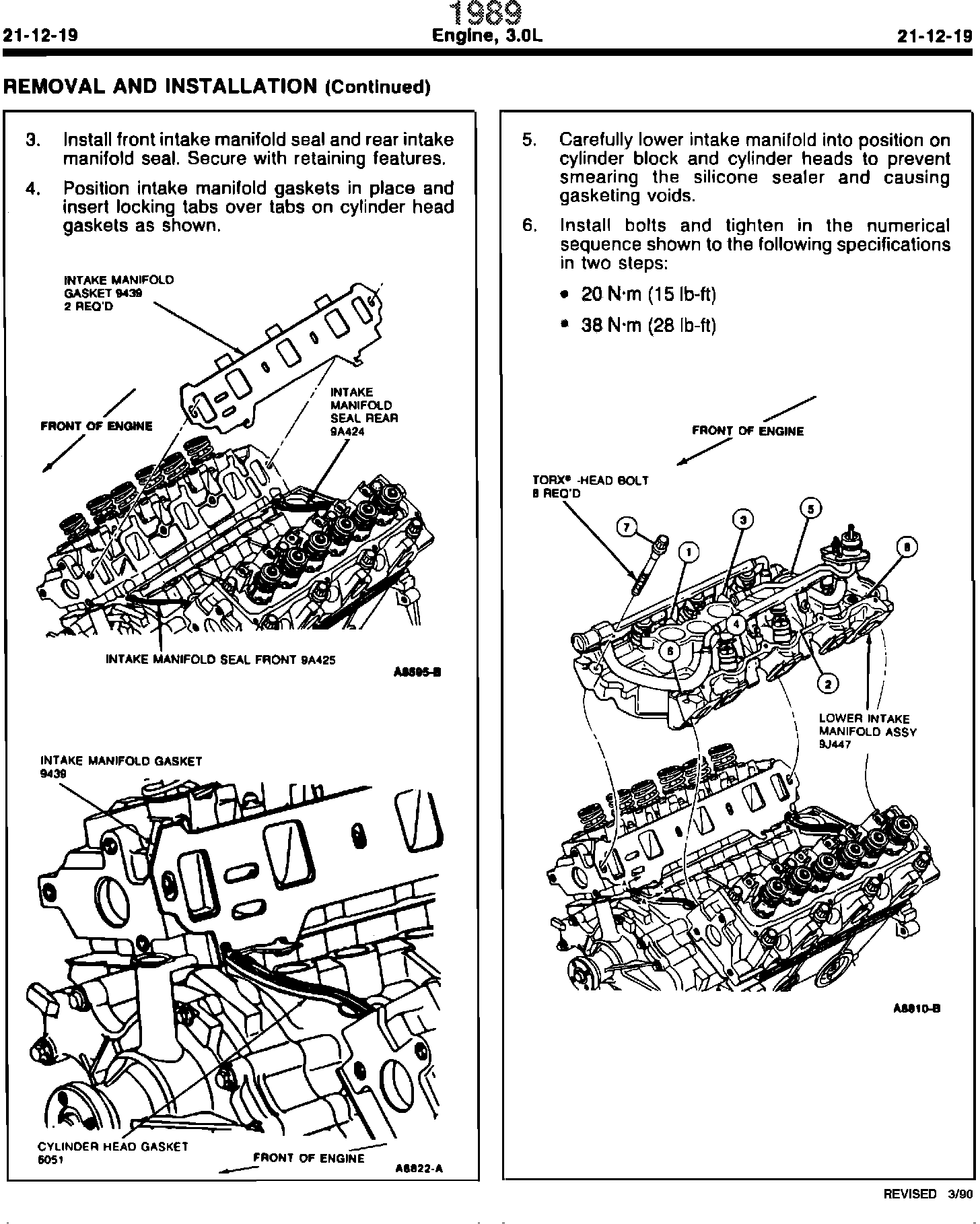

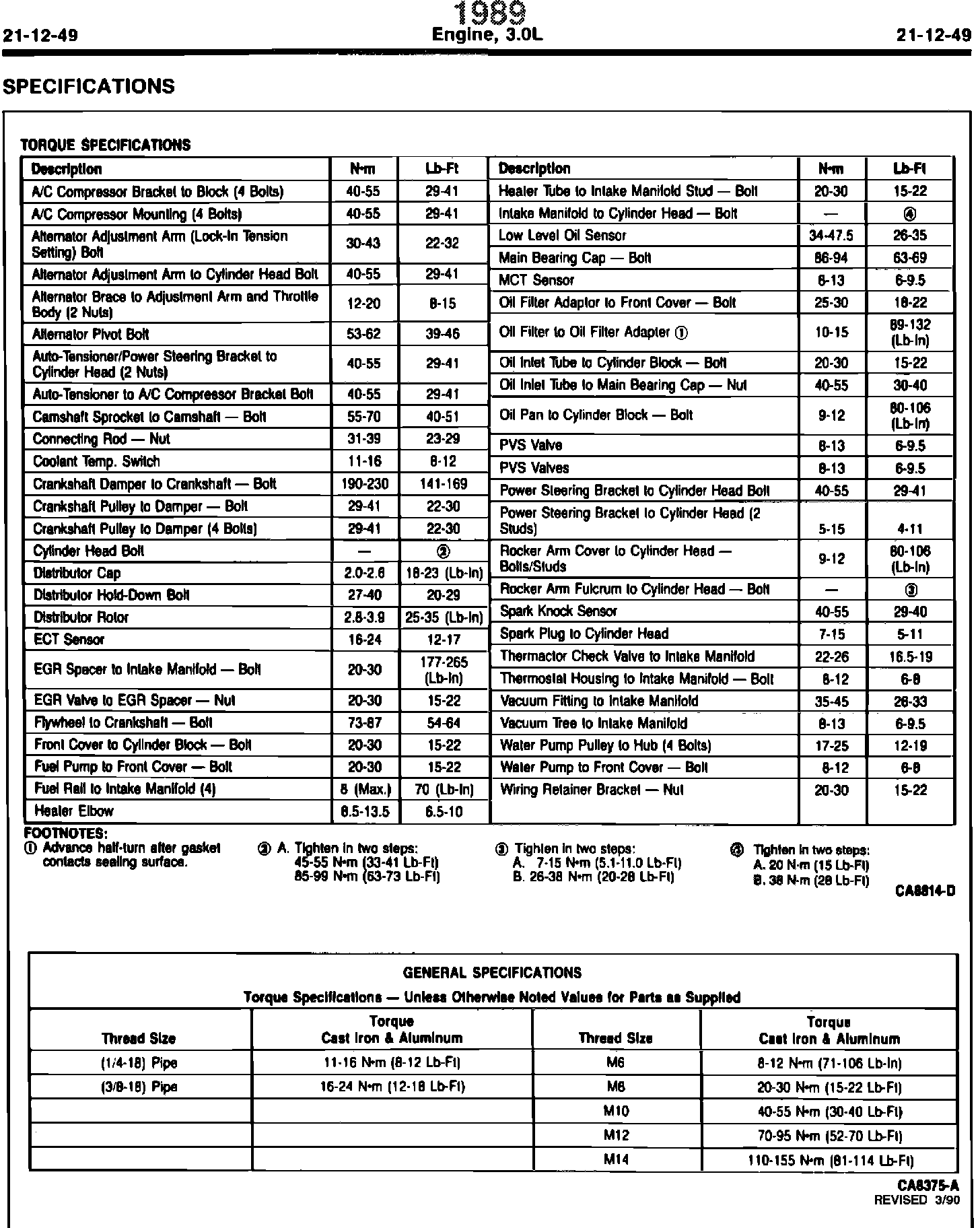

ISSUE: The two step torque settings shown under Step 6 on page 21-12-19 of the 1989 Taurus/Sable Shop Manual have been modified. The footnote 4 in the Torque Specifications chart for 3.0L Engines on page 21-12-49 of the 1989 Taurus/Sable Shop Manual has been modified and changed from three steps to two steps.

ACTION: Refer to the pages following this TSB article for the updated torque specifications and corrected procedure.

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 4800
