Primary Courtesy Lamp

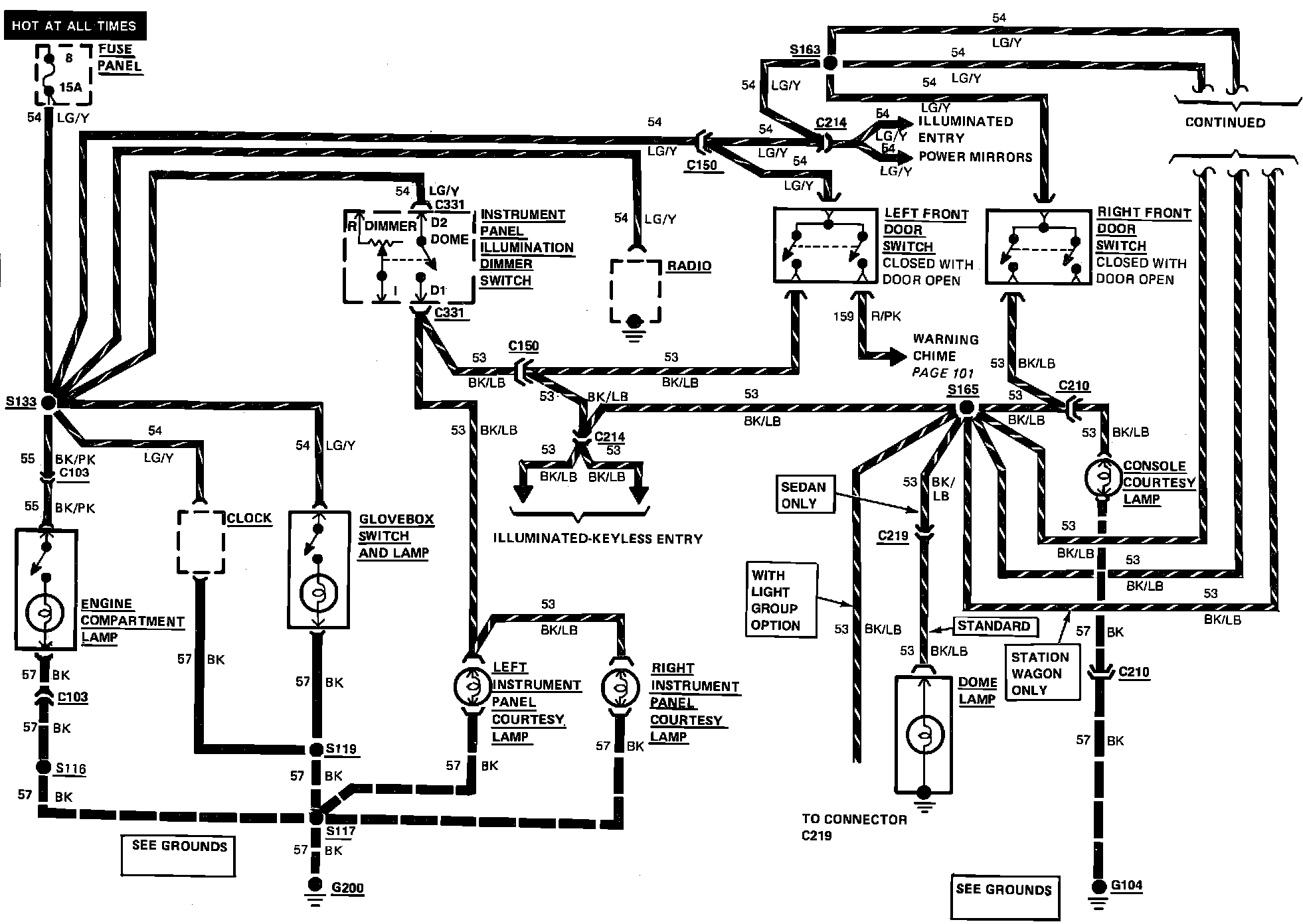

Courtesy Lamps Wiring Circuit:

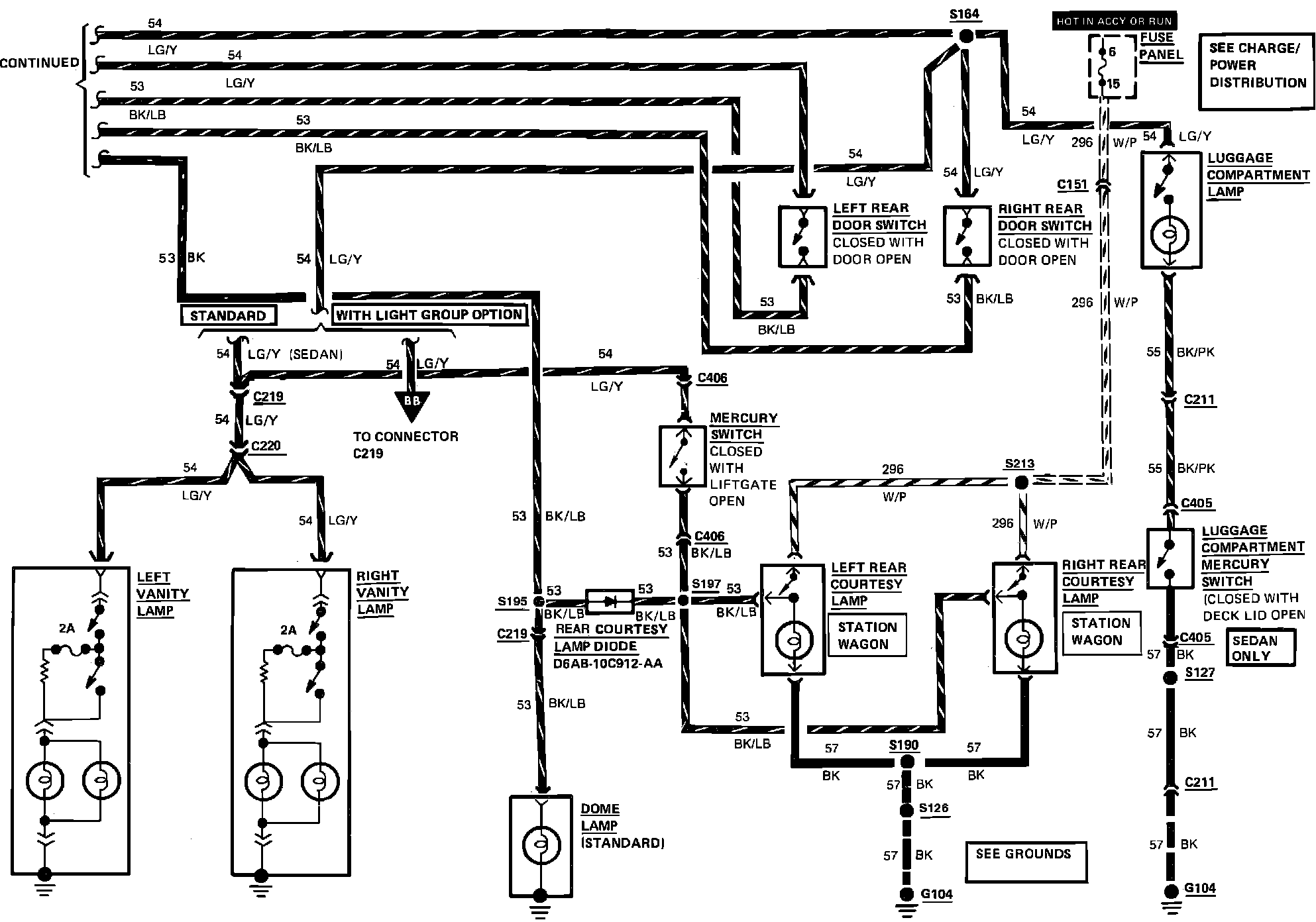

Courtesy Lamps Wiring Circuit:

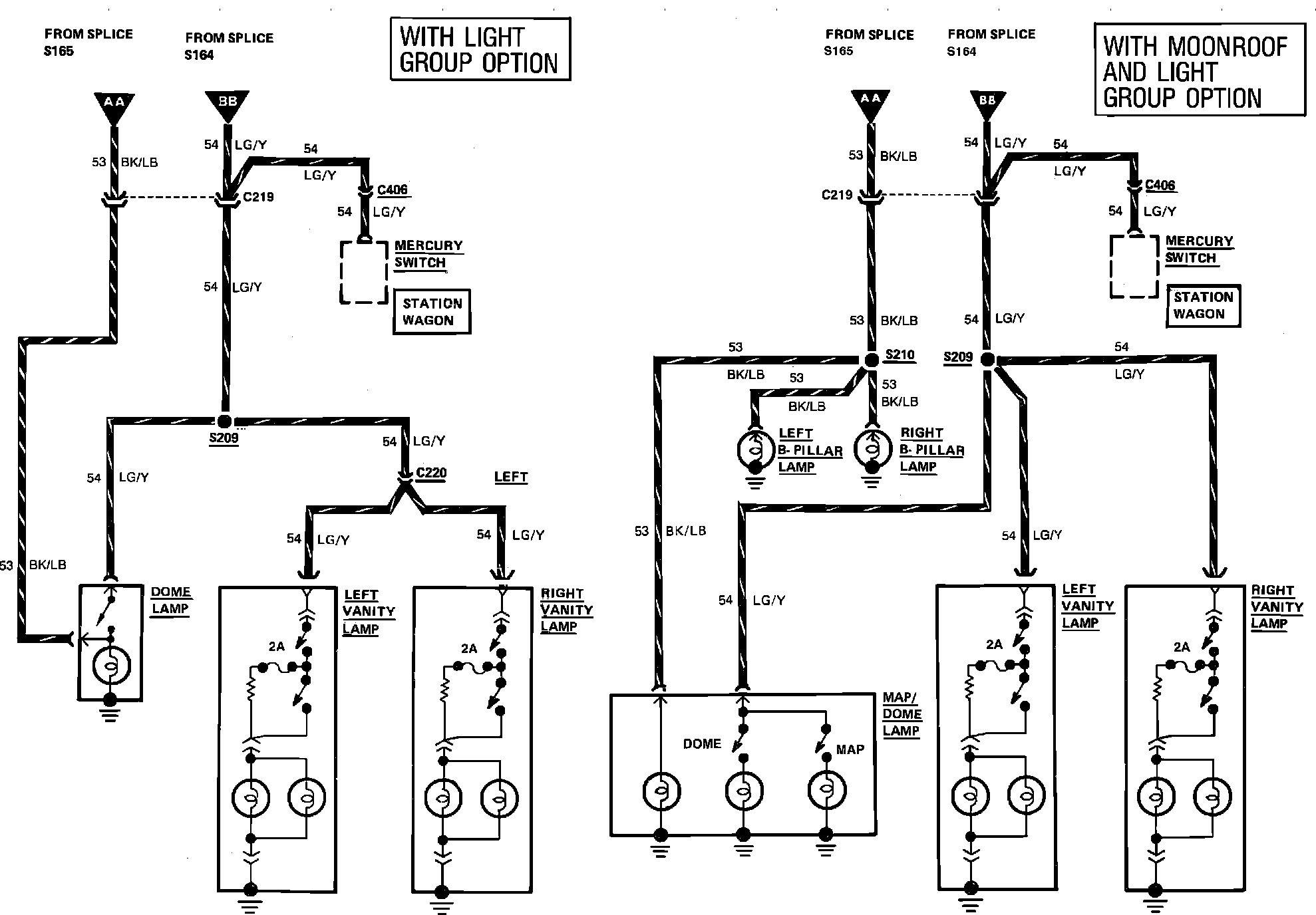

Courtesy Lamps Wiring Circuit:
