Home >> Mercury >> 1989 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Instrument Cluster >> Electronic >> Less EATC

Less EATC

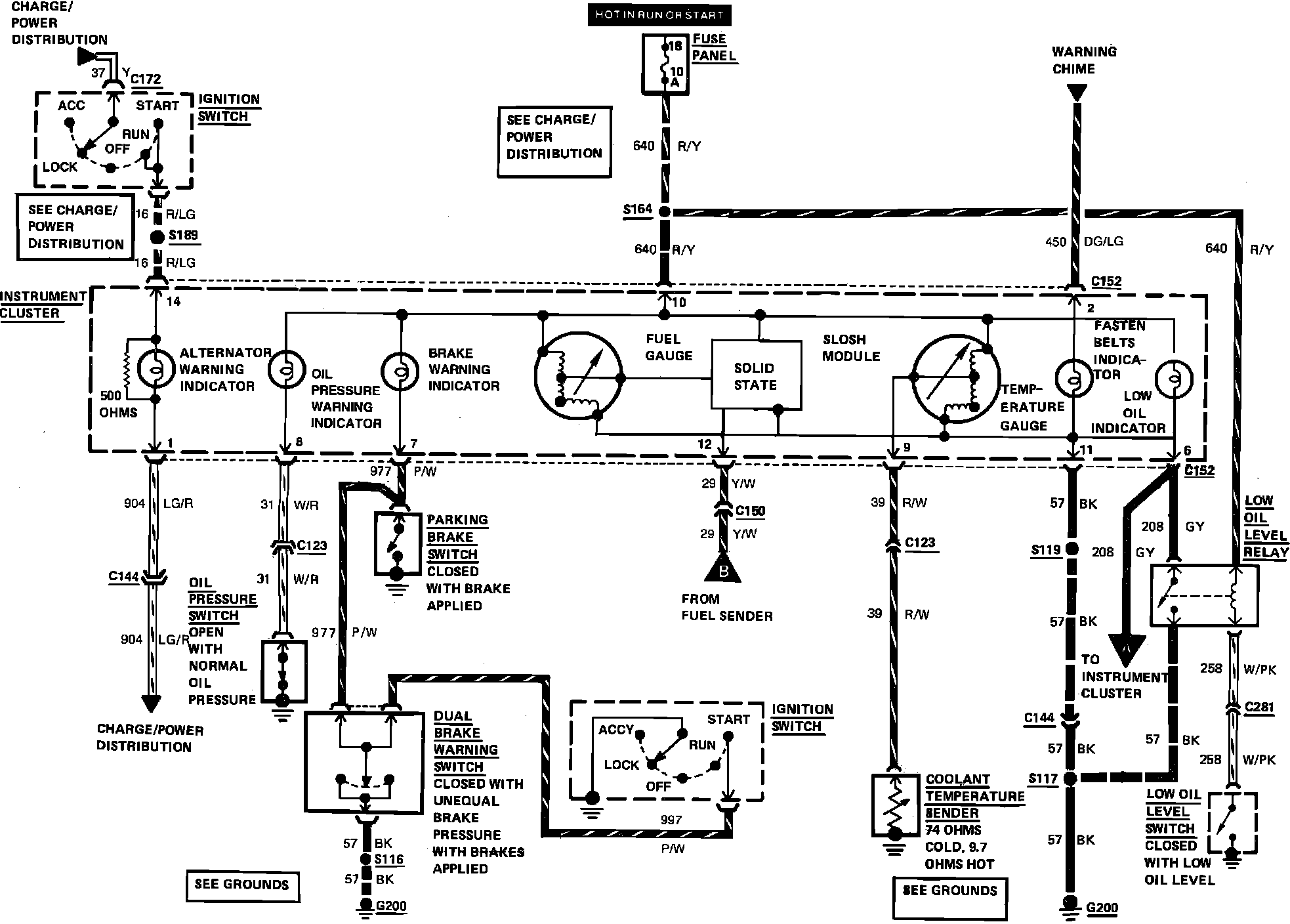

Instrument Cluster (Electronic) Wiring Circuit. Less EATC:

Instrument Cluster (Electronic) Wiring Circuit. Less EATC:
