Band Apply Servo: Service and Repair

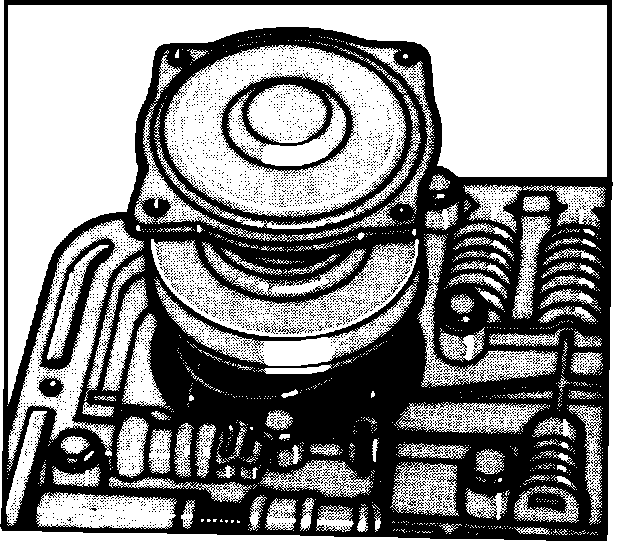

Fig. 7 Rear Servo Removal:

1. Raise and support vehicle, then drain transmission fluid.
2. Remove oil filter screws, gasket and on early models, three spacers.
3. Remove servo cover retaining screws, servo cover, piston and spring, Fig. 7.
4. Reverse procedure to install.
