Home >> Mercury >> 1989 >> Merkur Xr4ti L4-140 2.3L SOHC Turbo >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension Spring ( Coil / Leaf )

Suspension Spring ( Coil / Leaf )

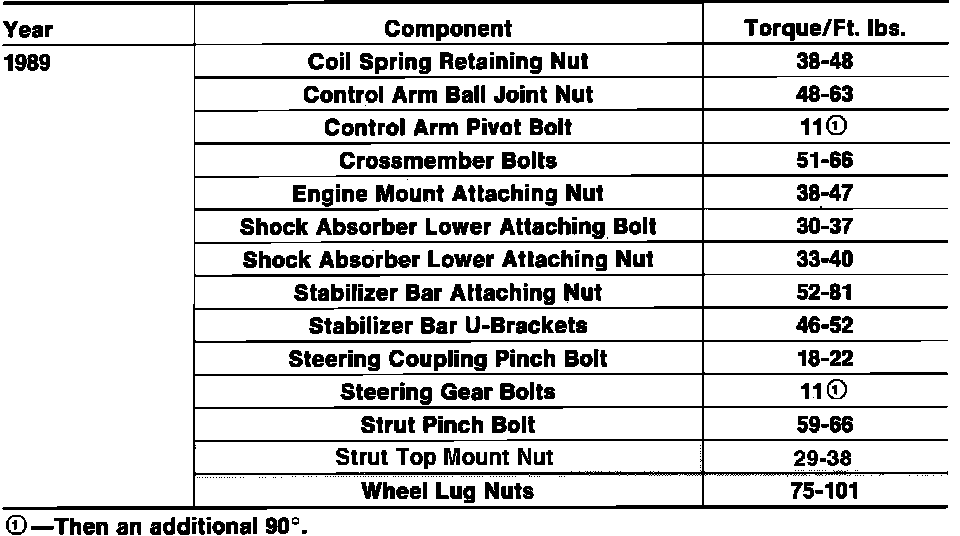

Tightening Specifications:

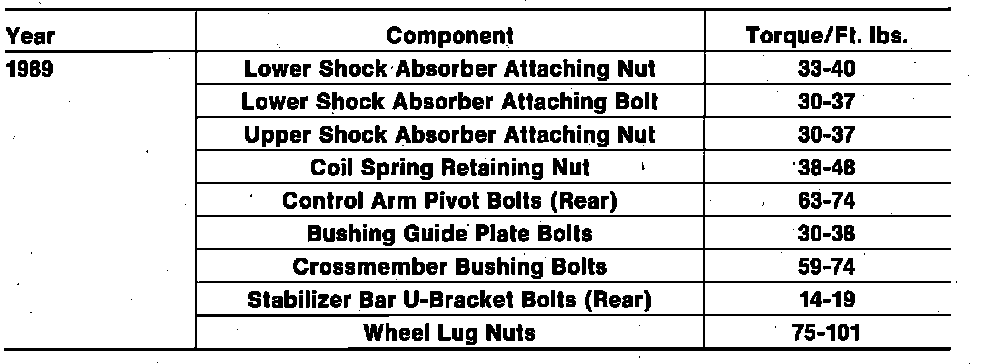

Tightening Specifications:
