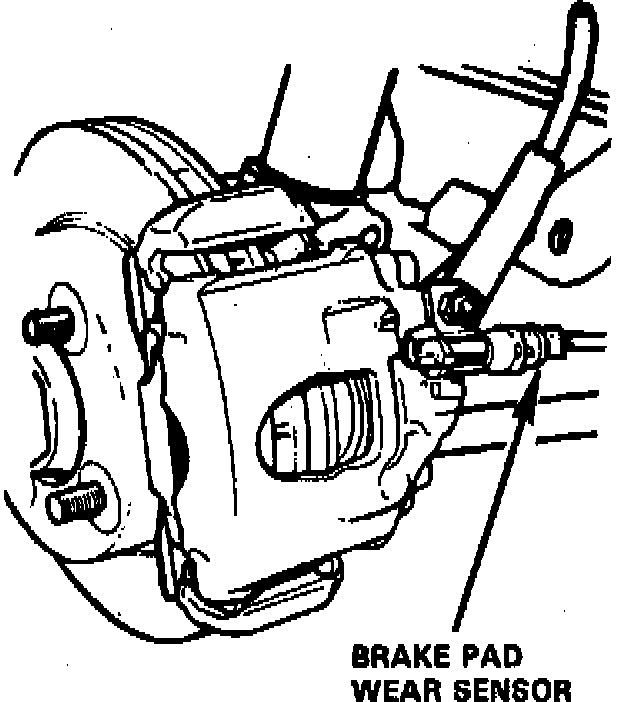

Brake Pad Wear Sensor: Locations

Brake Caliper.:




Inside Respective Disc Pads

Applicable to: XR4Ti
