Home >> Mercury >> 1989 >> Merkur Xr4ti L4-140 2.3L SOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> KN - Turbo Boost >> KN3 - KN5

KN3 - KN5

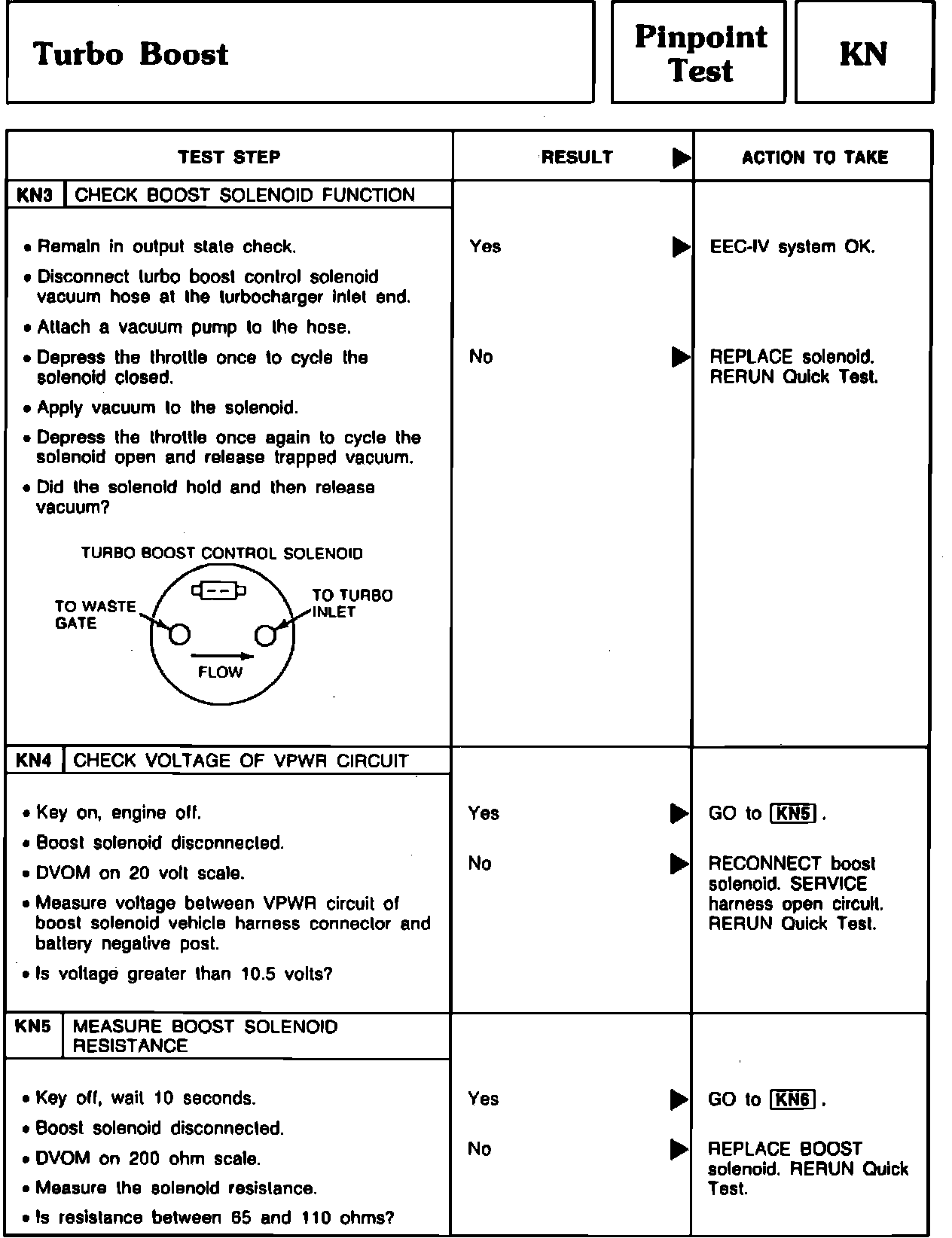

Pinpoint Test KN3 Thru KN5 - Turbo Boost:





*** UPDATED BY TSB #9018B26 09-07-90
