Merkur Xr4ti L4-140 2.3L SOHC Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests
>>
KM - WOT A/C Cut-Off (WAC) A/C Demand
>>
KM10 - KM13
KM10 - KM13

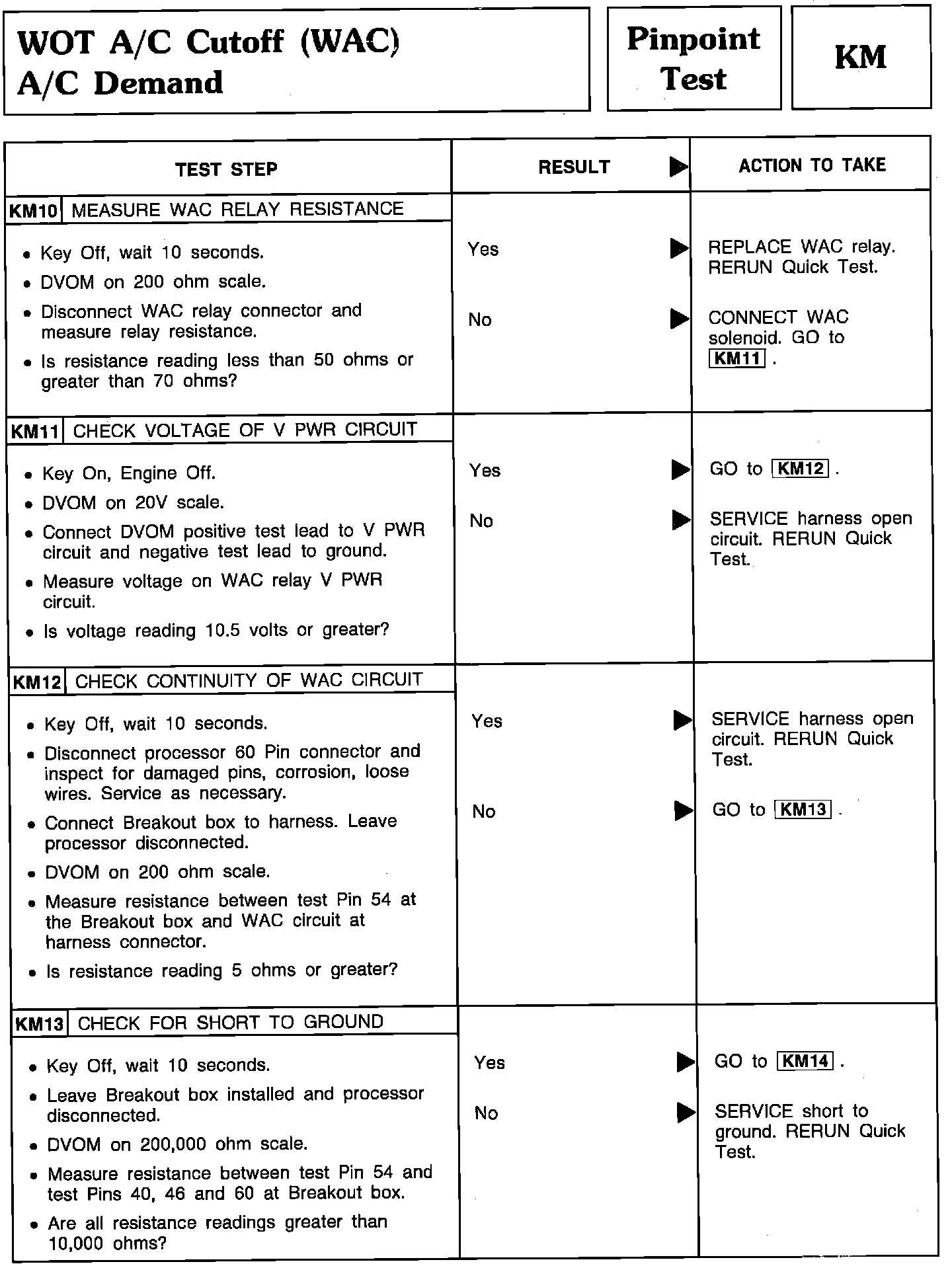

Pinpoint Test KM10 Thru KM13 - WOT A/C Cutoff (WAC) A/C Demand:
