Home >> Mercury >> 1989 >> Merkur Xr4ti L4-140 2.3L SOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> DK - Vane Air Flow Sensor (VAF) >> DK20 - DK22

DK20 - DK22

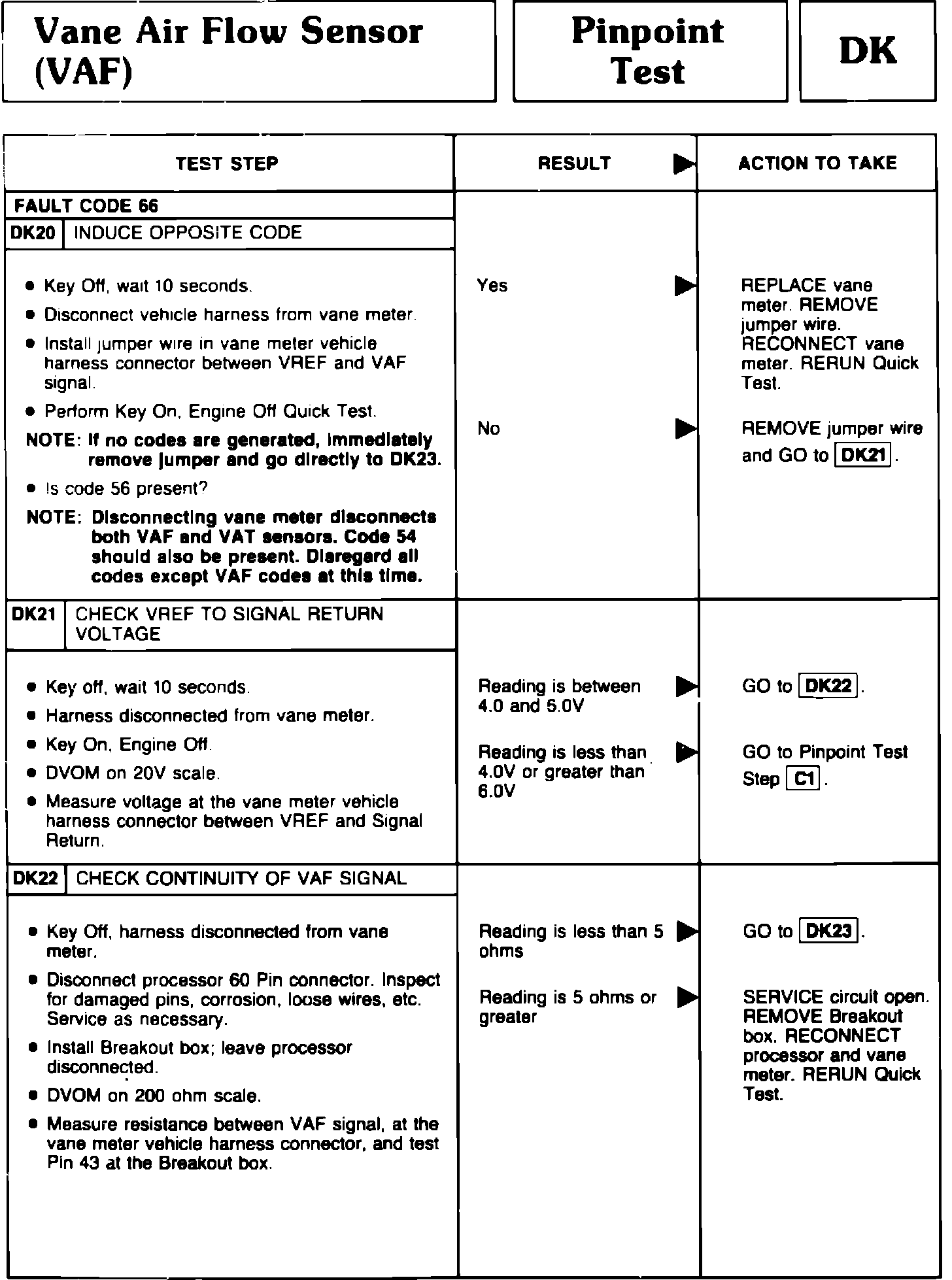

Pinpoint Test DK20 - DK22. Vane Air Flow (VAF) Sensor:
