Home >> Mercury >> 1989 >> Merkur Xr4ti L4-140 2.3L SOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Malfunction Indicator Lamp >> Diagrams >> Electrical Diagrams >> Auxiliary

Auxiliary

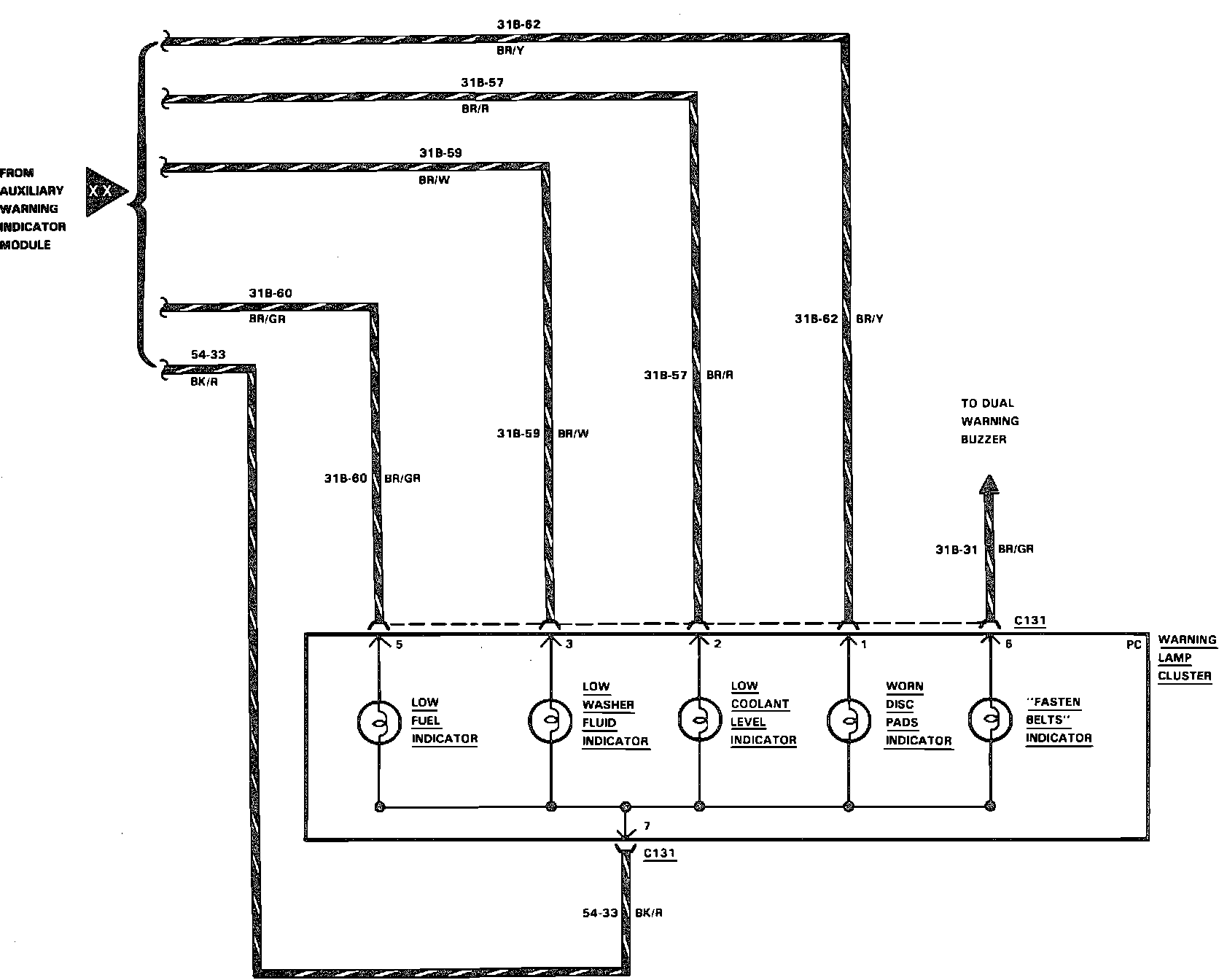

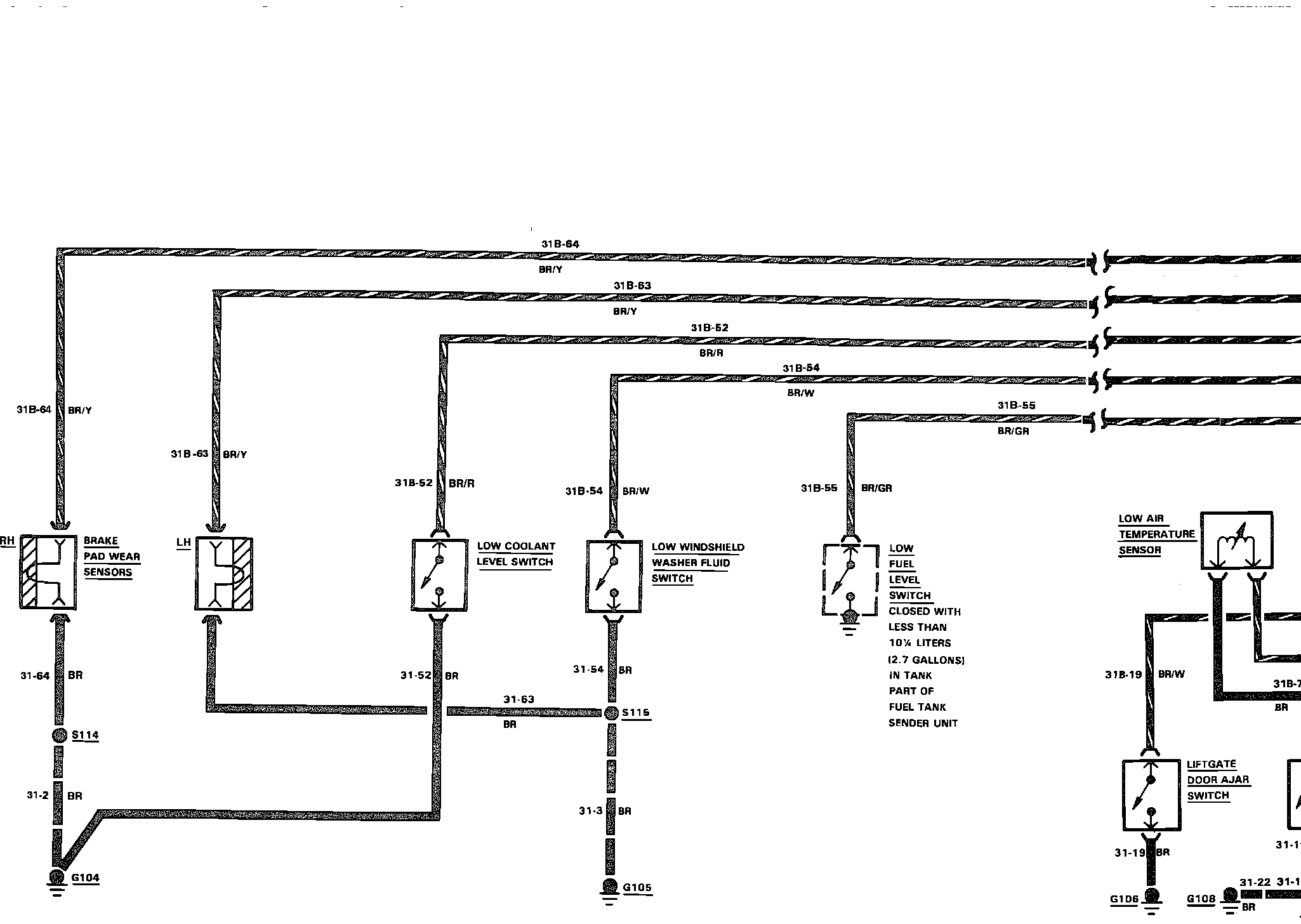

a�kAuxiliary Warning Indicators:



Auxiliary Warning Indicators:
