Home >> Mercury >> 1989 >> Merkur Xr4ti L4-140 2.3L SOHC Turbo >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Pinpoint Tests >> 9: Servo Leak Test

9: Servo Leak Test

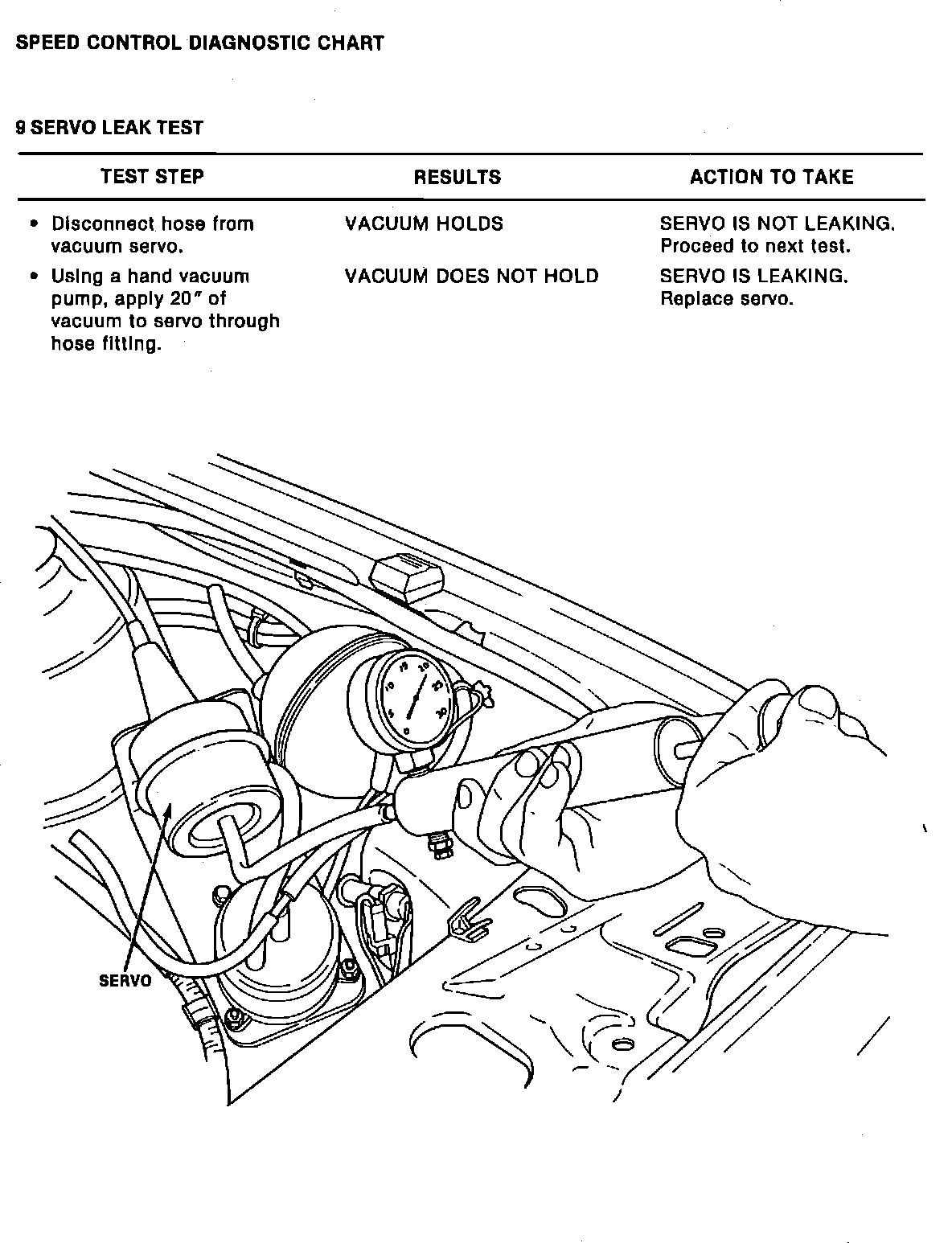

Fig. 51 Diagnosis and Testing (Part 8 Of 24):
