7: Vacuum Valve Electrical Test
7: Vacuum Valve Electrical Test

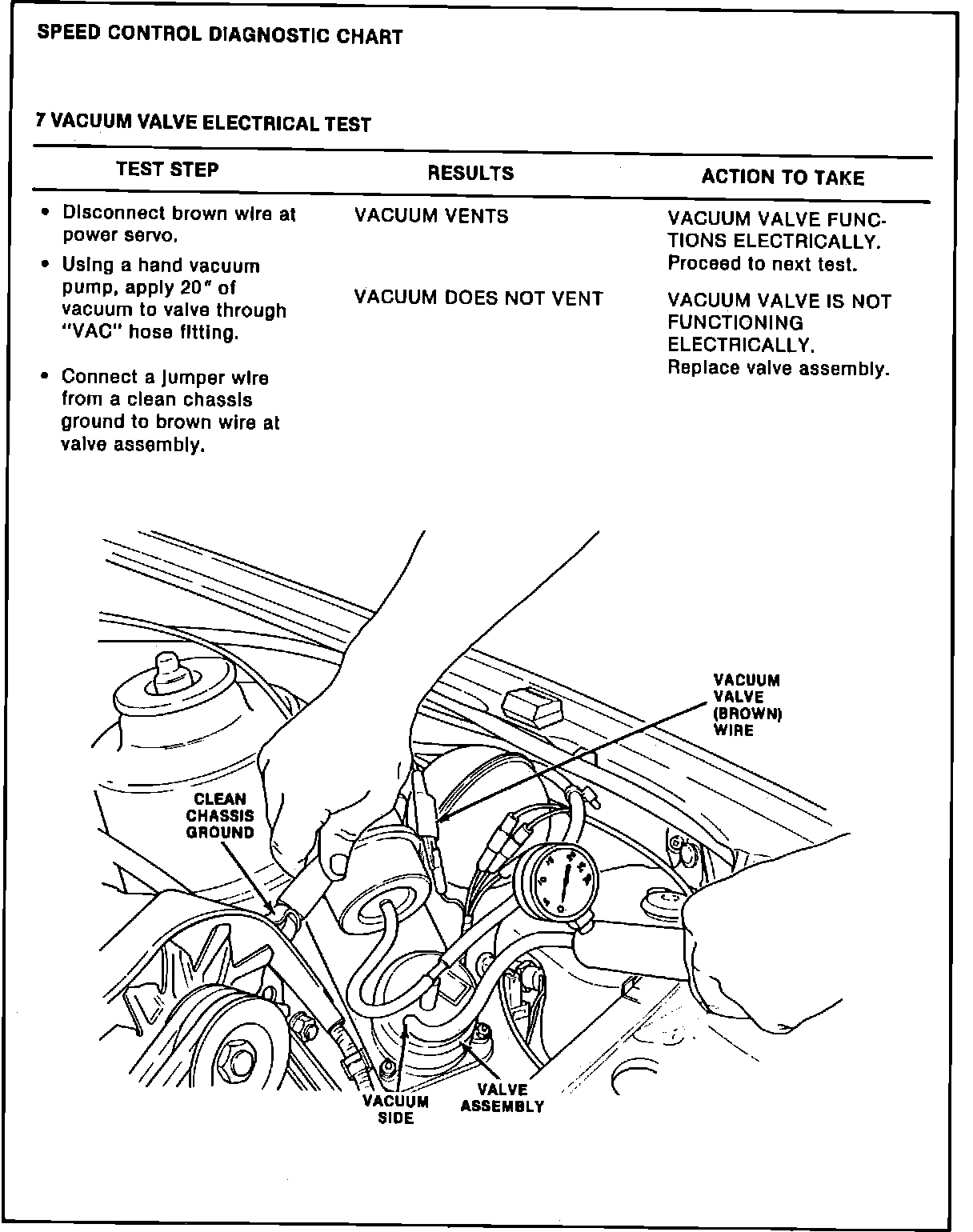

Fig. 51 Diagnosis and Testing (Part 6 Of 24):
