5: Vacuum Reservoir Check Valve Test
5: Vacuum Reservoir Check Valve Test

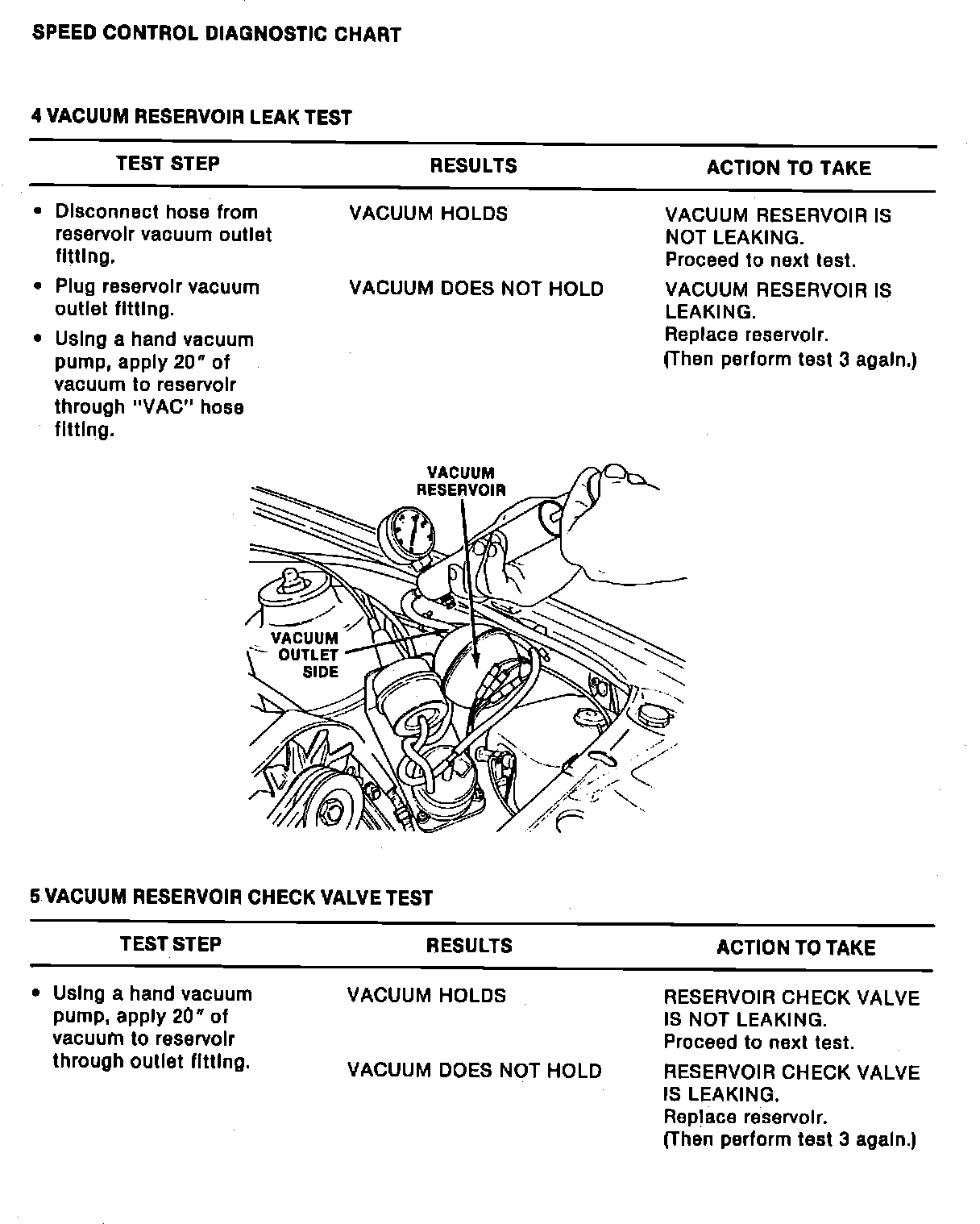

Fig. 51 Diagnosis and Testing (Part 4 Of 24):
