FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1989
>>
Merkur Xr4ti L4-140 2.3L SOHC Turbo
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Pinpoint Tests
>>
27: Set/Decel Signal From Set Switch
27: Set/Decel Signal From Set Switch

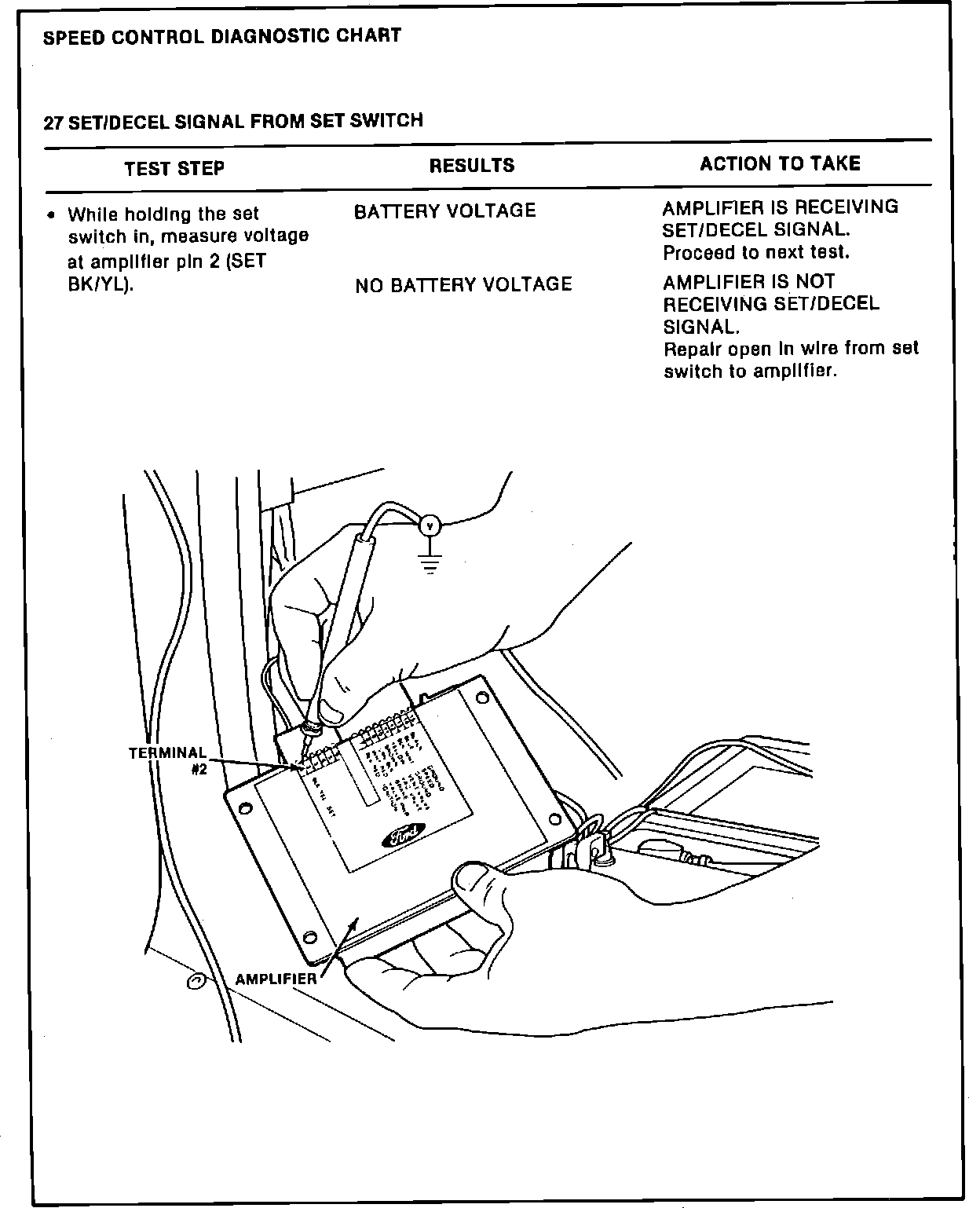

Fig. 51 Diagnosis and Testing (Part 24 Of 24):
