23: Amplifier Ground Circuits
23: Amplifier Ground Circuits

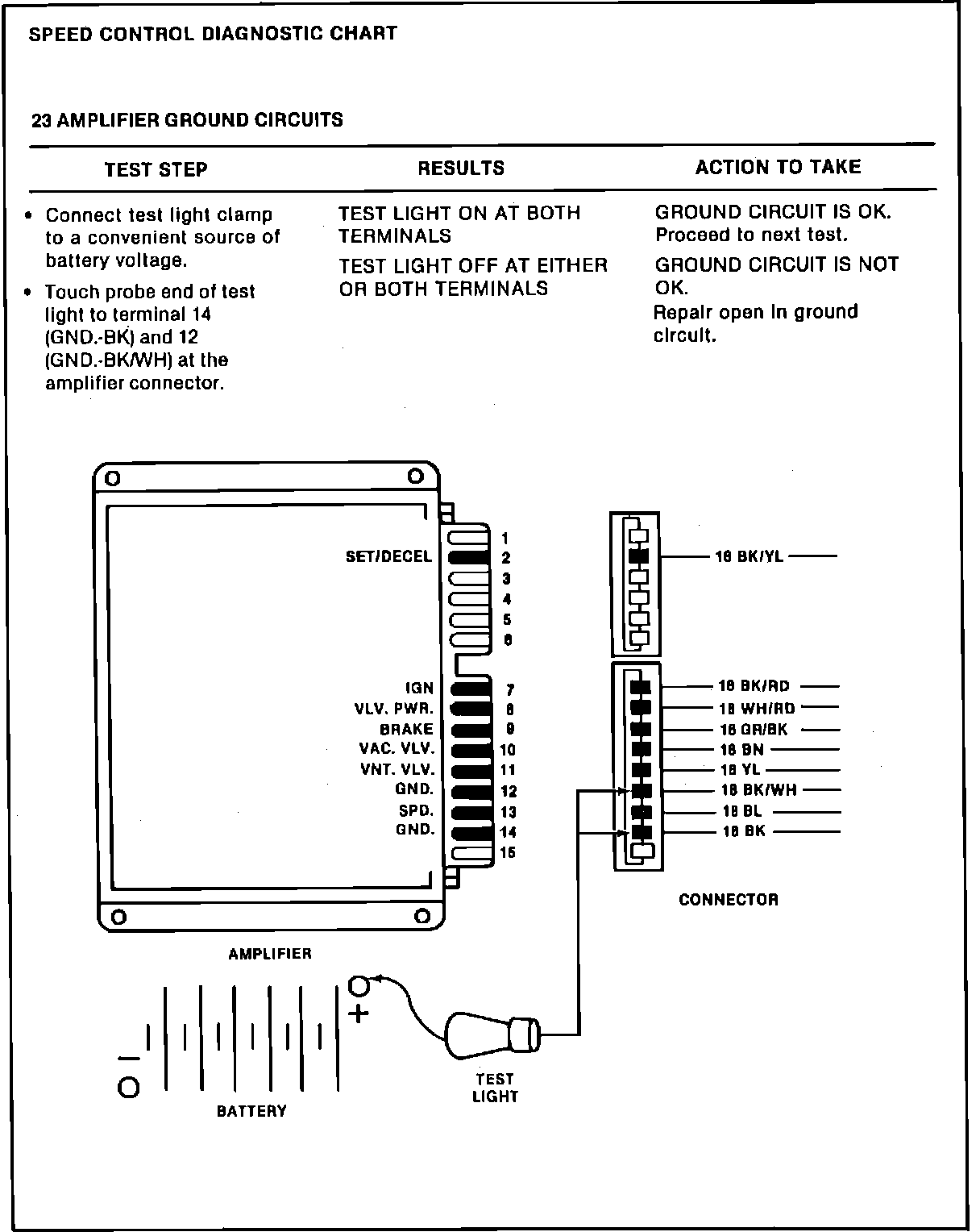

Fig. 51 Diagnosis and Testing (Part 19 Of 24):
