21: Power Feed to Amp From On/Off Switch
21: Power Feed to Amp From On/Off Switch

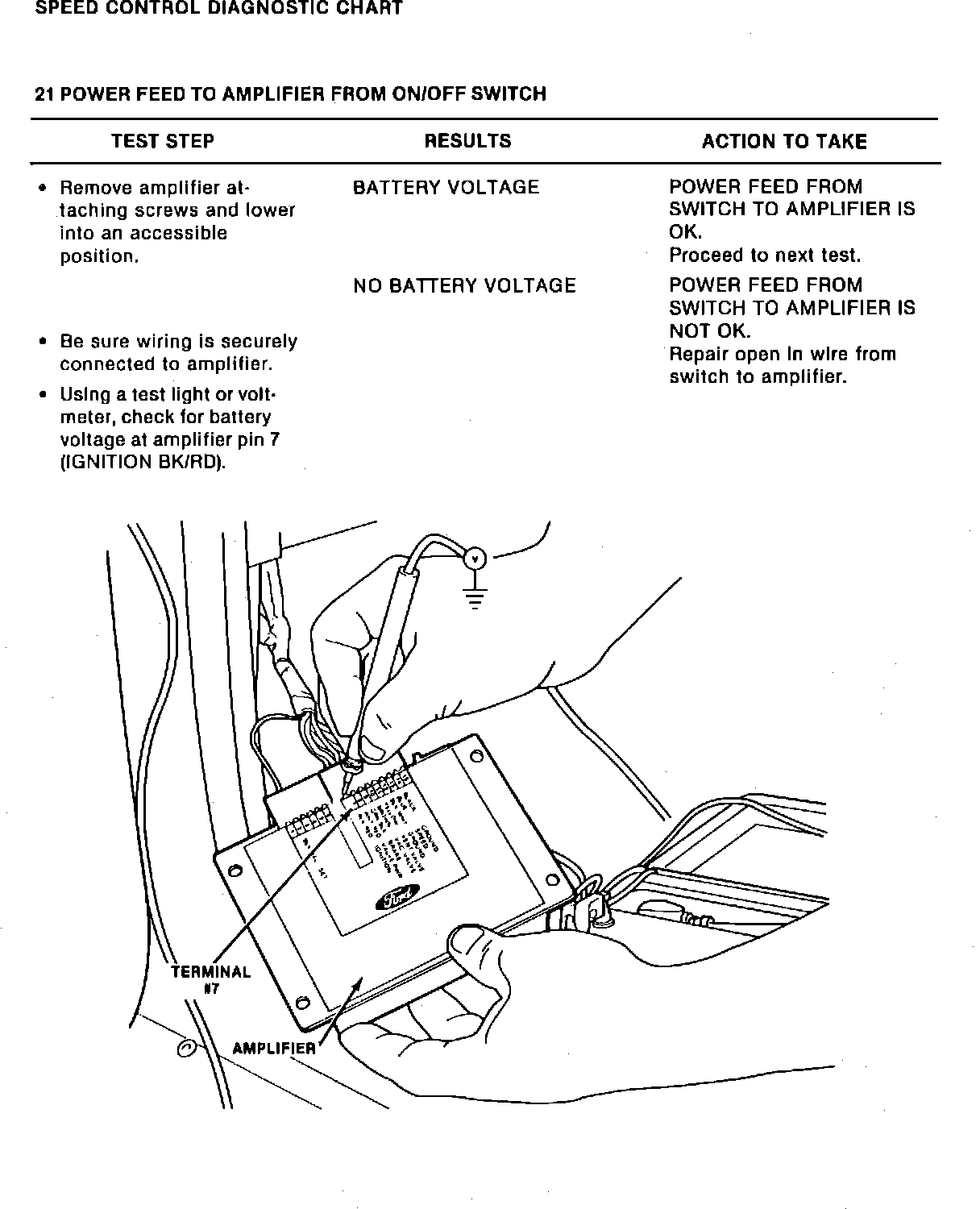

Fig. 51 Diagnosis and Testing (Part 17 Of 24):
