19: Power Feed to Set Switch
19: Power Feed to Set Switch

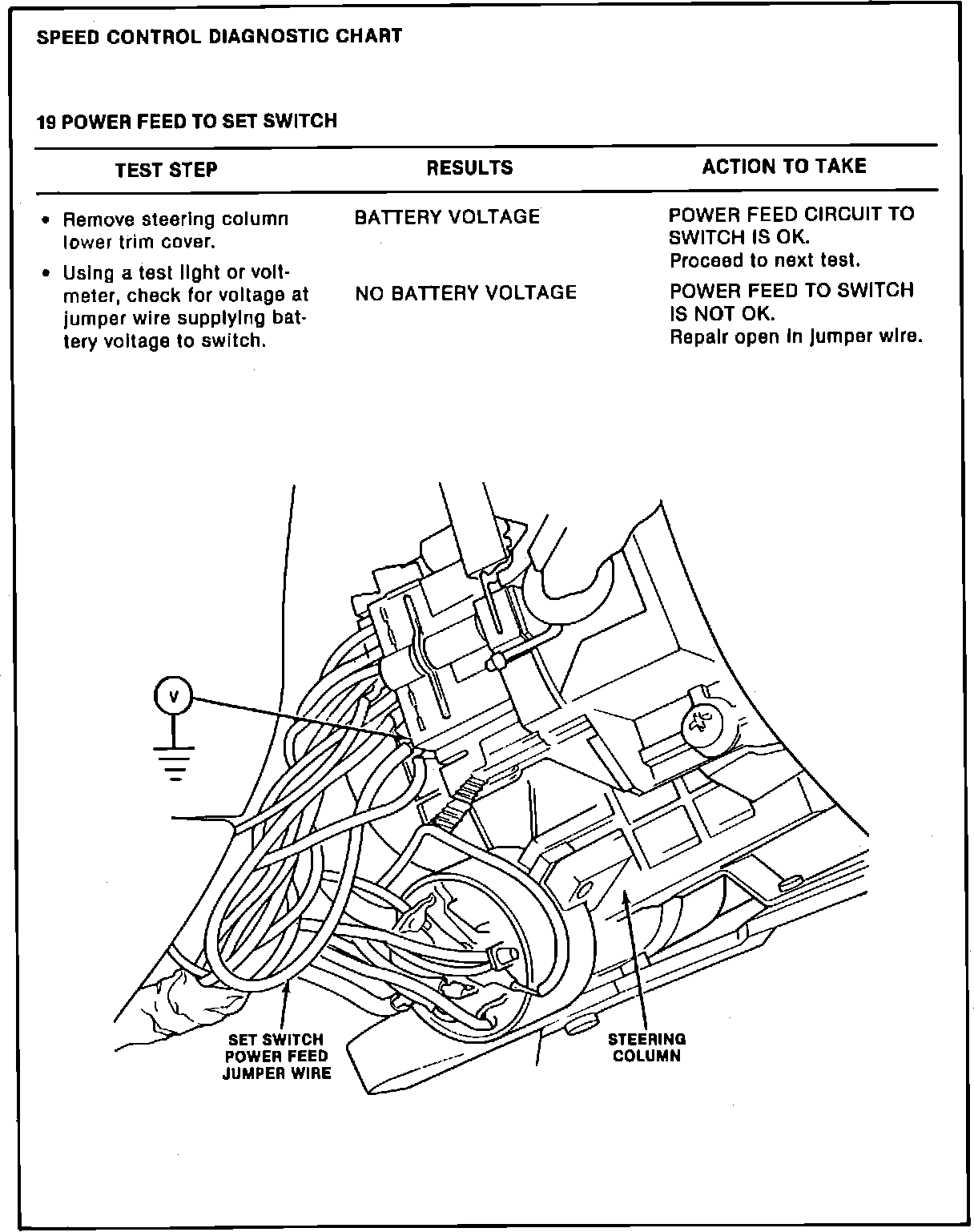

Fig. 51 Diagnosis and Testing (Part 15 Of 24):
