10 - 12 Linkage/Servo,Throttle Cable/Throttle Lever Test
10 - 12 Linkage/Servo,Throttle Cable/Throttle Lever Test

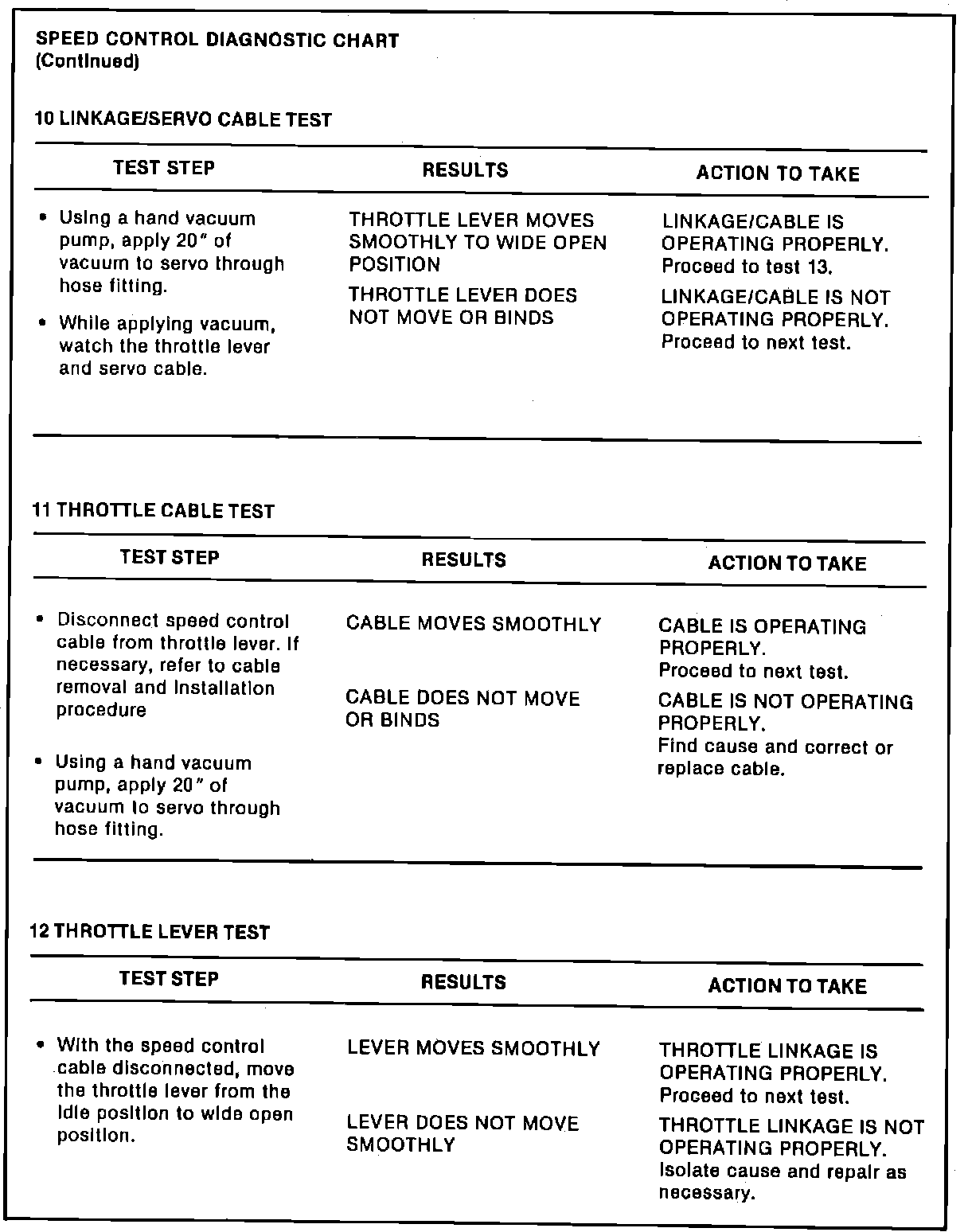

Fig. 51 Diagnosis and Testing (Part 9 Of 24):
