Home >> Mercury >> 1989 >> Merkur Scorpio V6-179 2.9L >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection

Wiper and Washer Systems: Testing and Inspection

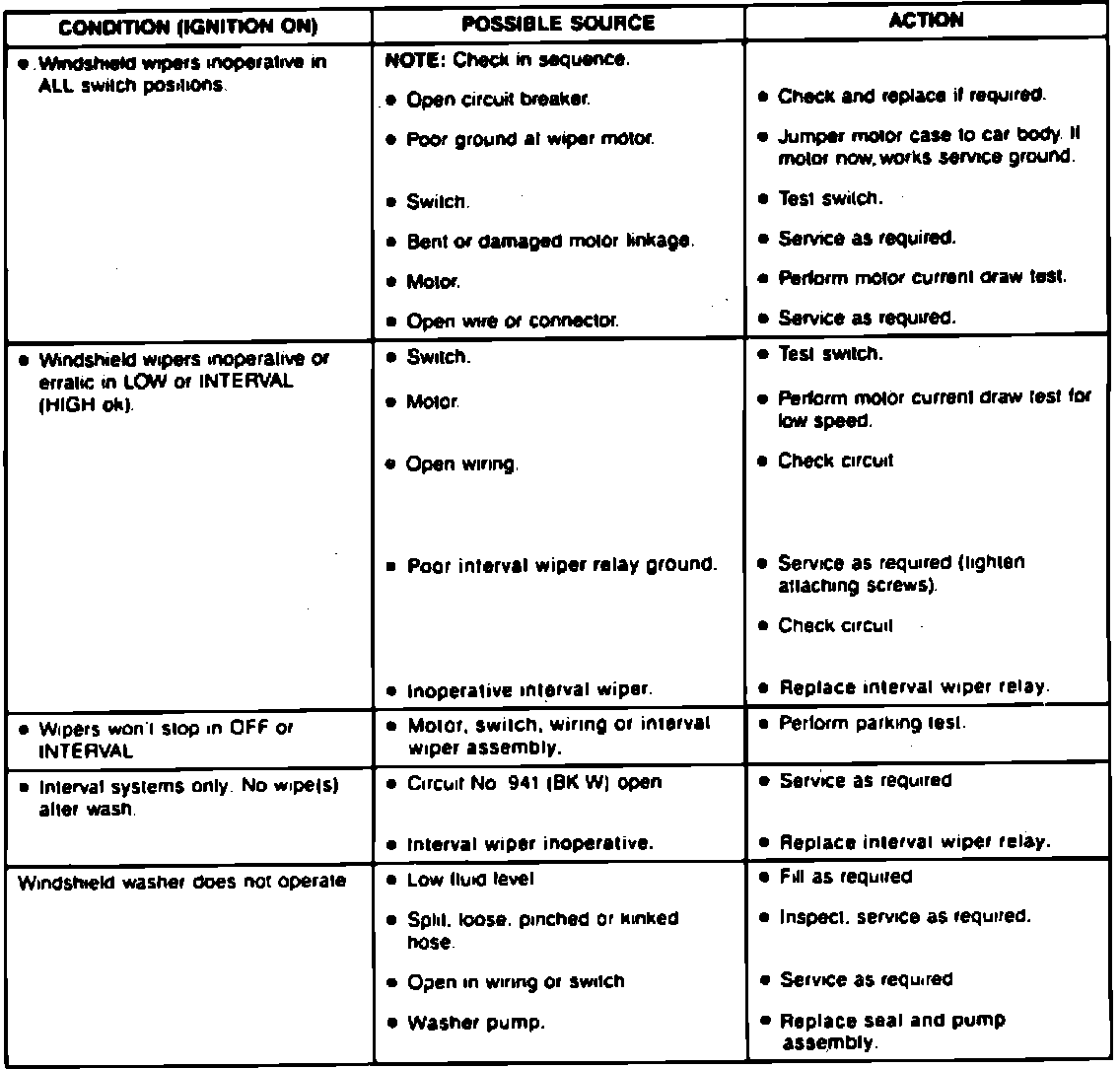

Fig. 14 Wiper System Diagnosis:
