A/T - A4LD Valve Body Shuttle Ball Location Revised

90ford45
^ SHOP MANUAL-1988-PAGE 17-08-41-A4LD VALVE BODY SHUTTLE BALL LOCATION-REVISED

^ SHOP MANUAL-1989-PAGE 17-08-84-A4LD VALVE BODY SHUTTLE BALL LOCATION-REVISED
Article No. 90-25B-26






MERKUR: 1988-89 SCORPIO


ISSUE: Six shuttle balls are shown in the illustration of the A4LD Valve Body on Page 17-08-41 of the 1988 and Page 17-08-84 of the 1989 Scorpio Shop Manuals. There are seven shuttle balls used in the valve body.

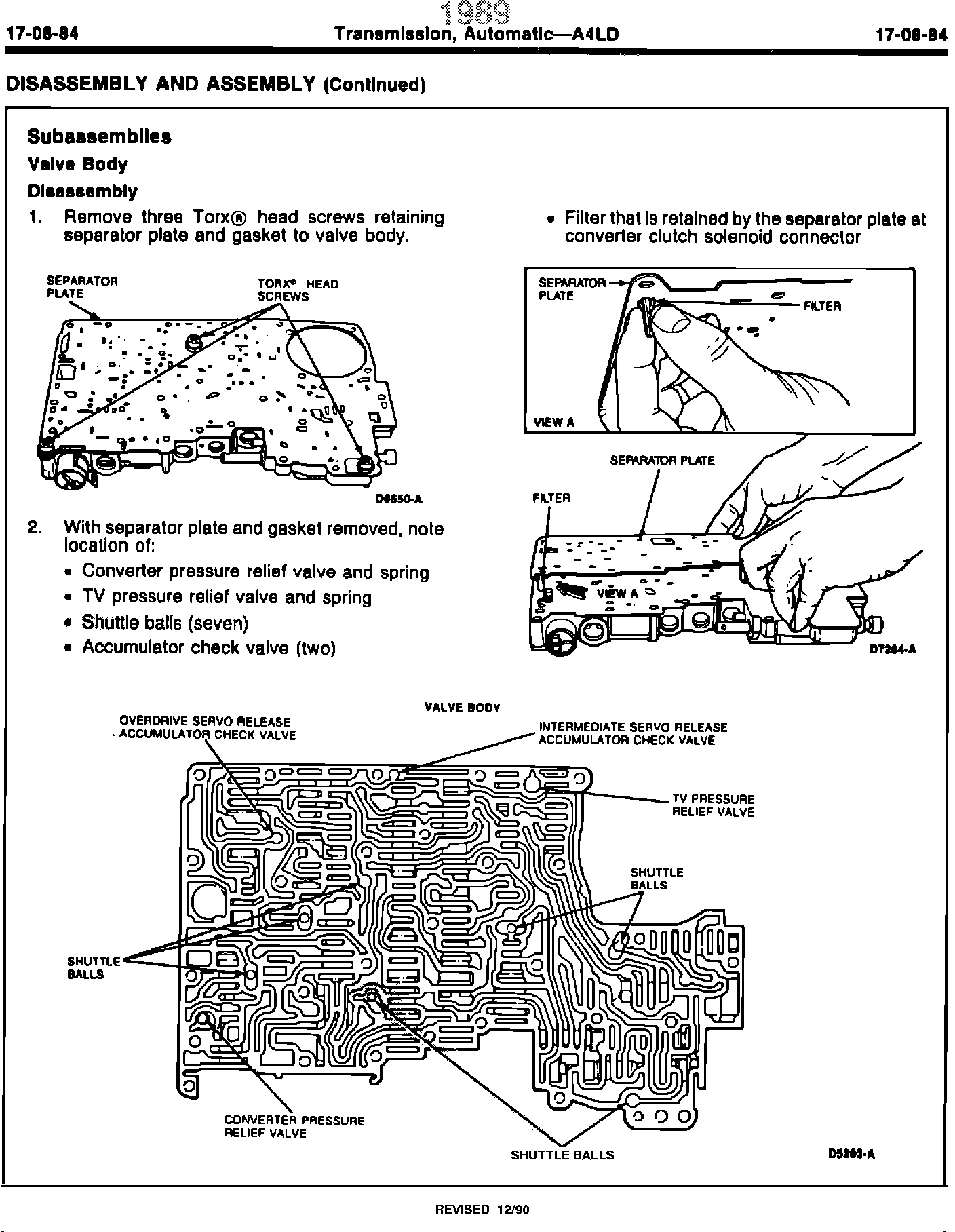

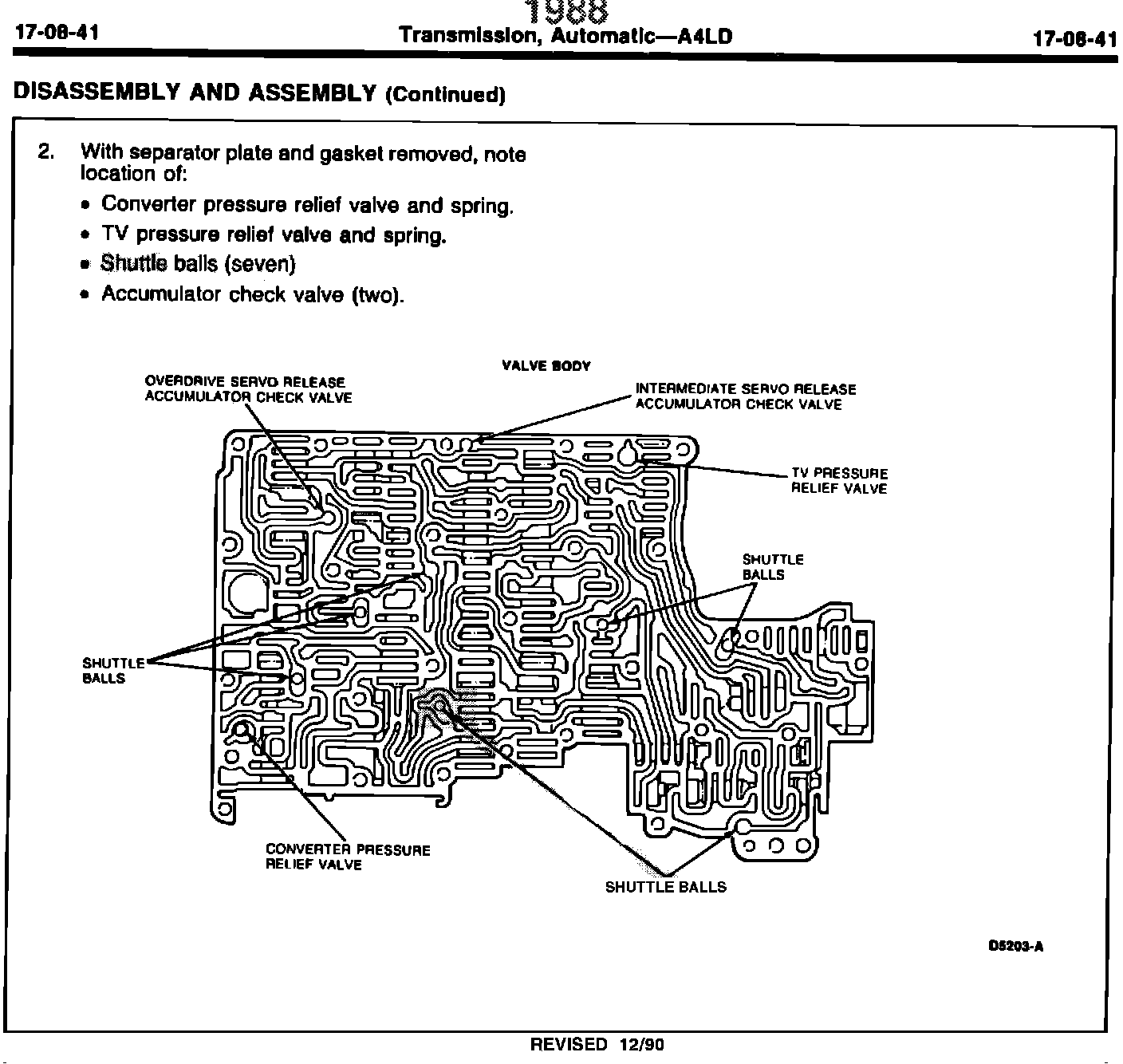

ACTION: Refer to the pages following this TSB article for the revised illustration.
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 590000
