A/T - A4LD Servo Cleaning and Inspection Revision

90ford45 SHOP MANUAL - 1988 - A4LD TRANSMISSION LOW - REVERSE SERVO CLEANING AND INSPECTION PROCEDURE REVISED
Article No. 90-25B-23



MERKUR: 1988-89 SCORPIO


ISSUE: The A4LD Transmission Cleaning And Inspection procedure on Page 17-01-31 of the 1988 and 1989 Scorpio Shop Manual indicates there is a servo spring behind the Low-Reverse Servo. The servo does not have a spring.

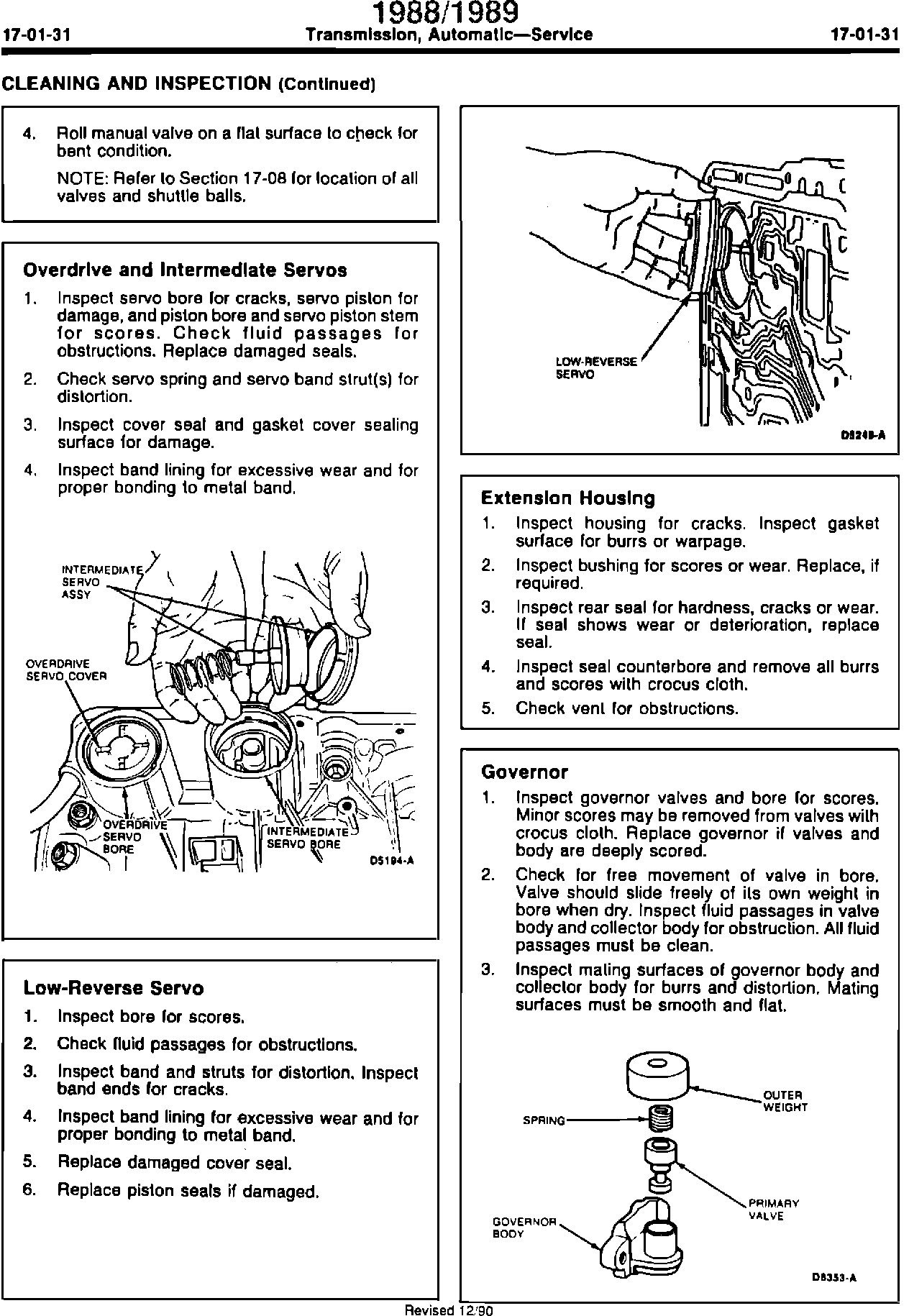

ACTION: Refer to the pages following this TSB article for the revised procedure and illustration.
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 590000
