A/T - A4LD Overdirve Clutch Specification Revision

90ford45

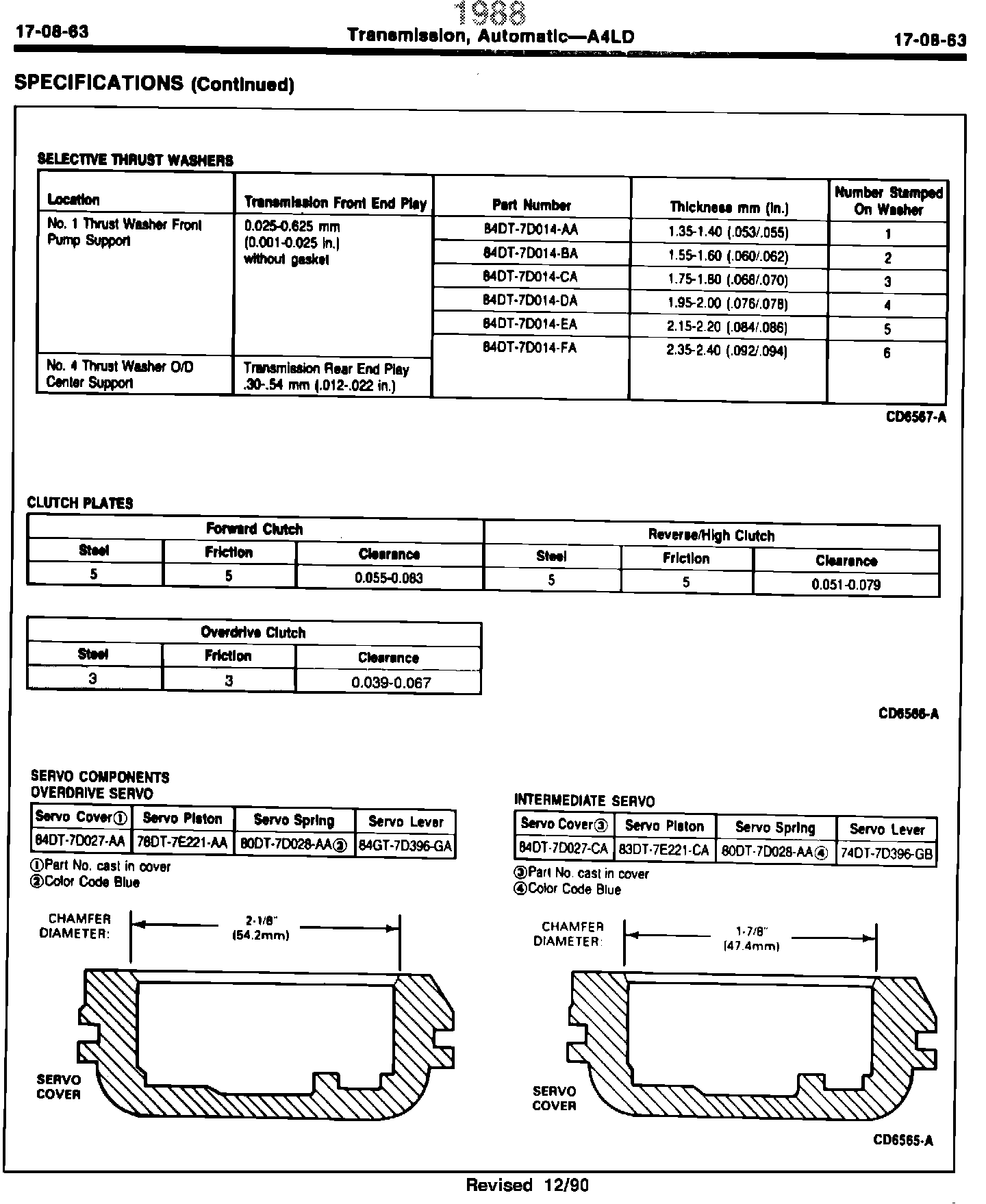

^ SHOP MANUAL-1988-PAGE 17-08-63-OVERDRIVE CLUTCH PACK SPECIFICATIONS REVISED

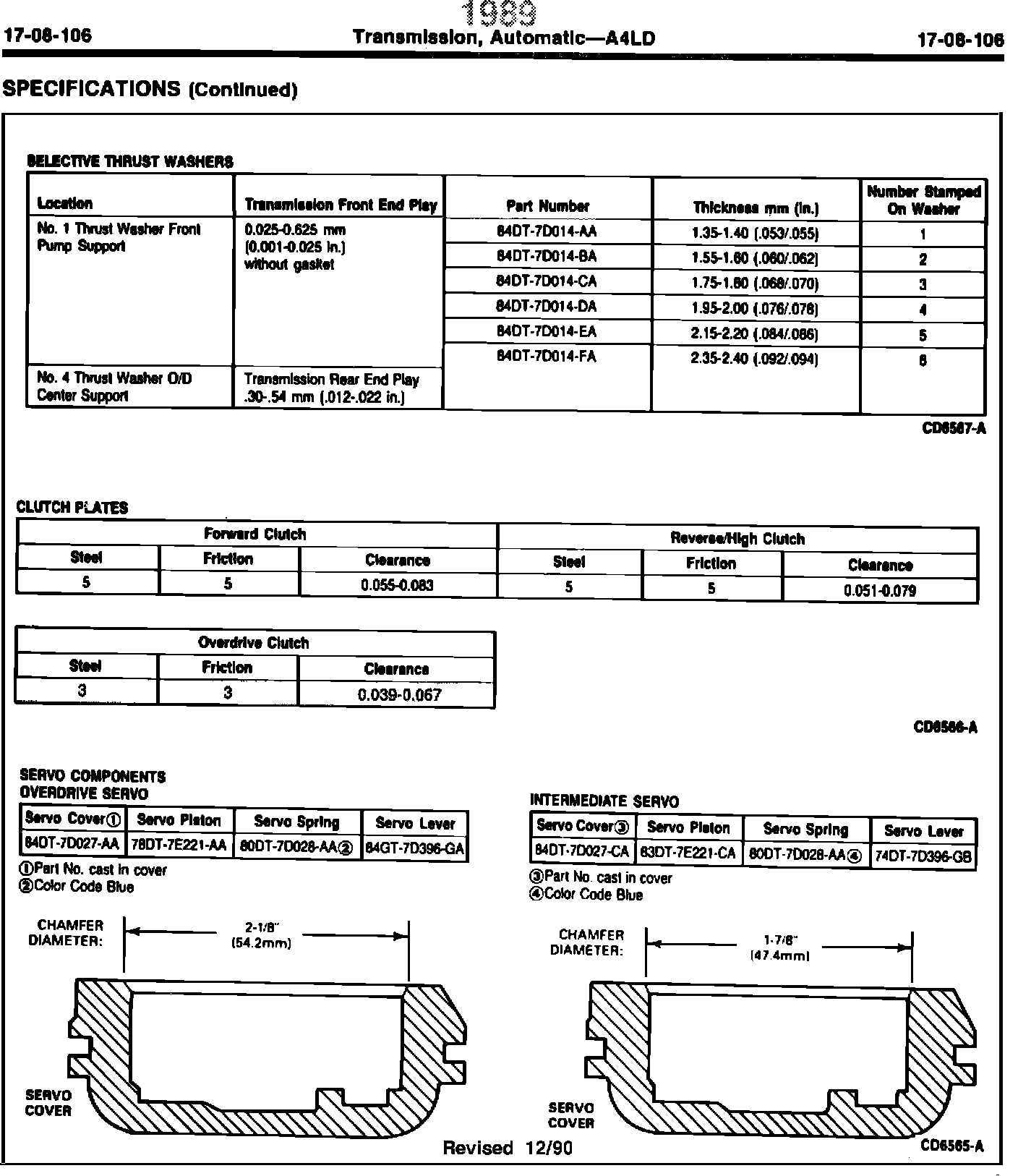

^ SHOP MANUAL-1989-PAGE 17-08-106-OVERDRIVE CLUTCH PACK SPECIFICATIONS REVISED
Article No. 90-25B-25






MERKUR: 1988-89 SCORPIO


ISSUE: The Overdrive Clutch Pack specifications, shown on Page 17-08-63 of the 1988 Scorpio Shop Manual and Page 17-08-106 of the 1989 Scorpio Shop Manual, are incorrect.

ACTION: Refer to the pages following this TSB article for the revised specification chart.
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 590000
