G1005

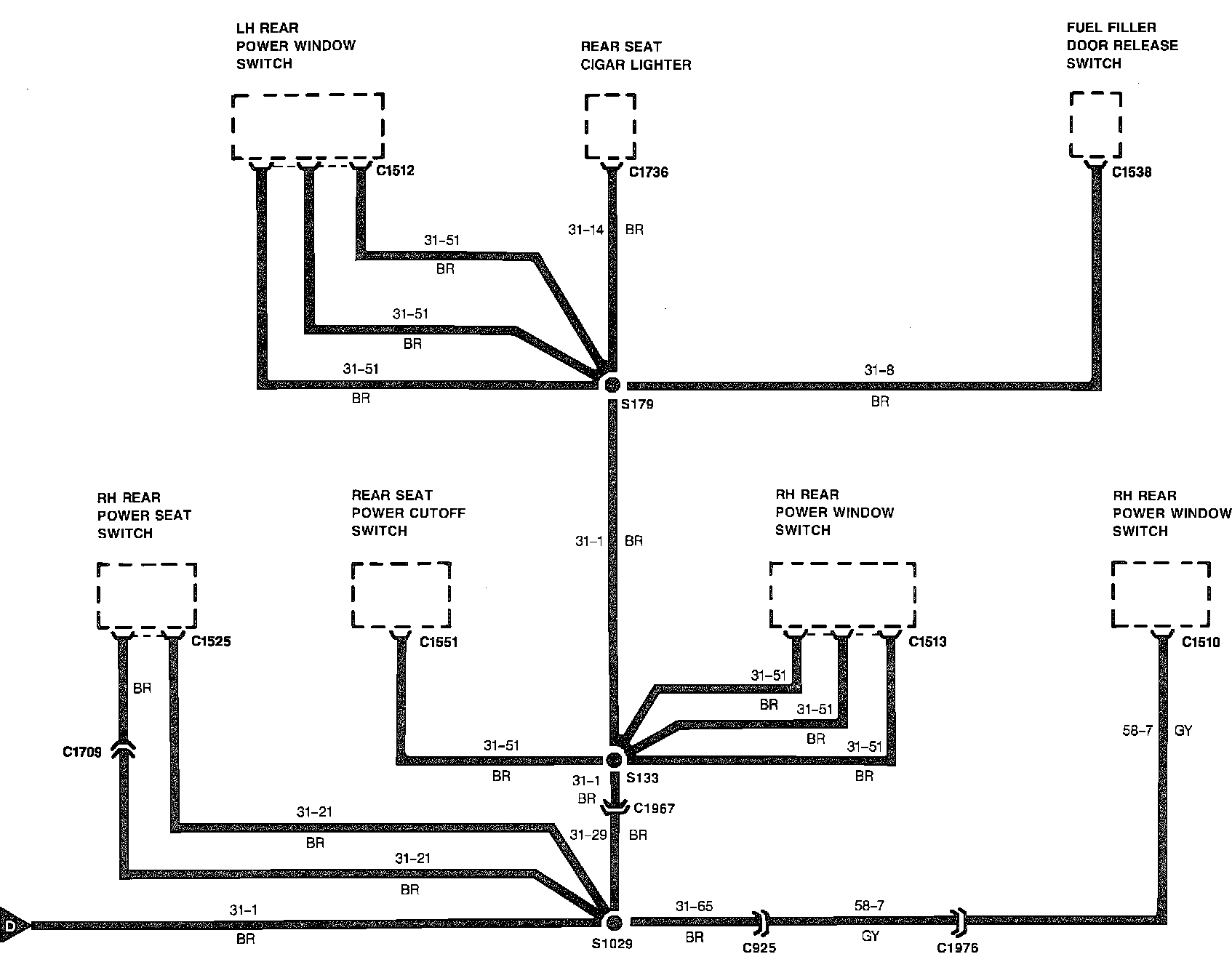

��_F��_FGround Distribution Wiring Circuit G1005:

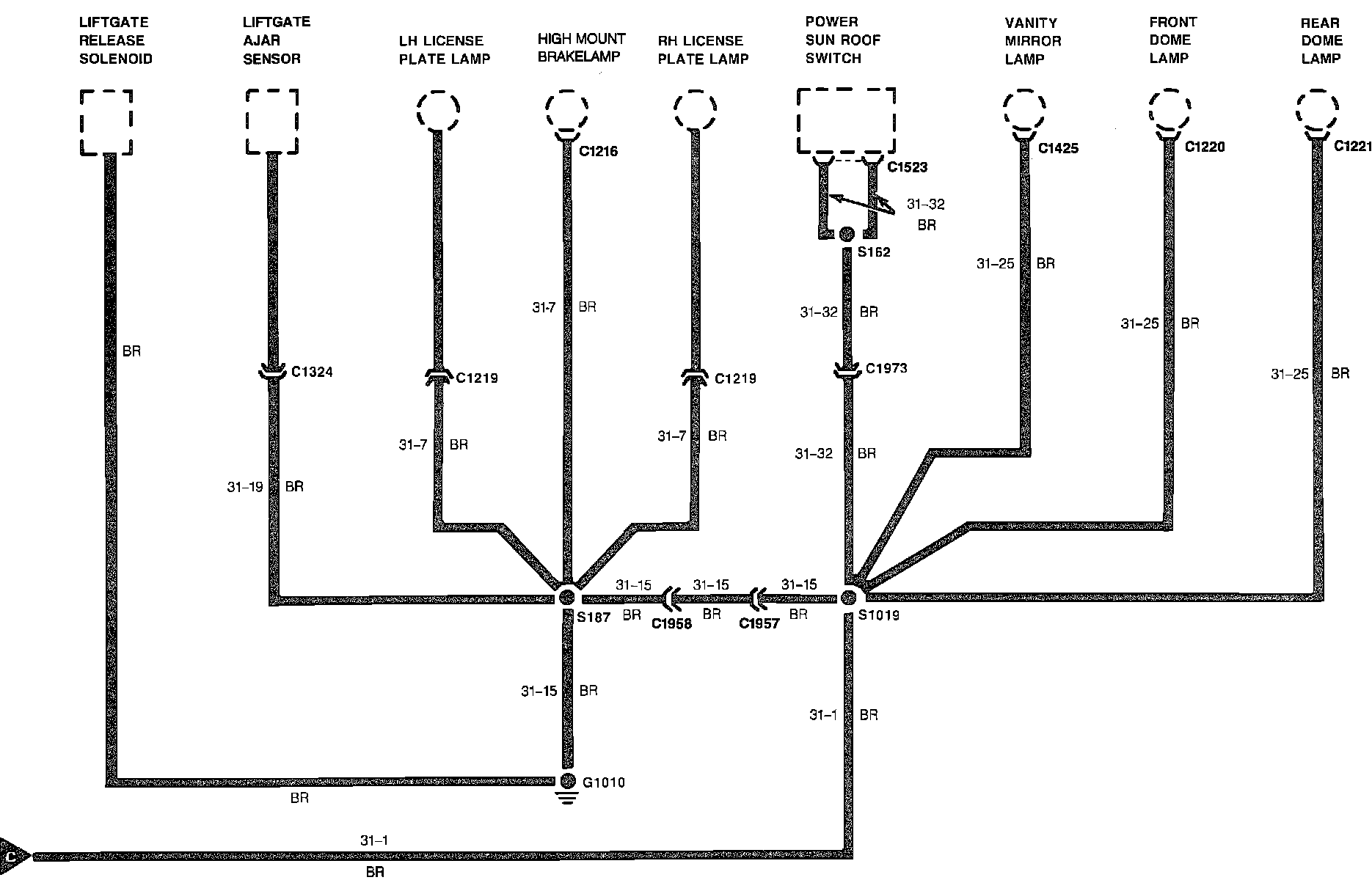

Ground Distribution Wiring Circuit G1005:

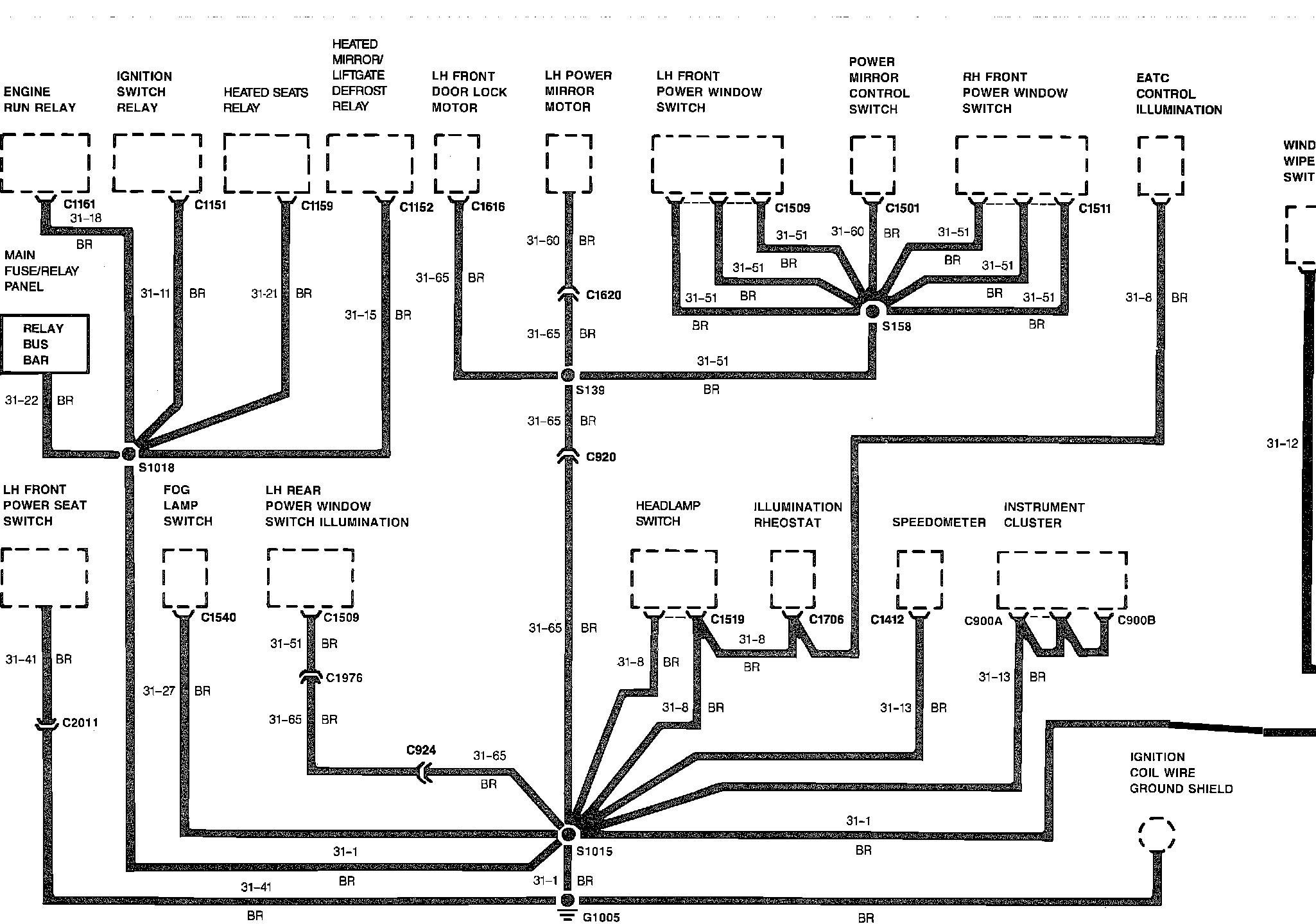

Ground Distribution Wiring Circuit G1005:
