Home >> Mercury >> 1989 >> Merkur Scorpio V6-179 2.9L >> Repair and Diagnosis >> Starting and Charging >> Charging System >> Alternator >> Testing and Inspection >> Tests A7-A8

Tests A7-A8

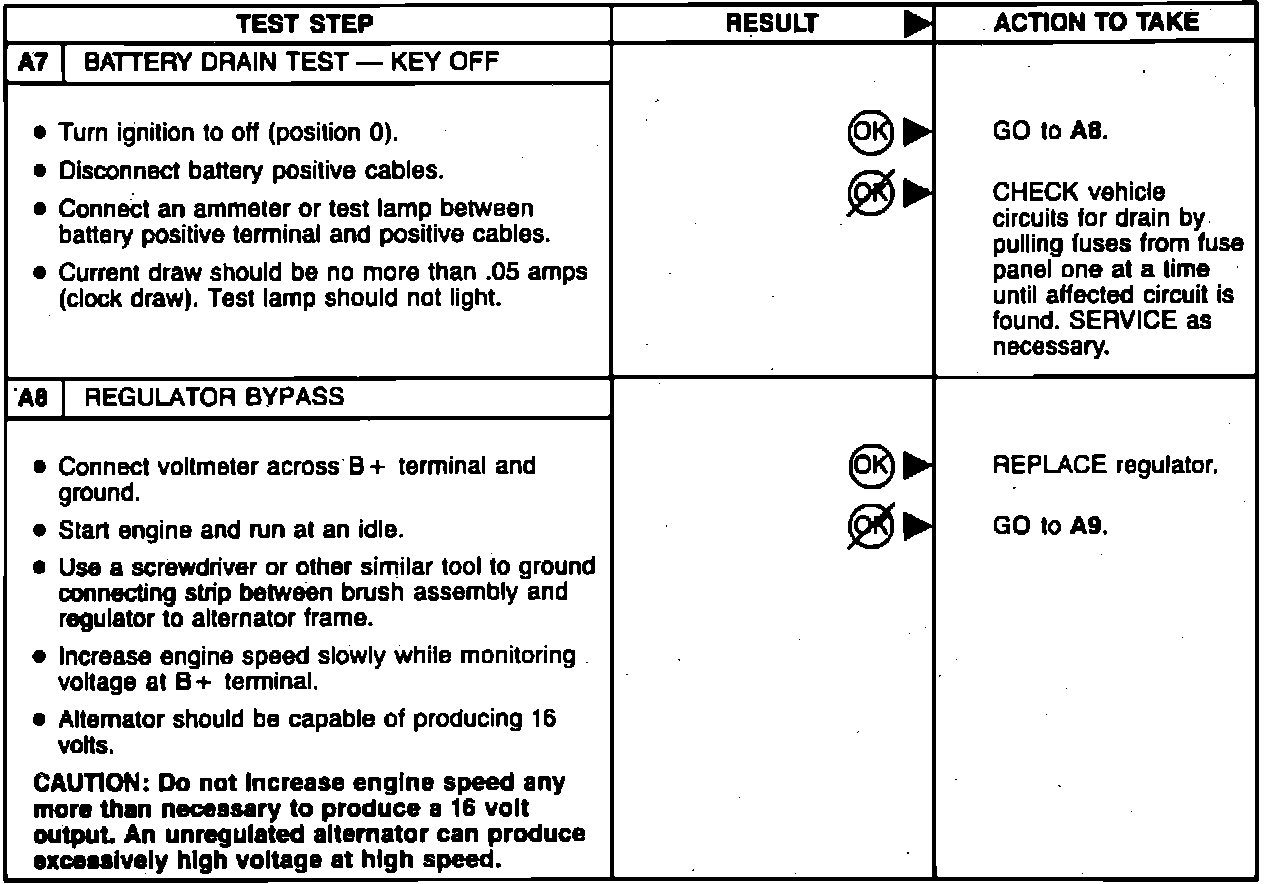

Fig. 2 Alternator Charging Test (Part 3 Of 5):
