Home >> Mercury >> 1989 >> Merkur Scorpio V6-179 2.9L >> Repair and Diagnosis >> Starting and Charging >> Charging System >> Alternator >> Testing and Inspection >> Tests A4-A6

Tests A4-A6

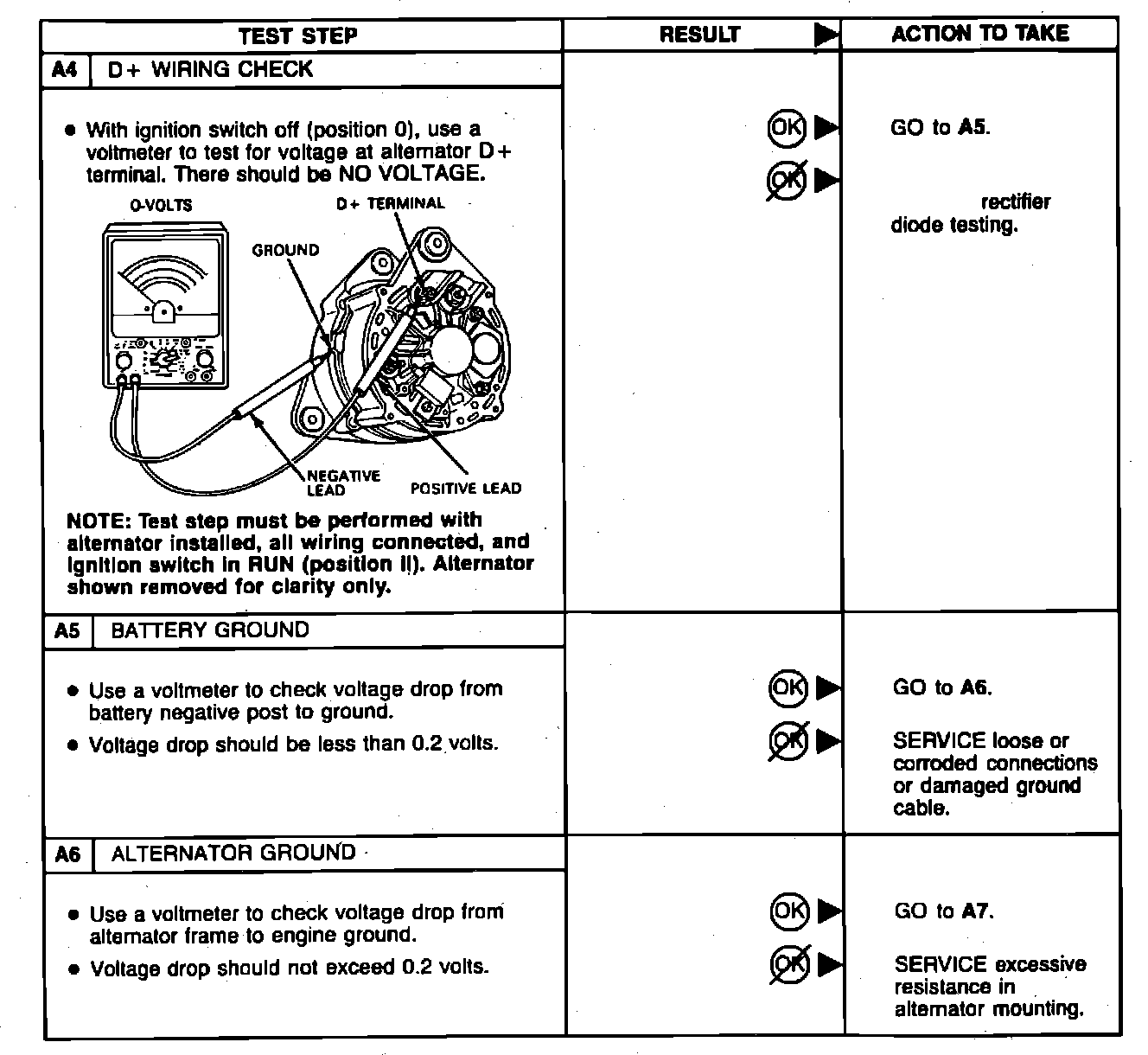

Fig. 2 Alternator Charging Test (Part 2 Of 5):
