Cabin Temperature Sensor / Switch: Service and Repair

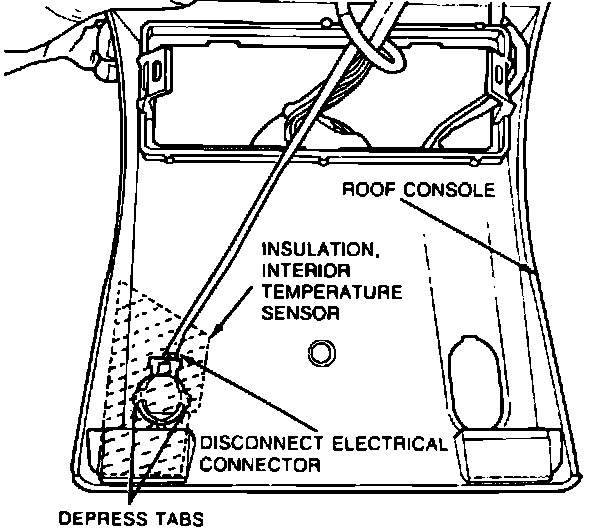

Fig. 9 In-vehicle temperature sensor:

1. Disconnect battery ground cable.
2. Remove roof console and interior temperature sensor insulation.
3. Disconnect sensor electrical connector, Fig. 9.
4. Depress two retaining tabs and remove sensor.
5. Reverse procedure to install.
