Home >> Mercury >> 1989 >> Merkur Scorpio V6-179 2.9L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Headlamp Control Module >> Diagrams >> Electrical Diagrams

Electrical Diagrams

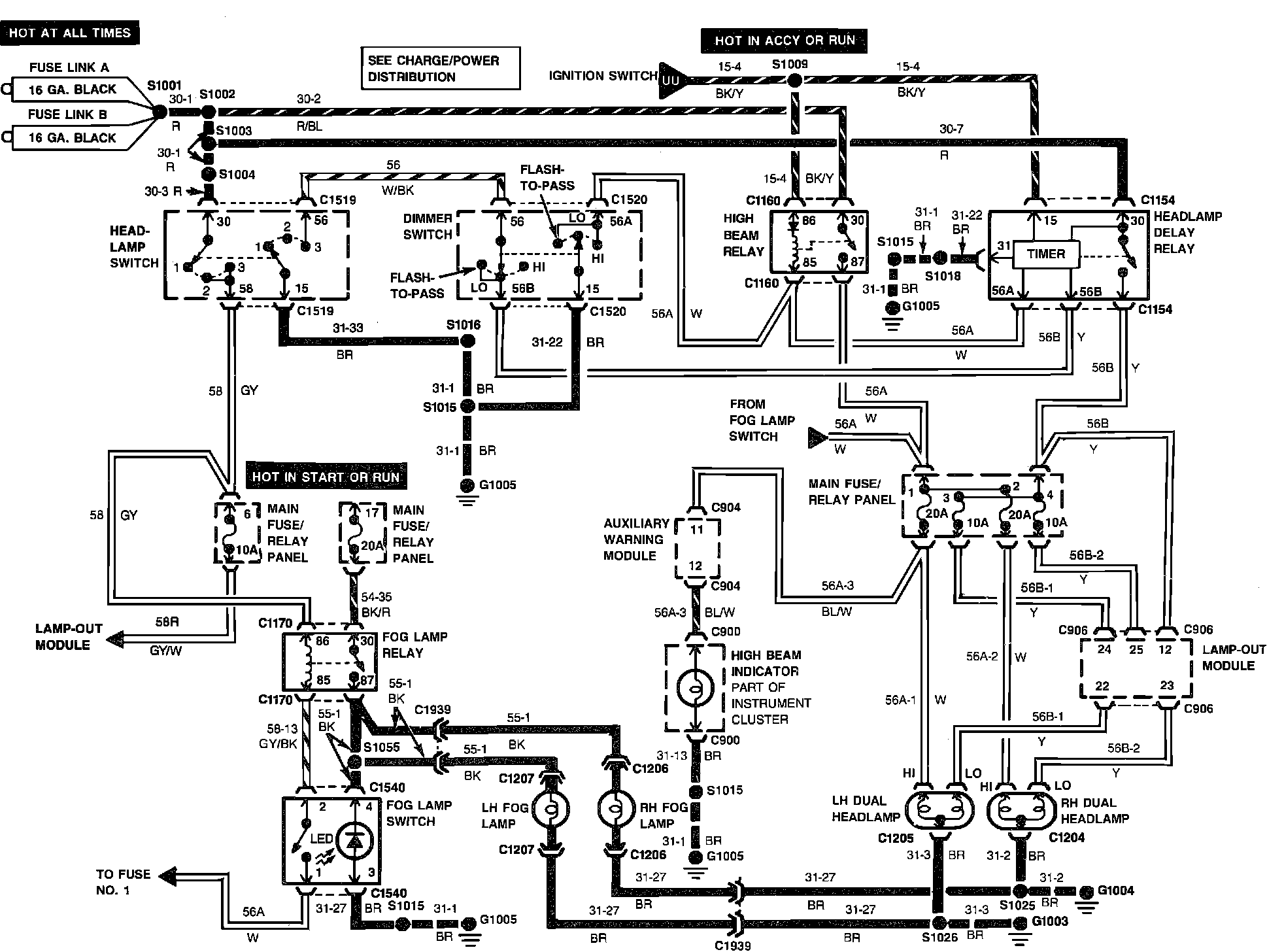

Fog Lamps & Headlamps Wiring Circuit:
